Ships within 25 days
View
View
View
View

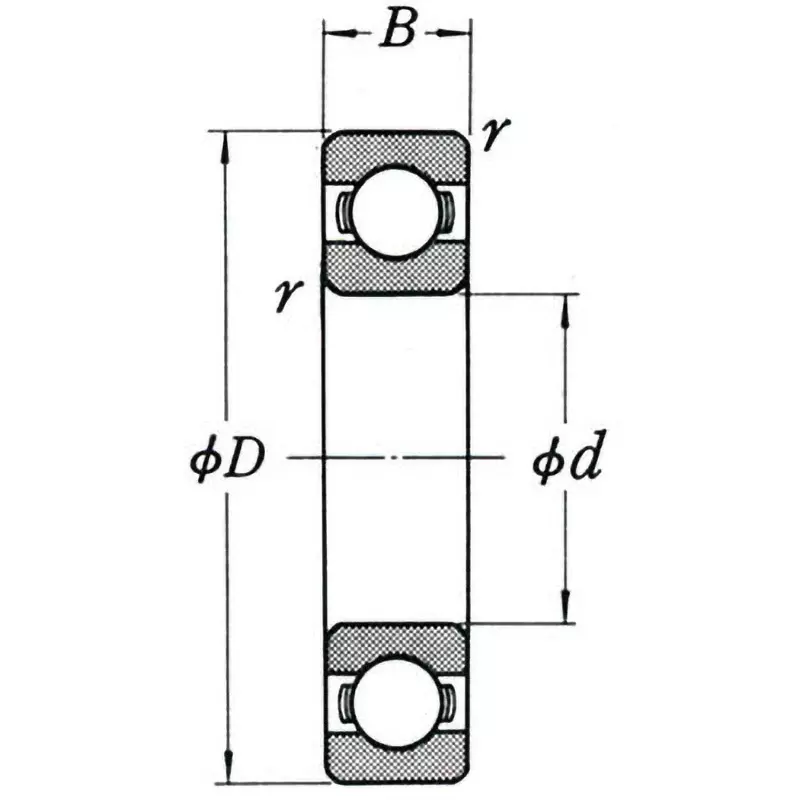

| Type of Product | Deep Groove Ball Bearing 6900 Series Open Type C3 Clearance |
| Material | High Carbon Steel |
| Model No | 6911C3 |
| Country of Origin | Japan |
Type of Product |
Deep Groove Ball Bearing 6900 Series Open Type C3 Clearance |
Material |
High Carbon Steel |
Model No |
6911C3 |
Country of Origin |
Japan |
Mass (g) |
189 |
Outer Diameter D (Φmm) |
80 |
Width B (mm) |
13 |
Monotaro ID |
38372862 |
Mounting Dimension, Maximum ra (mm) |
1 |
Mounting Dimension, Maximum Da (Φmm) |
75 |
Mounting Dimension, Minimum da (mm) |
60 |
Symbol of Internal Clearance Preload |
C3 |
Mounting Dimension, Maximum da (mm) |
61.5 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Inner Diameter (mm) |
55 |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
8000 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
9500 |
Nominal No. |
6911 |
Dimension R |
(Minimum) 1 mm |
