| Type of Product | Deep Groove Ball Bearing 6200 Series Open Type C3 Clearance |
| Material | High Carbon Steel |
| Model No | 6200C3 |
| Country of Origin | Japan |
Type of Product |
Deep Groove Ball Bearing 6200 Series Open Type C3 Clearance |
Material |
High Carbon Steel |
Model No |
6200C3 |
Country of Origin |
Japan |
Mass (g) |
32 |

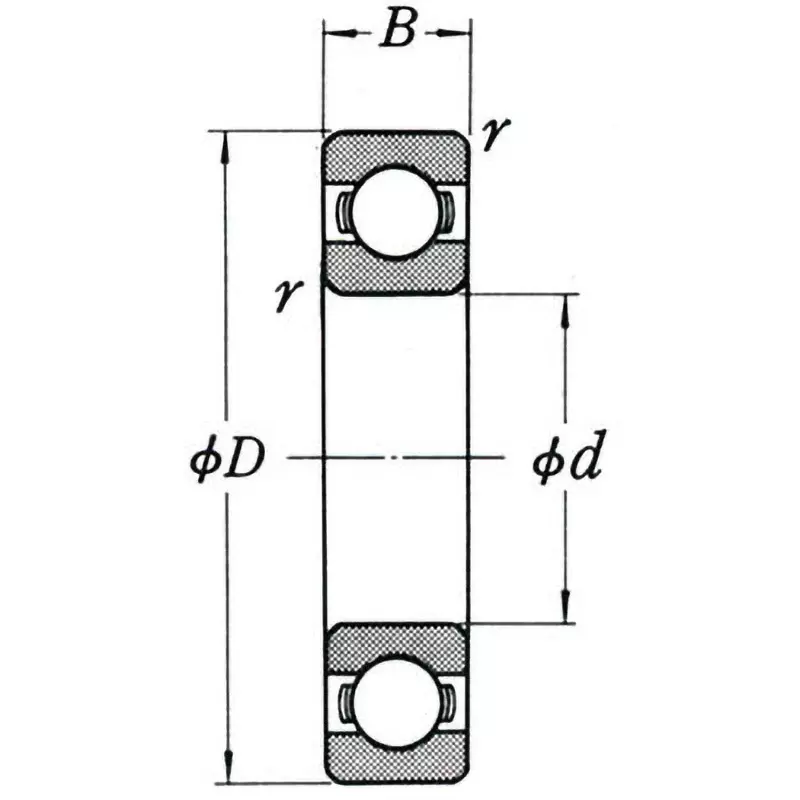

Outer Diameter D (Φmm) |
30 |
Width B (mm) |
9 |
Monotaro ID |
38364557 |
Mounting Dimension, Maximum ra (mm) |
0.6 |
Mounting Dimension, Maximum Da (Φmm) |
26 |
Mounting Dimension, Minimum da (mm) |
14 |
Symbol of Internal Clearance Preload |
C3 |
Mounting Dimension, Maximum da (mm) |
16 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Inner Diameter (mm) |
10 |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
24000 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
30000 |
Nominal No. |
6200 |
Dimension R |
(Minimum) 0.6 mm |
