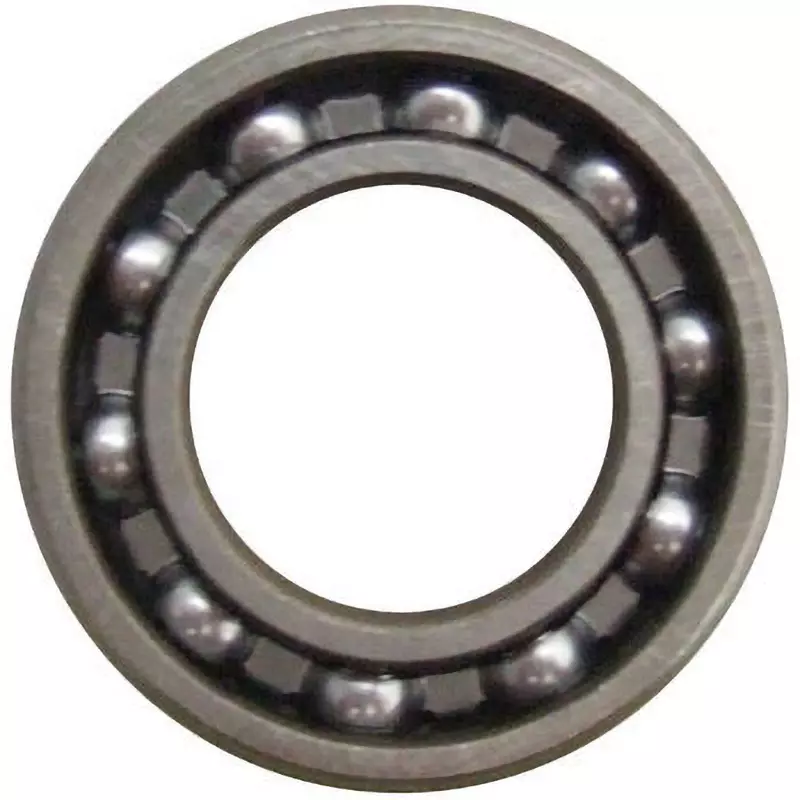

| Type of Product | Single Row Deep Groove Ball Bearing 6300 Series Open Type |
| Material | High Carbon Steel |
| Model No | 6317 |
| Country of Origin | Japan |
Type of Product |
Single Row Deep Groove Ball Bearing 6300 Series Open Type |
Material |
High Carbon Steel |
Model No |
6317 |
Country of Origin |
Japan |
Mass (g) |
4280 |
Load direction |
Radial |
Outer ring type |
Flat |
No. of Track Trains |
Single row |
Shield Shape |
Open type |
Race ring shape |
Deep Groove Ball Bearings |

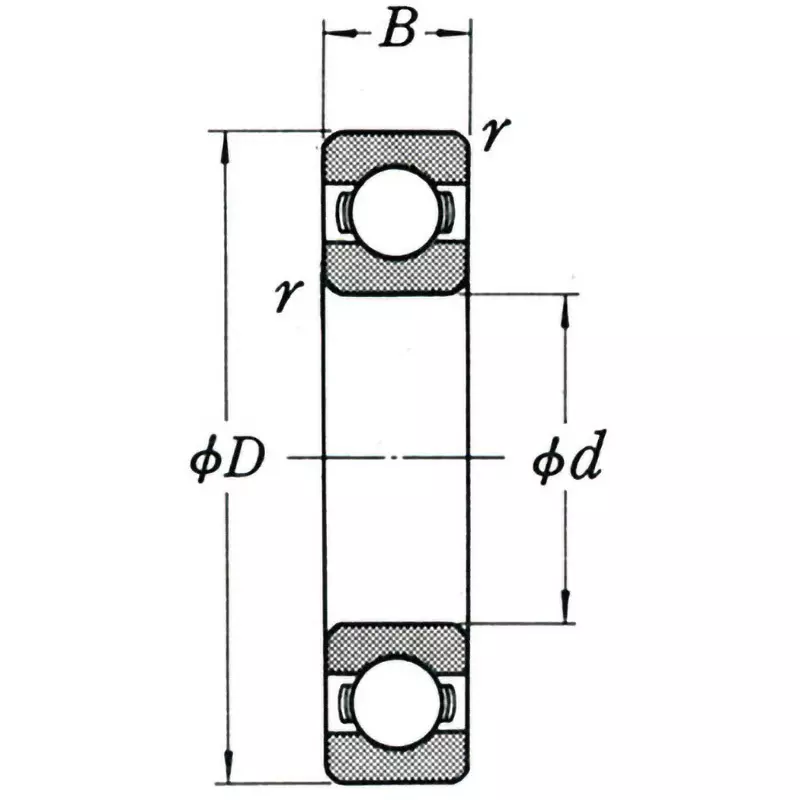

Outer Diameter D (Φmm) |
180 |
Rolling element material |
High Carbon Chromium Bearing Steel |
JIS grade |
0 |
Width B (mm) |
41 |
Monotaro ID |
7020571 |
Basic load rating Cr (N) |
133000 |
Coefficient |
13.3 |
Basic load rating Cor (N) |
97000 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Inner Diameter (mm) |
85 |
Chamfer Dimension r (mm) |
3 (minimum) |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
3800 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
4500 |
Bearing Number |
6300 |
