| Type of Product | Deep Groove Ball Bearings 6200 Series Non-Contact Seal Type With Retaining Ring (LLBNR) |
| Material | High Carbon Steel |
| Model No | 6207LLBNR |
| Country of Origin | Japan |
Type of Product |
Deep Groove Ball Bearings 6200 Series Non-Contact Seal Type With Retaining Ring (LLBNR) |
Material |
High Carbon Steel |
Model No |
6207LLBNR |
Country of Origin |
Japan |
Mass (g) |
288 |
Load direction |
Radial |
Outer ring type |
With Retaining Ring |
No. of Track Trains |
Single row |
Shield Shape |
Non-contact seal type on both sides |
Race ring shape |
Deep Groove Ball Bearings |

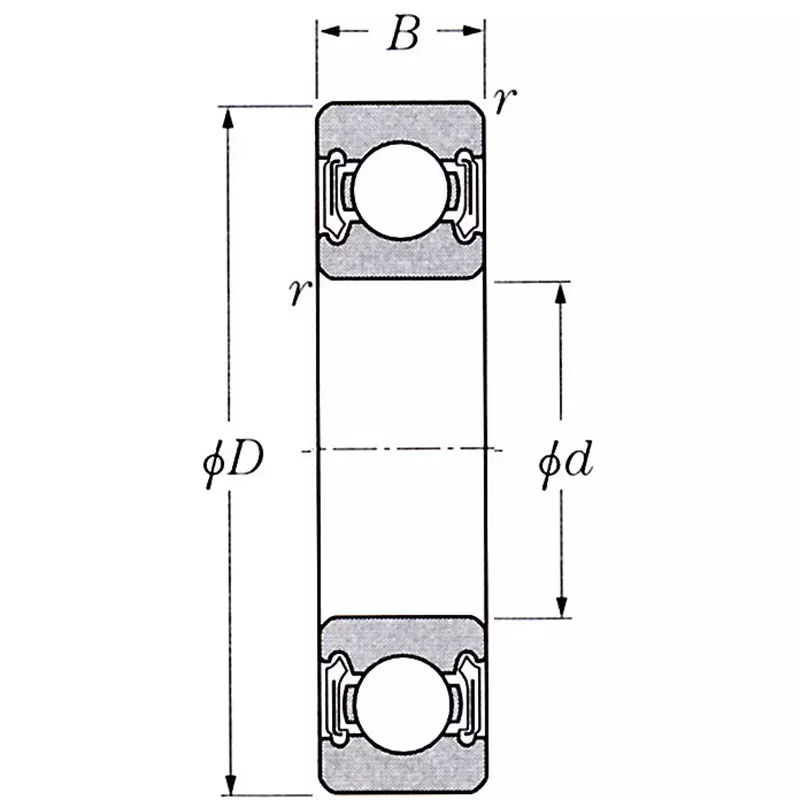

Outer Diameter D (Φmm) |
72 |
Rolling element material |
High Carbon Chromium Bearing Steel |
JIS grade |
0 |
Basic static load rating Cor (N) |
15300 |
Width B (mm) |
17 |
Basic dynamic load rating Cr (N) |
25700 |
Monotaro ID |
34727944 |
Dimensions F (mm) |
1.7 |
RoHS Directive |
Correspondence |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Inner Diameter (mm) |
35 |
Chamfer Dimension r (mm) |
1.1000000000000001 |
Bearing Number |
6200 |
Permissible Speed (min-1) Grease Lubrication |
9800 |
Dimension d2 (Φmm) |
78.599999999999994 |
