| Type of Product | Deep Groove Ball Bearing |
| Material | High Carbon Chrome Bearing Steel |
| Model No | 6310 |
| Weight | 1.07 Kg |
Type of Product |
Deep Groove Ball Bearing |
Material |
High Carbon Chrome Bearing Steel |
Model No |
6310 |
Weight |
1.07 Kg |
Series |
6300 Series |
Limiting Speed (Oil) |
7,500 RPM |
Limiting Speed (Grease) |
6,400 RPM |
Bearing Type |
Single Row Deep Groove Ball Bearing |
Bore Type |
Round |
Cage Type |
Pressed Cage |
Width (B) |
27 mm |
Bore Diameter (d) |
50 mm |
Precision |
ISO Class 0 (Normal) |
Country of Origin |
India |
Cage Material |
Steel |
Dynamic Load Rating |
62.0 kN |
Static Load Rating |
38.5 kN |
Ball Material |
Bearing Steel |
Seal Type |
Open |
Operating Temperature Range |
-40 ºC to 120 ºC |
Enclosure |
Open |
Radial Internal Clearance |
CN |
Name of Manufacturer/Packer/Importer |
Mechanical Solutions |
Outside Diameter (D) |
110 mm |
Configuration |
Single Row |
Contact Type |
Radial |

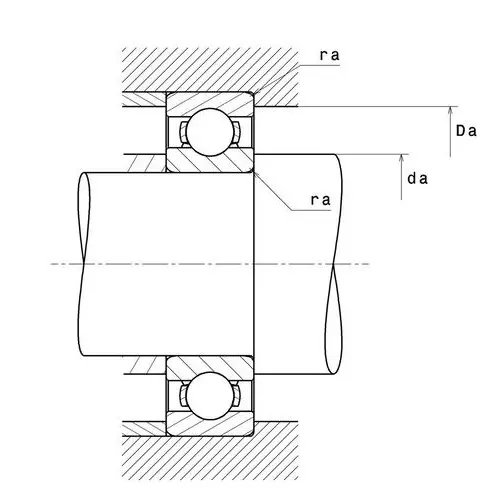

Minimum Shaft Shoulder Diameter (da min) |
59 mm |
Calculation Factor (f₀) |
13.2 |
Maximum Fillet Radius (ra max) |
2 mm |
Minimum Chamfer Radius (r) |
2 mm |
Maximum Shaft Shoulder Diameter (da max) |
68.5 mm |
Maximum Housing Shoulder Diameter (Da max) |
101 mm |
Rolling Element |
Ball |
