Ships within 25 days
View
View
View
View

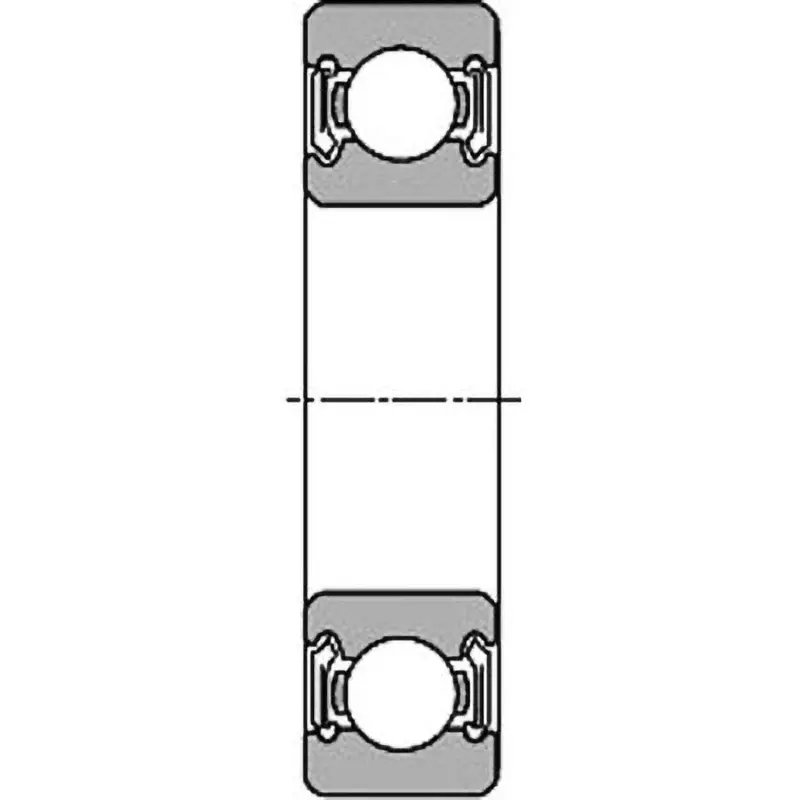

| Type of Product | Deep Groove Ball Bearings 6300 Series LLB C3 / 5K |
| Material | High Carbon Steel |
| Model No | 6307LLBC3/5K |
| Country of Origin | Japan |
Type of Product |
Deep Groove Ball Bearings 6300 Series LLB C3 / 5K |
Material |
High Carbon Steel |
Model No |
6307LLBC3/5K |
Country of Origin |
Japan |
Mass (g) |
457 |
Load direction |
Radial |
Outer ring type |
Flat |
No. of Track Trains |
Single row |
Shield Shape |
Non-contact seal type on both sides |
Race ring shape |
Deep Groove Ball Bearings |
Outer Diameter D (Φmm) |
80 |
Rolling element material |
High Carbon Chromium Bearing Steel |
JIS grade |
0 |
Basic static load rating Cor (N) |
19100 |
Width B (mm) |
21 |
Basic dynamic load rating Cr (N) |
33500 |
Monotaro ID |
8795157 |
Symbol of Internal Clearance Preload |
C3 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Inner Diameter (mm) |
35 |
Chamfer Dimension r (mm) |
1.5 |
Bearing Number |
6300 |
Permissible Speed (min-1) Grease Lubrication |
8800 |
