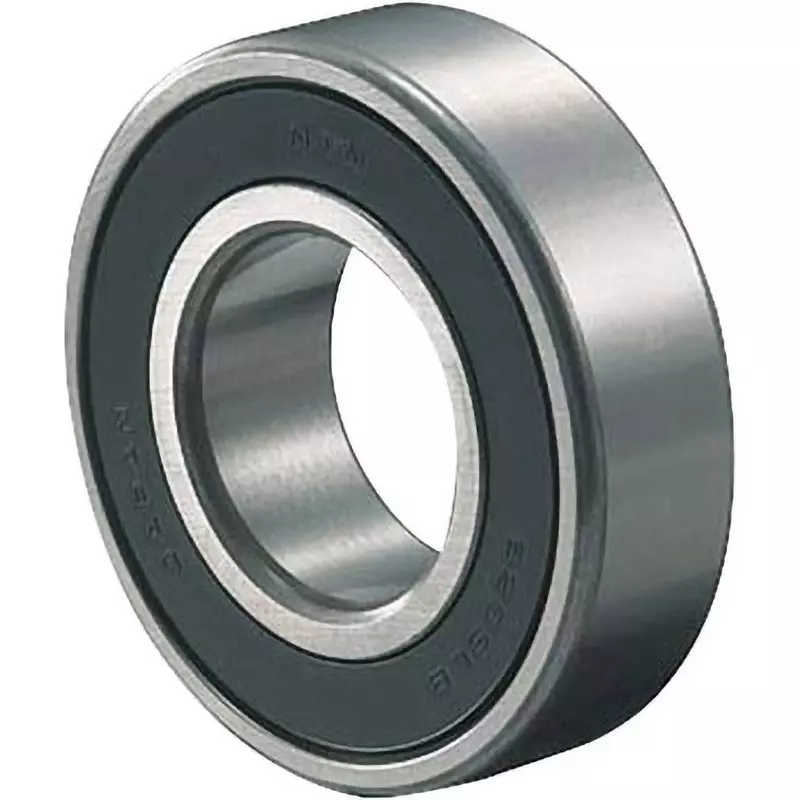

| Type of Product | Deep Groove Ball Bearings Series 6000 Non-Contact Seal Type (LLB) C3 Clearance |
| Material | High Carbon Steel |
| Model No | 6016LLBC3 |
| Country of Origin | Japan |
Type of Product |
Deep Groove Ball Bearings Series 6000 Non-Contact Seal Type (LLB) C3 Clearance |
Material |
High Carbon Steel |
Model No |
6016LLBC3 |
Country of Origin |
Japan |
Load direction |
Radial |
Outer ring type |
Flat |
No. of Track Trains |
Single row |
Shield Shape |
Non-contact seal type on both sides |
Race ring shape |
Deep Groove Ball Bearings |

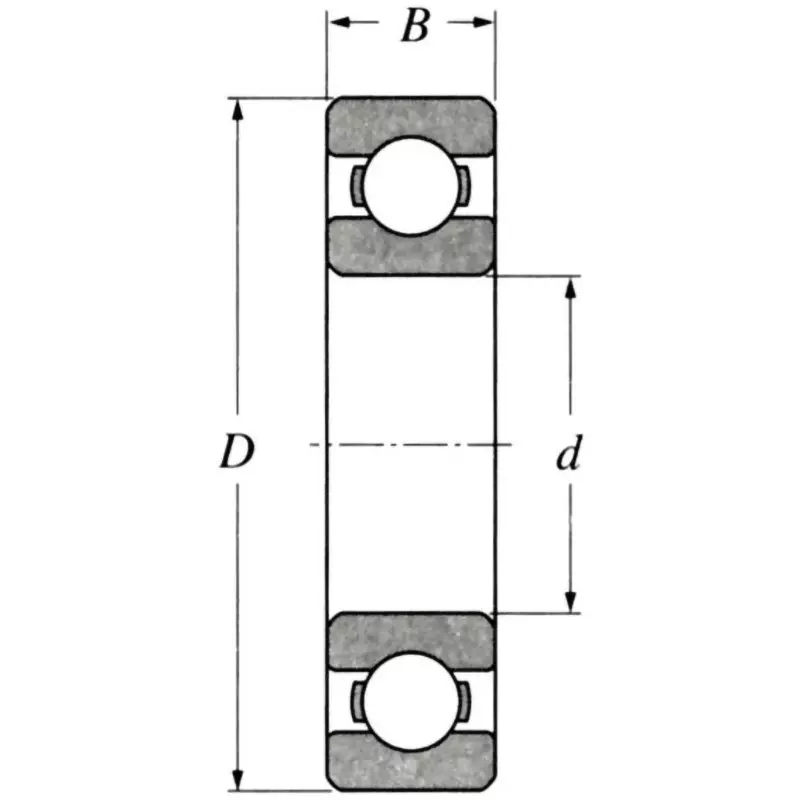

Outer Diameter D (Φmm) |
125 |
Rolling element material |
High Carbon Chromium Bearing Steel |
JIS grade |
0 |
Basic static load rating Cor (N) |
40000 |
Width B (mm) |
22 |
Basic dynamic load rating Cr (N) |
47500 |
Monotaro ID |
34729274 |
Symbol of Internal Clearance Preload |
C3 |
Reference mass (g) |
854 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Inner Diameter (mm) |
80 |
Bearing Number |
6000 |
Permissible Speed (min-1) Grease Lubrication |
5300 |
Chamfer Dimension rs (mm) |
1.1000000000000001 |
