| Type of Product | Single Row Deep Groove Ball Bearing |
| Material | High Carbon Chromium Bearing Steel |

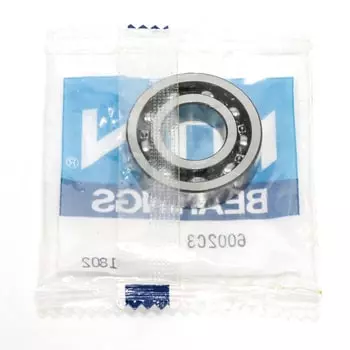

| Model No | 6002C3 |
| Weight | 30 g |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Single Row Deep Groove Ball Bearing |
Material |
High Carbon Chromium Bearing Steel |
Model No |
6002C3 |
Weight |
30 g |
Series |
6000 Series Open Type C3 Clearance |
Width |
9 mm |
Inner Diameter |
15 mm |
Outer Diameter |
32 mm |
Country of Origin |
Japan |
Oil Limiting Speed (RPM) |
26000 |
Grease Limiting Speed (RPM) |
22000 |
Load direction |
radial |
Outer ring type |
flat |
No. of Track Trains |
Single row |
Shield Shape |
Open type |
Race ring shape |
Deep groove ball bearings |
Rolling element material |
High carbon chromium bearing steel |
JIS grade |
0 |
Basic static load rating Cor (N) |
2830 |
Basic dynamic load rating Cr (N) |
5600 |
Monotaro ID |
34727375 |
Usage For |
Railcar axles, vibrating screens |
Symbol of Internal Clearance Preload |
C3 |
Conditions to Use |
Load and impact load are applied, and interference is large |
Import Country |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corp. |
