| Type of Product | Dial Depth Gauge |
| Model No | DM-264 |
| Country of Origin | Japan |
| Monotaro ID | 7087421 |
Type of Product |
Dial Depth Gauge |
Model No |
DM-264 |
Country of Origin |
Japan |
Monotaro ID |
7087421 |
Measuring Force (N) |
1.4 or less |

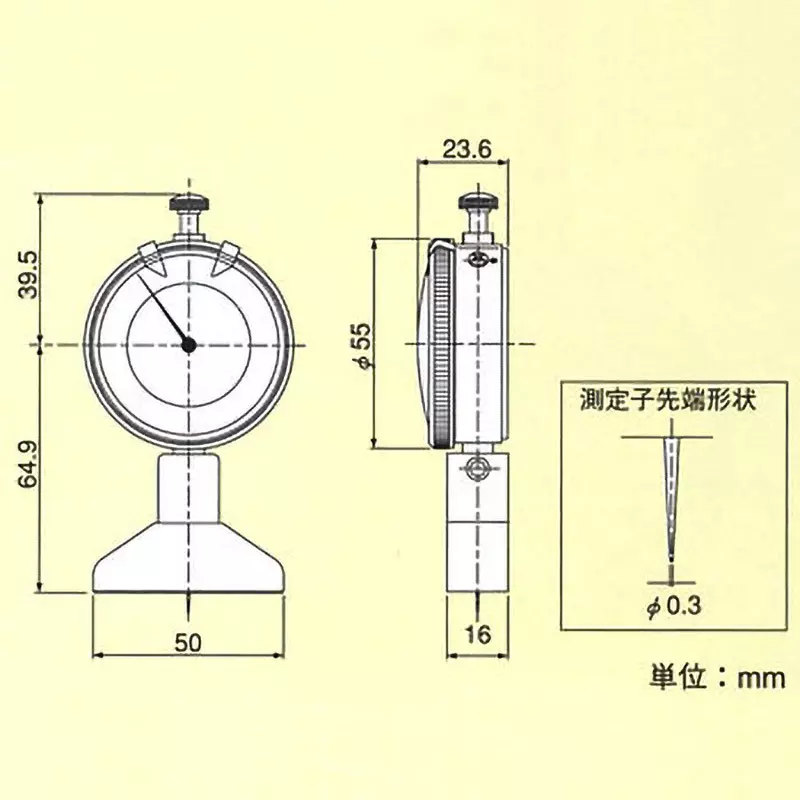

Overall Length (mm) |
104.4 |
Minimum Reading (mm) |
0.01 |
Import Country |
Direct Import from Japan |
Trusco Part No. |
331-1007 |
Measuring Ranges |
5 mm |
Name of Manufacturer/Packer/Importer |
Teclock Co., Ltd. |
Mass (g) |
230 |
Specifications |
Handy small base |
Probe Shape (mm) |
Acicular |
How to Use |
Place the bottom of the base against the measurement origin (zero point) and rotate the outer frame to align it to 0. (The outer frame is fixed in place with a clamp.) Use the hour and minute hands to read how far the contact point protrudes from that position. |
