| Monotaro ID | 68706454 |
| Type of Product | Surface Plate Stand Set |
| Model No | MT2100 |
| Suitable For | Pillar type arm Model number: PH6610 |
Monotaro ID |
68706454 |
Type of Product |
Surface Plate Stand Set |
Model No |
MT2100 |
Suitable For |
Pillar type arm Model number: PH6610 |
Set Contents |
Stone surface plate stand (MT1100) + articulated arm ( mg60103) |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Noga Waters Co., Ltd. |
Specifications |
●Bottom screw D (outer diameter): M8 |

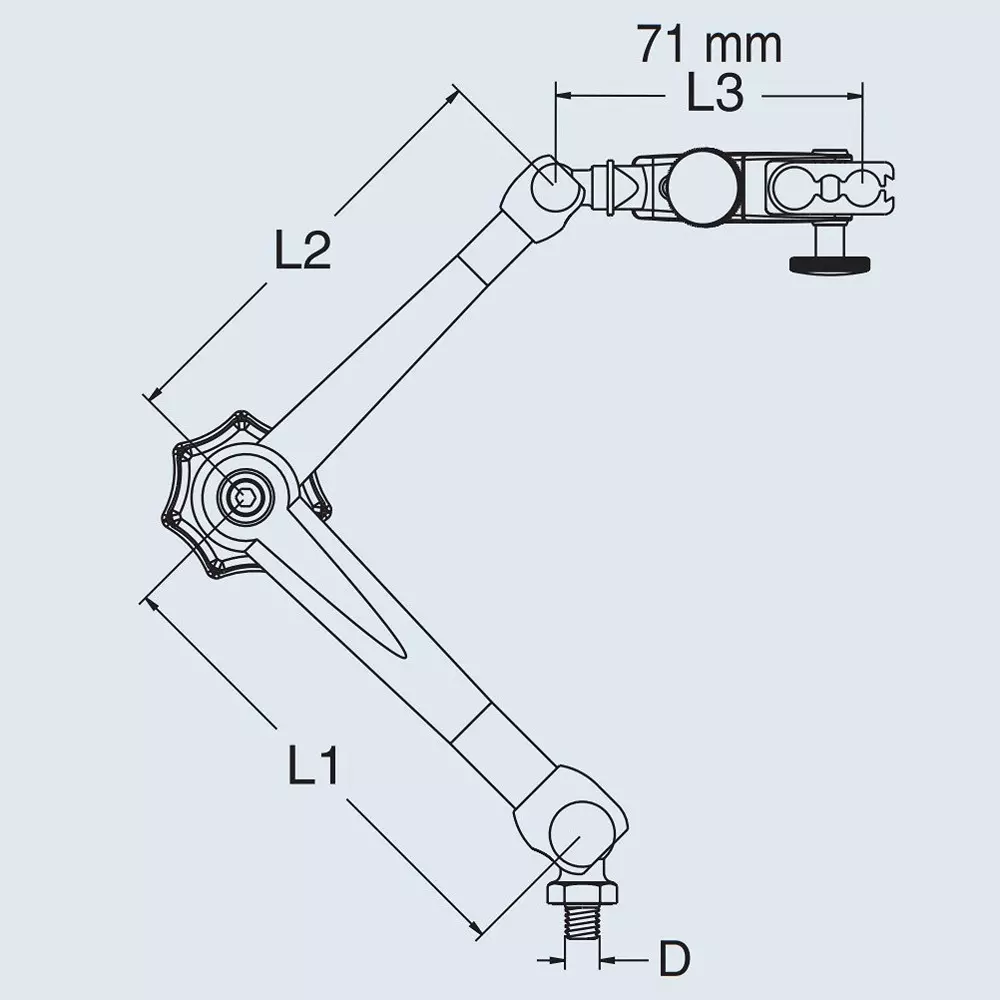

Length L2 (mm) |
Upper arm: 113 |
Length L1 (mm) |
Lower arm: 113 |
Width W (mm) |
150 |
Mass (Kg) |
5.6 |
Overall Length |
Arm overall length L1 + L2 + L3 ( mm): 317 |

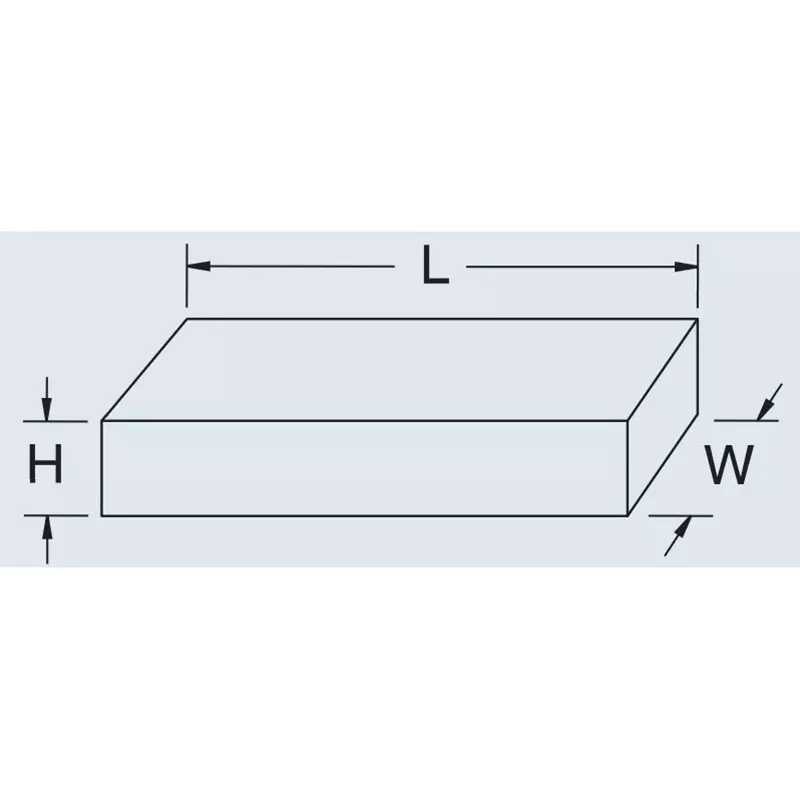

Height H (mm) |
50 |
Length L (mm) |
200 |
Features |
-High precision, excellent stability, and resistance to distortion ensure accuracy. -No rust or corrosion, so maintenance-free. -No deterioration over time, so can be used for many years. -Does not become magnetized. -Flatness: 2μm or less -Complies with DIN876. |
