Ships within 25 days
View
View
View
View
| Monotaro ID | 68706418 |
| Type of Product | Surface Plate Stand Set |
| Model No | MT2000 |
| Suitable For | Pillar type arm Model number: PH6410 |
Monotaro ID |
68706418 |
Type of Product |
Surface Plate Stand Set |
Model No |
MT2000 |
Suitable For |
Pillar type arm Model number: PH6410 |
Set Contents |
Stone surface plate stand (MT1000) + articulated arm (DG60103) |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Noga Waters Co., Ltd. |
Specifications |

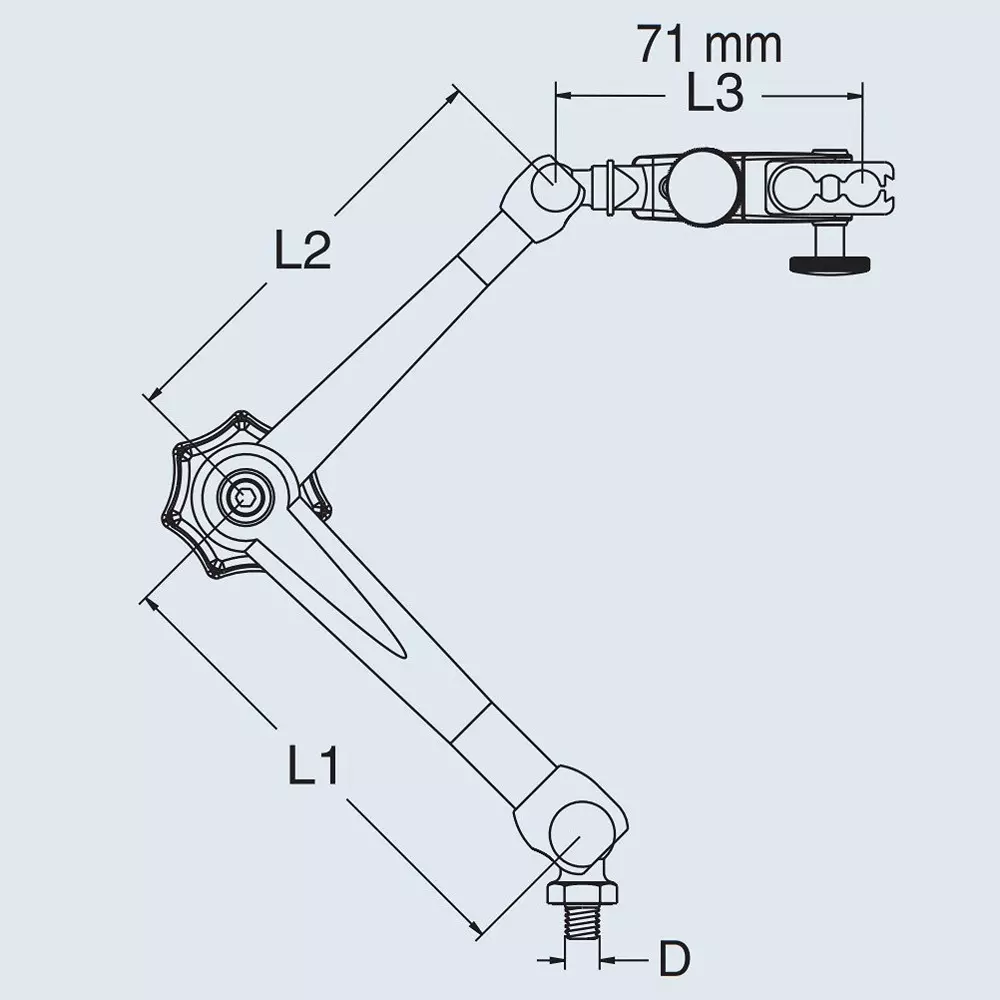

●Bottom screw D (outer diameter): M8 |
Length L2 (mm) |
Upper arm: 101 |
Length L1 (mm) |
Lower arm: 110 |

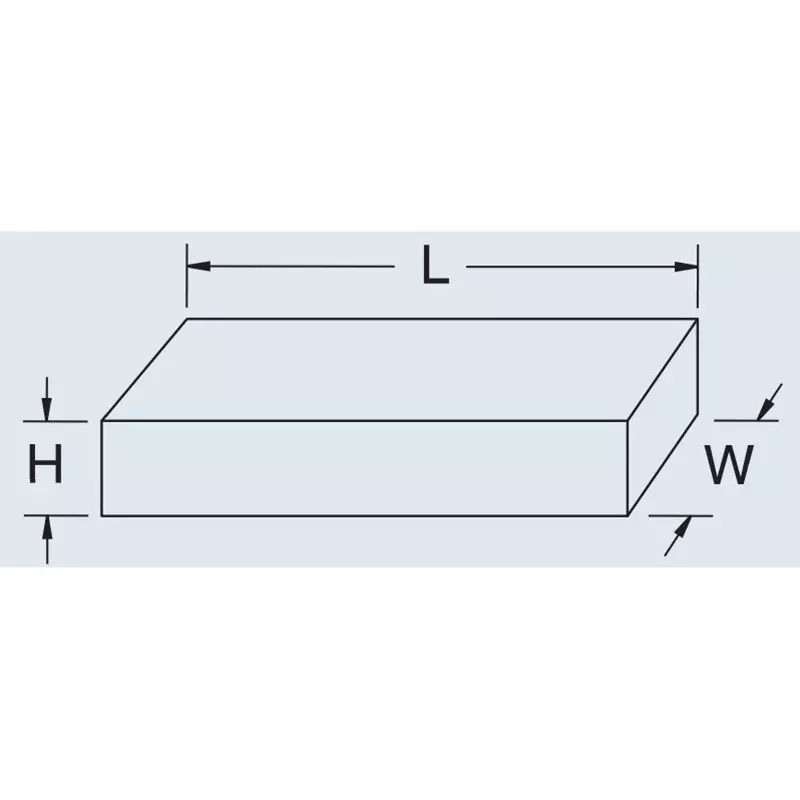

Width W (mm) |
100 |
Mass (Kg) |
2.67 |
Overall Length |
Arm total length L1 + L2 + L3 ( mm): 282 |
Height H (mm) |
50 |
Length L (mm) |
150 |
Features |
-High precision, excellent stability, and resistance to distortion ensure accuracy. -No rust or corrosion, so maintenance-free. -No deterioration over time, so can be used for many years. -Does not become magnetized. -Flatness: 2μm or less -Complies with DIN876. |
