| Model No | ID-F0525NX+06AGL011+IT-007R |

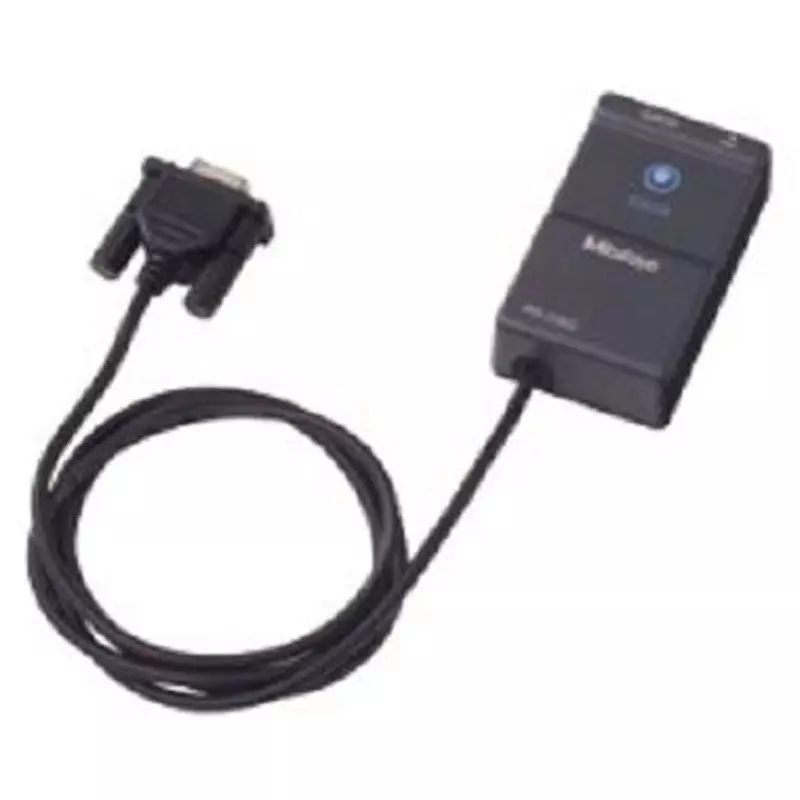

| Type of Product | Digimatic Indicator + Input Tool (RS-232C) Set |
| Monotaro ID | 37762615 |
| Measuring Force (N) | Up to 1.8 |
Model No |
ID-F0525NX+06AGL011+IT-007R |
Type of Product |
Digimatic Indicator + Input Tool (RS-232C) Set |
Monotaro ID |
37762615 |
Measuring Force (N) |
Up to 1.8 |
Position Detection Method |
Capacitive Absolute Linear Encoder |
Protection Class |
IP40 |
Return error (mm) |
【MPEh】0.002 |
Repeatability (mm) |
[MPEe] 0.002 mm |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Mitutoyo Corporation |
Minimum Reading (mm) |
0.0005, 0.001, 0.01 mm |
Stem Diameter (mm) |
8 |
Measuring_Range |
25.4 mm |
Specifications |
[Measurement posture] horizontal horizontal posture |
Pack of |
1 Kit |
Connection to Equipment |
[Measuring head] M2.5×0.45 |
Indication Error for The Entire Measuring Range (mm) |
【MPEe】0.0025 |
Input |
Digimatic d1 (output), Digimatic d2 (output), Digimatic S1 (bidirectional) |
