| Type of Product | Small Dial Gauge |
| Monotaro ID | 26276015 |
| Measuring Force (N) | 0.4-1.5 |
| Repeatability (μm) | ±14 |
Type of Product |
Small Dial Gauge |
Monotaro ID |
26276015 |
Measuring Force (N) |
0.4-1.5 |
Repeatability (μm) |
±14 |

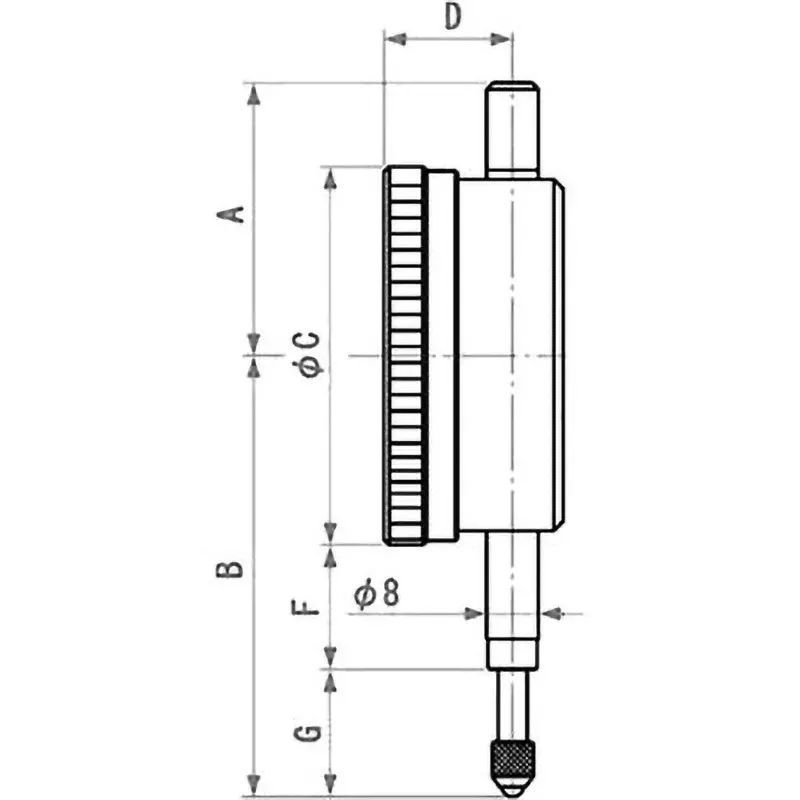

Dimensions D (mm) |
14 |
Dimensions C (mm) |
42 |
Dimensions B (mm) |
47 |
Return Error (μm) |
±3 |
Country of Origin |
CHINA |
Scale Type |
±0 to 50 |
Mass (g) |
100 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Minimum Reading (mm) |
0.01 |
Measuring_Range |
0 to 4 mm |
Specifications |
Flat plate |
Outer Diameter (Φmm) |
42 |
Overall Length (mm) |
79 |
Dimensions H (mm) |
40 |
Dimensions E (mm) |
8 |
Dimensions F (mm) |
14 |
Dimensions g (mm) |
12 |
Dimensions A (mm) |
31 |
