| Model No | 321-123-4 |

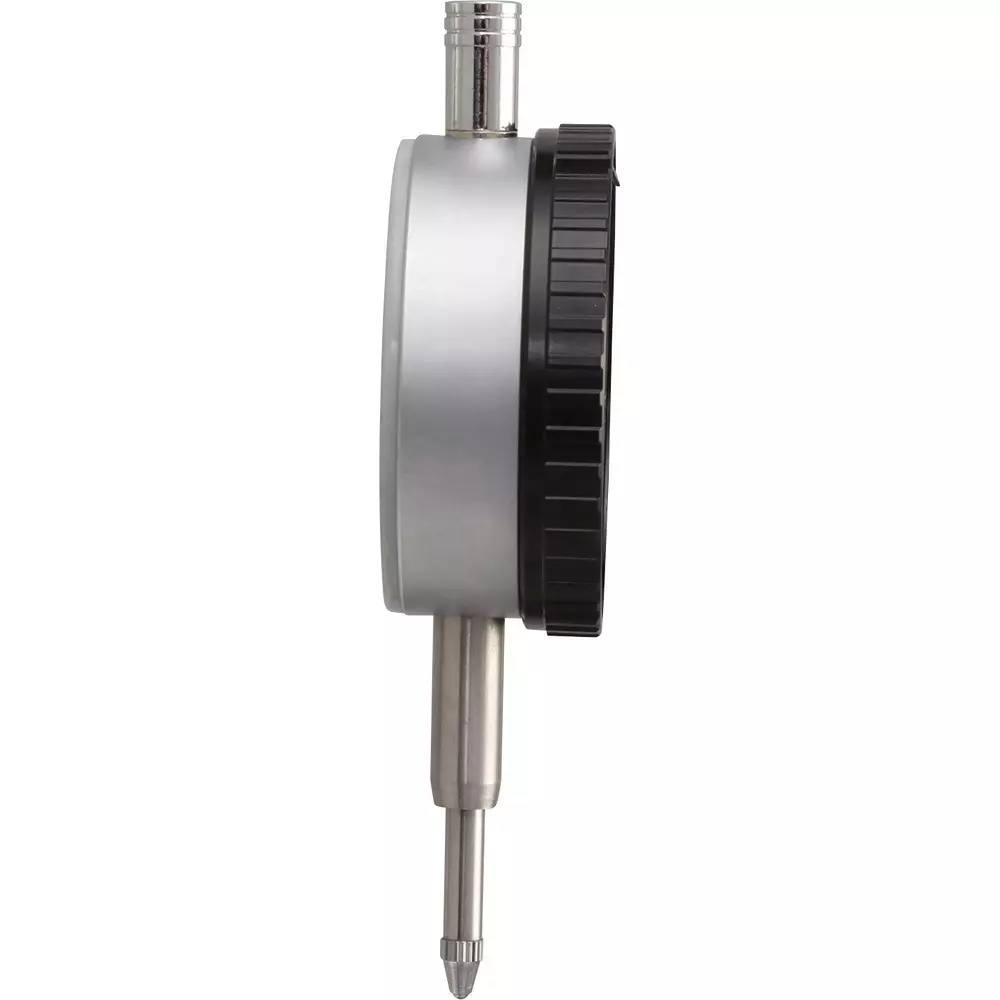

| Type of Product | Dial Gauge |
| Measurement Range (mm) | 0 to 10 |
| Monotaro ID | 52706755 |
Model No |
321-123-4 |
Type of Product |
Dial Gauge |
Measurement Range (mm) |
0 to 10 |
Monotaro ID |
52706755 |
Measuring Force (N) |
1.5 or less |
Stem Diameter |
Φ8 mm |

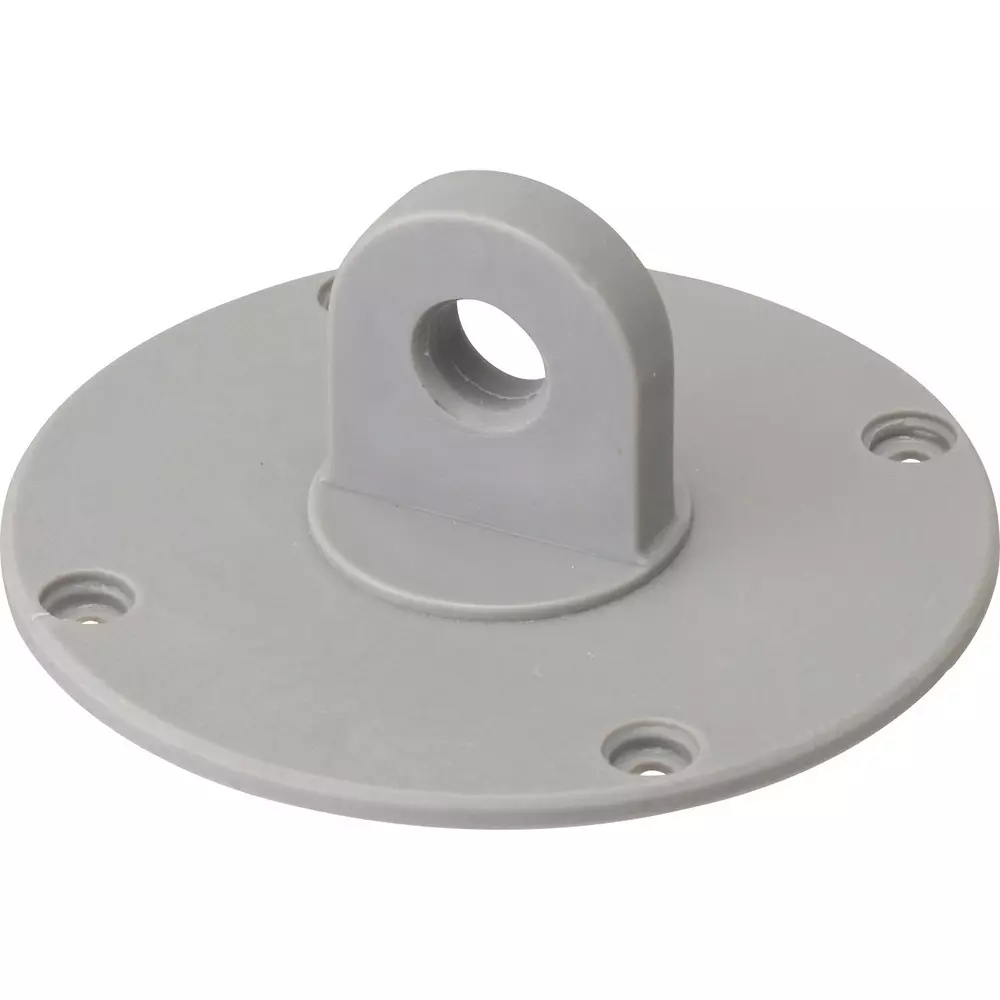

Back Plate Specification |
Flat (back lid with ears included) |
Scale |
±0 to 100 |
Outer Frame Diameter (mm) |
56 |
Operating Temperature Range |
0 to 40℃ |
Repeatability |
3 μm |
Country of Origin |
CHINA |
Return Error |
3 μm |
Mass (g) |
150 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Minimum Reading (mm) |
0.01 |
Overall Length (mm) |
110 |
Contact Diameter |
Φ2.5 mm |
