| Model No | 411-102 |
| Type of Product | Dial Gauge Lever Type |

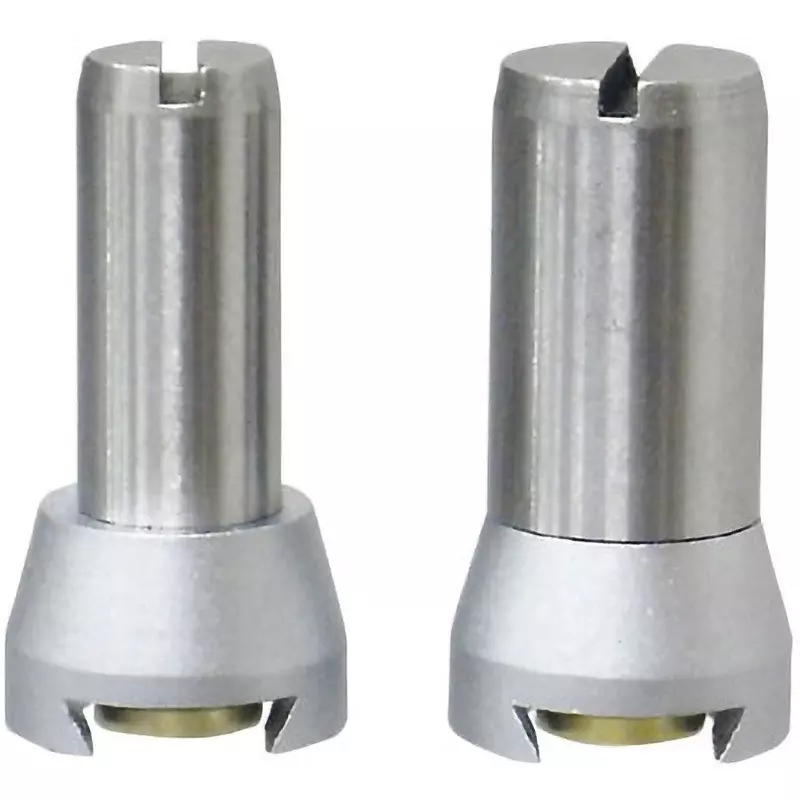

| Included Components | Φ6, Φ8 stem |
| Measurement Range (mm) | 0.8 |
Model No |
411-102 |
Type of Product |
Dial Gauge Lever Type |
Included Components |
Φ6, Φ8 stem |
Measurement Range (mm) |
0.8 |
Wide Range Accuracy (μm) |
13 |
Monotaro ID |
7293395 |
Measuring Force (N) |
0.3 |

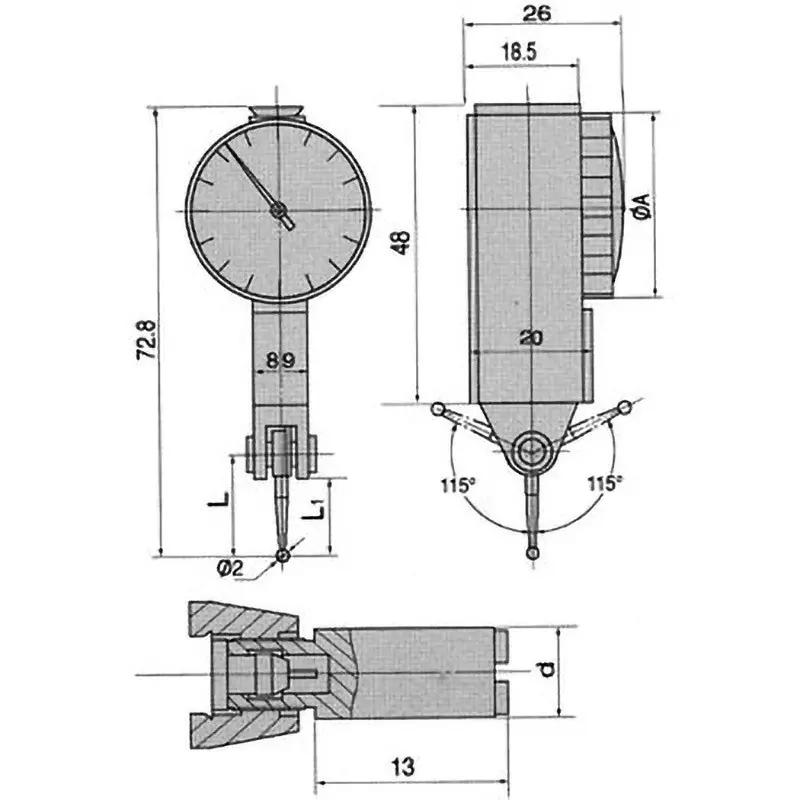

Dimension L (mm) |
16.5 |
Dimension L1 |
12.5 mm |
Repeatability |
3 μm |
Country of Origin |
CHINA |
Scale Type |
0-40-0 |
Return Error |
3 μm |
Mass (g) |
70 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Minimum Reading (mm) |
0.01 |
Outer Diameter (Φmm) |
37.5 |
Overall Length (mm) |
72.8 |
