Ships within 25 days
View
View
View
View
| Model No | 412-402 |
| Type of Product | Dial Gauge Lever Type |
| Included Components | Φ6, Φ8 stem |
| Measurement Range (mm) | 0.2 |
Model No |
412-402 |
Type of Product |
Dial Gauge Lever Type |
Included Components |
Φ6, Φ8 stem |
Measurement Range (mm) |
0.2 |
Wide Range Accuracy (μm) |
6 |
Monotaro ID |
24799233 |
Measuring Force (N) |
0.3 |

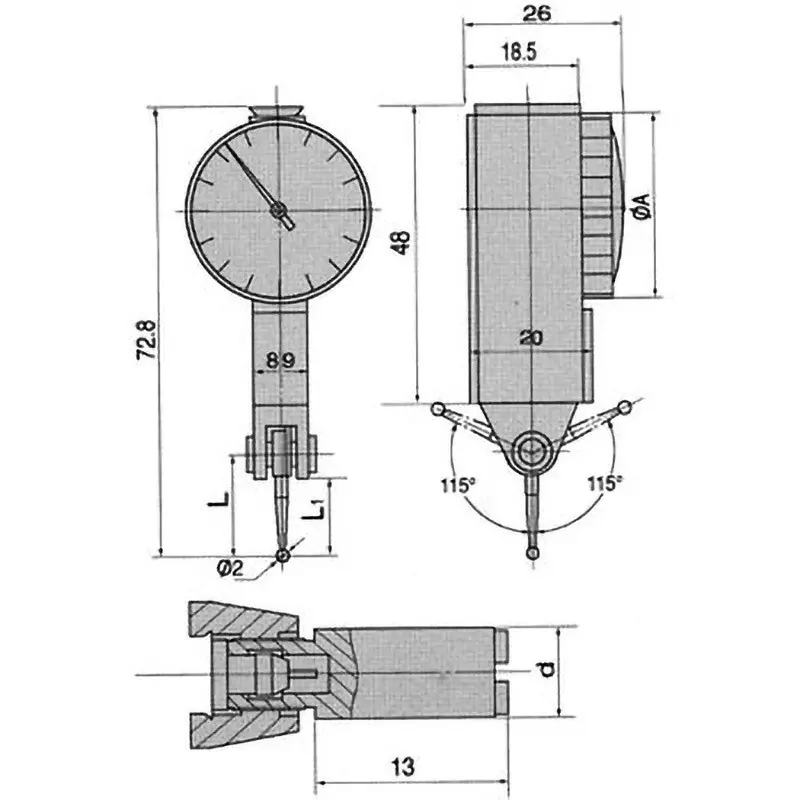

Dimension L (mm) |
16 |
Dimension L1 |
12 mm |
Repeatability |
1 μm |
Country of Origin |
CHINA |
Scale Type |
0-100-0 |
Return Error |
2 μm |
Mass (g) |
72 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Minimum Reading (mm) |
2E-3 |
Outer Diameter (Φmm) |
37.5 |
Overall Length (mm) |
72.8 |
Looking for bulk pricing or different specifications?
