| Type of Product | Dial Gauge Long Stroke Type |
| Monotaro ID | 2952898 |
| Measuring Force (N) | 2.0 or less |
| Repeatability (μm) | 5 |
Type of Product |
Dial Gauge Long Stroke Type |
Monotaro ID |
2952898 |
Measuring Force (N) |
2.0 or less |
Repeatability (μm) |
5 |

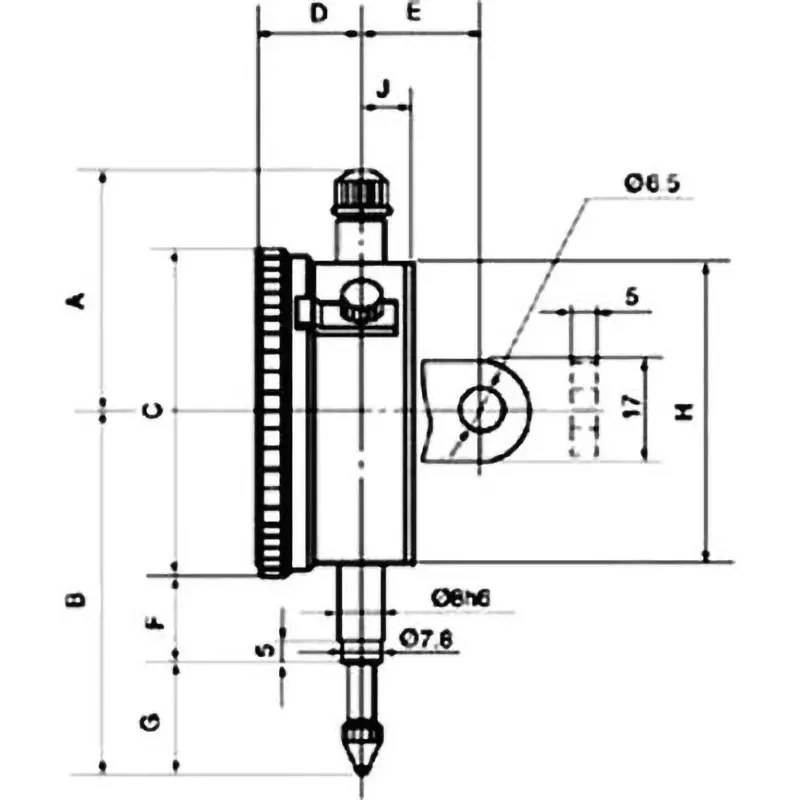

Dimensions D (mm) |
16.3 |
Dimensions C (mm) |
58 |
Dimensions B (mm) |
80.5 |
Return Error (μm) |
7 |
Country of Origin |
CHINA |
Scale Type |
±0-100 |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Minimum Reading (mm) |
0.01 |
Stem Diameter (mm) |
8 |
Measuring_Range |
0 to 20 mm |
Outer Diameter (Φmm) |
57 |
Overall Length (mm) |
115 |
Dimensions H (mm) |
53.5 |
Dimensions E (mm) |
19.399999999999999 |
Dimensions F (mm) |
17.5 |
Dimension J (mm) |
8.4 |
Dimensions g (mm) |
34 |
Dimensions A (mm) |
37.5 |
