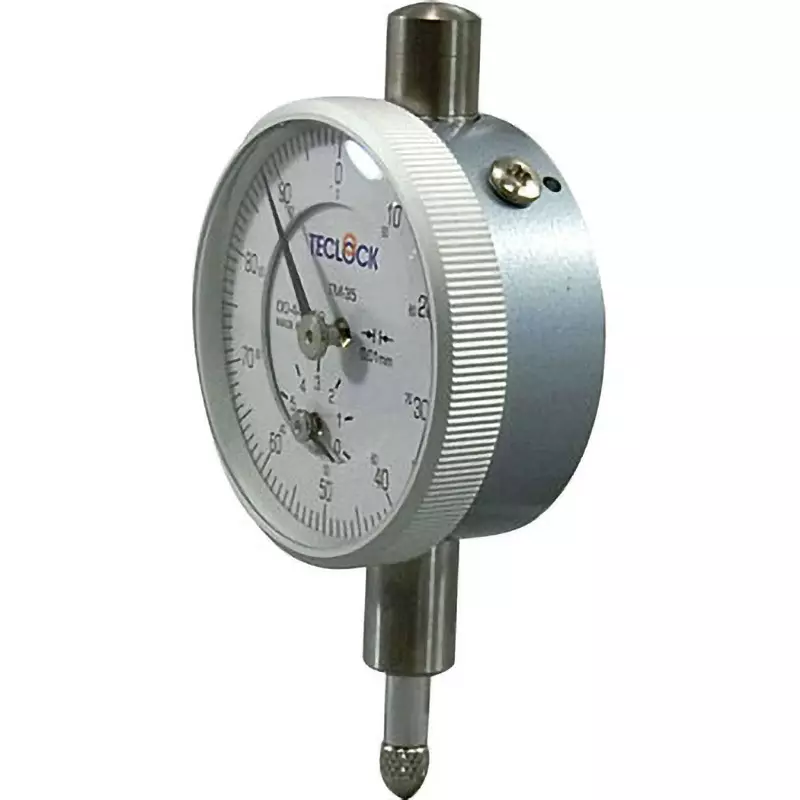

| Model No | TM-35F |
| Type of Product | Small Dial Gauge |
| Monotaro ID | 36931352 |
| Measuring Force (N) | 1.3 or less |
Model No |
TM-35F |
Type of Product |
Small Dial Gauge |
Monotaro ID |
36931352 |
Measuring Force (N) |
1.3 or less |
Repeatability (μm) |
5 |
RoHS Directive |
Correspondence |
Type |
Small standard type with outer frame Φ39 mm |
Back Plate Specification |
Flat back lid |
Return Error (μm) |
4 |
Indication Error (Total Measurement Range) (μm) |
18 |
Indication Error (1 rotation) (μm) |
14 |
Indication Error (1/2 rotation) (μm) |
12 |
Country of Origin |
Japan |
Scale Type |
0-50-100 |
Trusco Part No. |
303-0890 |
Mass (g) |
65 |
Import Country |
Direct Import from Japan |
Measuring Ranges |
5 mm |
Name of Manufacturer/Packer/Importer |
Teclock Co., Ltd. |
Minimum Reading (mm) |
0.01 |
Stem Diameter (mm) |
Φ8 |
Indication Error (μm) |
8 μm at 1/10 Rotation |
Dimension H (Φmm) |
5 |
Dimension F (Φmm) |
14.5 |
Dimension I (mm) |
6.2 |
Dimension C (Φmm) |
39 |
Dimension E |
10 mm |
