| Model No | TM-35-02D |
| Type of Product | Small Dial Gauge |
| Monotaro ID | 1997791 |
| Repeatability (μm) | 5 |
Model No |
TM-35-02D |
Type of Product |
Small Dial Gauge |
Monotaro ID |
1997791 |
Repeatability (μm) |
5 |
RoHS Directive |
Correspondence |
Type |
Small long stroke medium two-needle type |
Return Error (μm) |
5 |
Indication Error (Total Measurement Range) (μm) |
20 |
Indication Error (1 rotation) (μm) |
14 |
Indication Error (1/2 rotation) (μm) |
12 |
Country of Origin |
Japan |
Trusco Part No. |
102-8278 |
Mass (g) |
75 |
Import Country |
Direct Import from Japan |
Measuring Ranges |
10 mm |
Name of Manufacturer/Packer/Importer |
Teclock Co., Ltd. |
Minimum Reading (mm) |
0.01 |
Overall Length (mm) |
78.5 |
Indication Error (μm) |
9 μm at 1/10 Rotation |

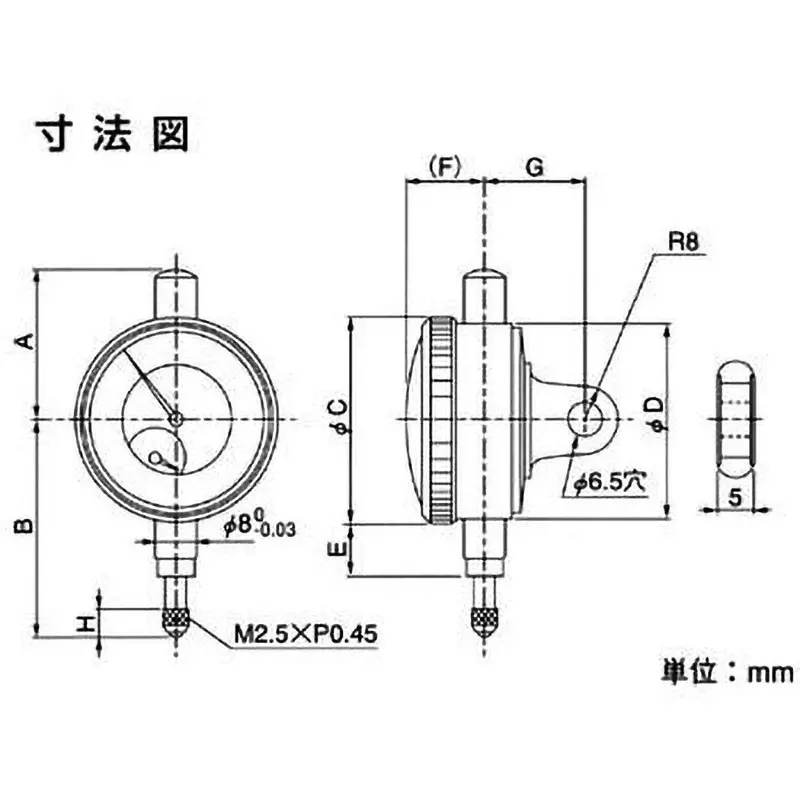

Dimension J (mm) |
16.5 |
Dimension H (Φmm) |
5 |
Dimension F (Φmm) |
16.5 |
Dimension B (Φmm) |
46 |
Dimension G |
19 mm |
Dimension C (Φmm) |
39 |
Dimension E |
10 mm |
