| Model No | KM-121f |
| Type of Product | Dial Gauge |
| Monotaro ID | 6704284 |
| Measuring Force (N) | 2.2 or less |
Model No |
KM-121f |
Type of Product |
Dial Gauge |
Monotaro ID |
6704284 |
Measuring Force (N) |
2.2 or less |
Repeatability (μm) |
5 |
RoHS Directive |
Correspondence |
Dimension D (Φmm) |
52 |
Back Plate Specification |
Flat back lid |
Return Error (μm) |
5 |
Indication Error (Total Measurement Range) (μm) |
25 |
Indication Error (1 rotation) (μm) |
15 |
Indication Error (1/2 rotation) (μm) |
10 |
Country of Origin |
Japan |
Mass (g) |
110 |
Import Country |
Direct Import from Japan |
Measuring Ranges |
20 mm |
Name of Manufacturer/Packer/Importer |
Teclock Co., Ltd. |
Minimum Reading (mm) |
0.01 |
Specifications |
Shock proof |
Overall Length (mm) |
111 |
Indication Error (μm) |
8 μm at 1/10 Rotation |

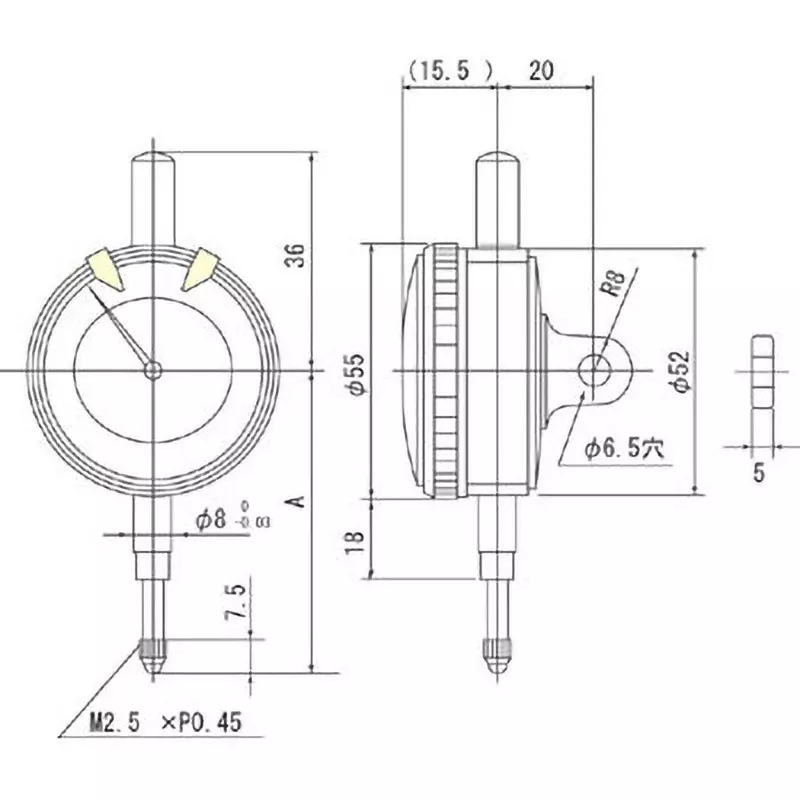

Dimension J (mm) |
29.5 |
Dimension H (Φmm) |
7.5 |
Dimension F (Φmm) |
15.5 |
Dimension A (Φmm) |
36 |
Dimension B (Φmm) |
75 |
Dimension I (mm) |
7.8 |
Dimension C (Φmm) |
55 |
Dimension E |
18 mm |
