| Model No | ST-305B |

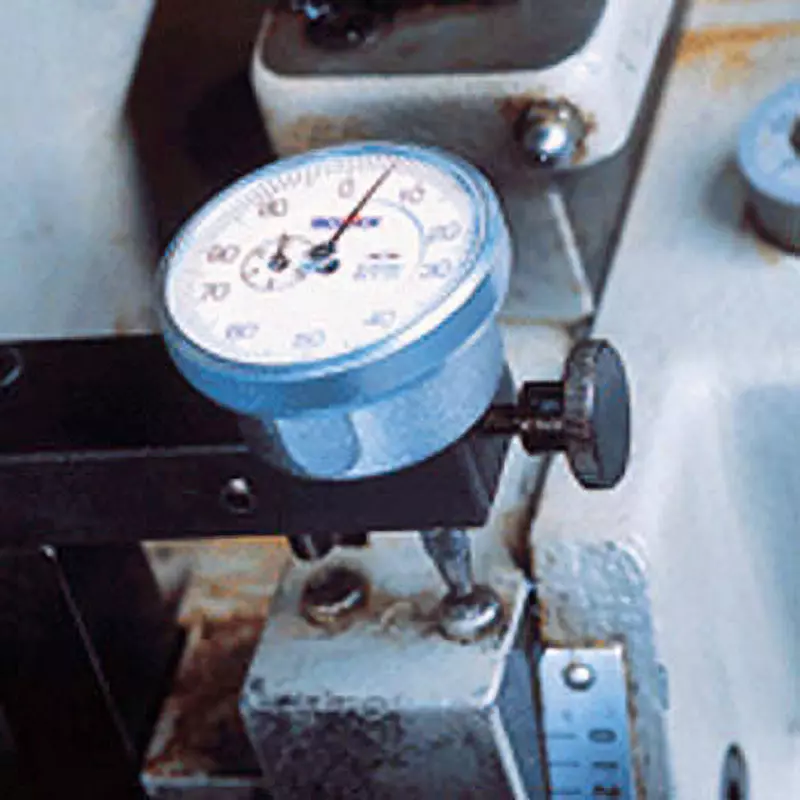

| Type of Product | Dial Gauge |
| Monotaro ID | 5603175 |
| Measuring Force (N) | 1.4 or less |
Model No |
ST-305B |
Type of Product |
Dial Gauge |
Monotaro ID |
5603175 |
Measuring Force (N) |
1.4 or less |
Repeatability (μm) |
5 |
RoHS Directive |
Correspondence |
Type |
Stem mounting type |
Return Error (μm) |
4 |
Indication Error (Total Measurement Range) (μm) |
18 |
Indication Error (1 rotation) (μm) |
14 |
Indication Error (1/2 rotation) (μm) |
12 |
Country of Origin |
Japan |
Trusco Part No. |
336-6227 |
Mass (g) |
80 |
Import Country |
Direct Import from Japan |
Measuring Ranges |
5 mm |
Name of Manufacturer/Packer/Importer |
Teclock Co., Ltd. |
Minimum Reading (mm) |
0.01 |
Indication Error (μm) |
8 μm at 1/10 Rotation |
