| Model No | TM-34 |
| Type of Product | Small Dial Gauge |
| Monotaro ID | 5603254 |
| Repeatability (μm) | 5 |
Model No |
TM-34 |
Type of Product |
Small Dial Gauge |
Monotaro ID |
5603254 |
Repeatability (μm) |
5 |
RoHS Directive |
Correspondence |

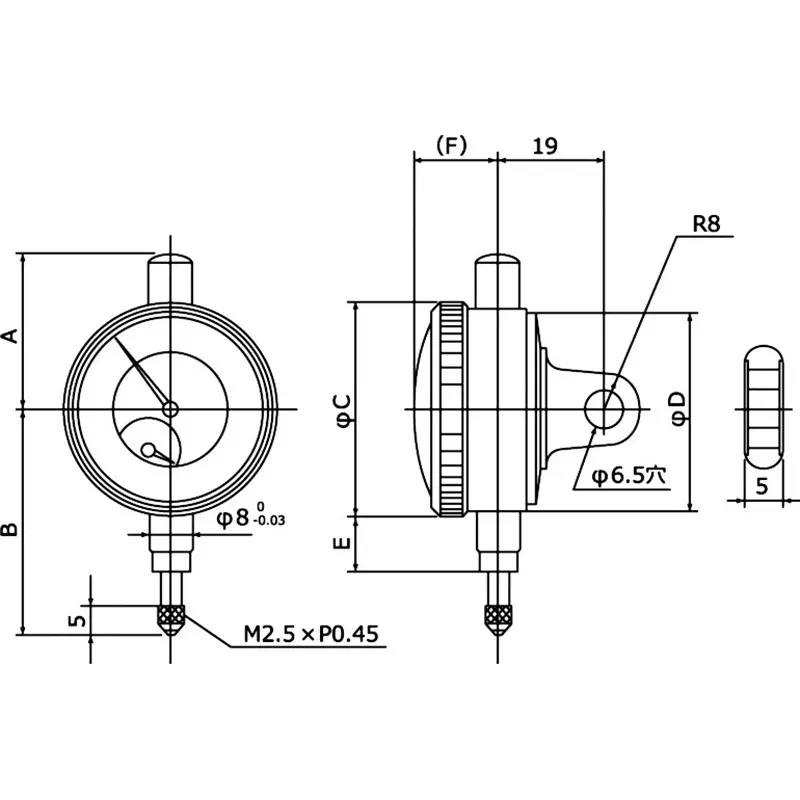

Dimension D (Φmm) |
32 |
Type |
Ultra-compact model with outer frame Φ36 mm |
Return Error (μm) |
4 |
Indication Error (Total Measurement Range) (μm) |
18 |
Indication Error (1 rotation) (μm) |
14 |
Indication Error (1/2 rotation) (μm) |
12 |
Country of Origin |
Japan |
Trusco Part No. |
795-9443 |
Mass (g) |
60 |
Import Country |
Direct Import from Japan |
Measuring Ranges |
4 mm |
Name of Manufacturer/Packer/Importer |
Teclock Co., Ltd. |
Minimum Reading (mm) |
0.01 |
Stem Diameter (mm) |
Φ8 |
Overall Length (mm) |
59.5 |
Indication Error (μm) |
8 μm at 1/10 Rotation |
Dimension J (mm) |
12 |
Dimension H (Φmm) |
5 |
Dimension F (Φmm) |
13 |
Dimension A (Φmm) |
20 |
Dimension G |
19 mm |
Dimension C (Φmm) |
36 |
Dimension E |
10 mm |
