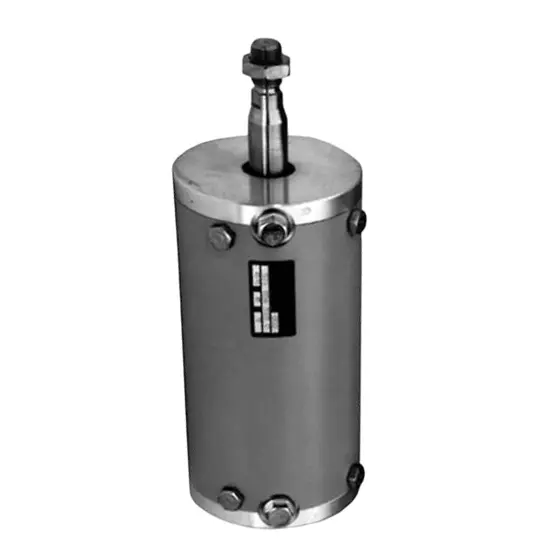

| Type of Product | Diaphragm and piston actuators |
| Working Pressure | 0.03-8 Bar |
| Model No | 5218555110 |
| Country of Origin | Germany |
Type of Product |
Diaphragm and piston actuators |
Working Pressure |
0.03-8 Bar |
Model No |
5218555110 |
Country of Origin |
Germany |
Name of Manufacturer/Packer/Importer |
INGSOL LLP |
Piston Material |
Stainless Steel |
Ambient Temperature |
-25-80 °C |
Medium |
Compressed Air |
Oil Content Min |
0 mg/m³ |
Max Particle Size |
5 µm |
Seal Material |
NBR (Acrylonitrile Butadiene Rubber) |
Oil Content Max |
1 mg/m³ |
Piston rod thread |
M10 x 1.25 |
Piston Diameter |
75 mm |
Piston Force @ 6.3 bar |
2783 N |
Stroke |
60 mm |
Port |
G 3/8 |
Tube Material |
Steel |
Cover Material |
Aluminum |
