| Model No | GDCP-45C8 |

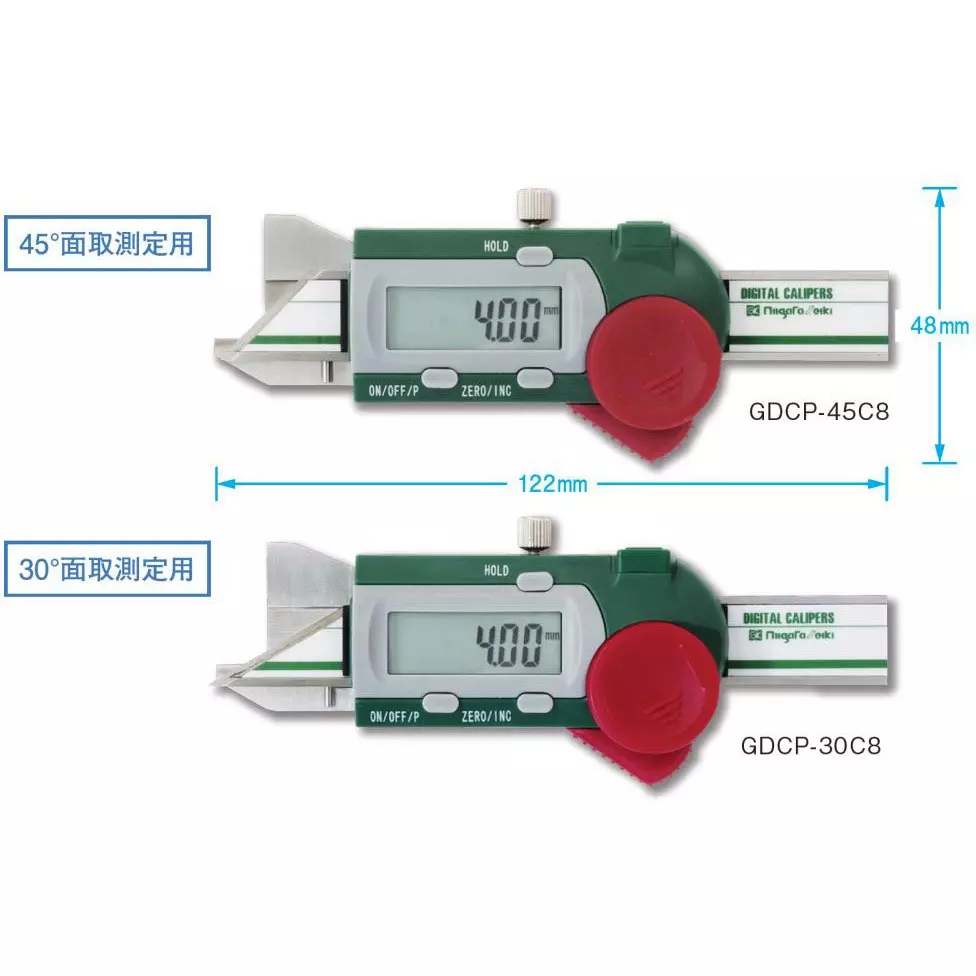

| Type of Product | Digital Chamfer Measurement Caliper |
| Measurement Range (mm) | 0-8 |
| Resolution (mm) | - |
Model No |
GDCP-45C8 |
Type of Product |
Digital Chamfer Measurement Caliper |
Measurement Range (mm) |
0-8 |
Resolution (mm) |
- |
Power Supply |
CR2032 (included for testing) |
Accuracy |
- |
Country of Origin |
Japan |
Monotaro ID |
68279236 |
RoHS Directive |
Correspondence |
Type |
Digital |
Included Components |
CR2032 |
Minimum Reading (mm) |
0.01 |
Main Unit Material |
Stainless steel |
Operating Temperature Range |
0-40℃ |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Niigata Seiki Co., Ltd. |
Allowable Tolerance |
EMPE±0.05 mm |
Storage Temperature Range |
-10 to 60℃ |
Specifications |
Measurement of inner chamfer of hole: Minimum hole diameter Φ7mm |

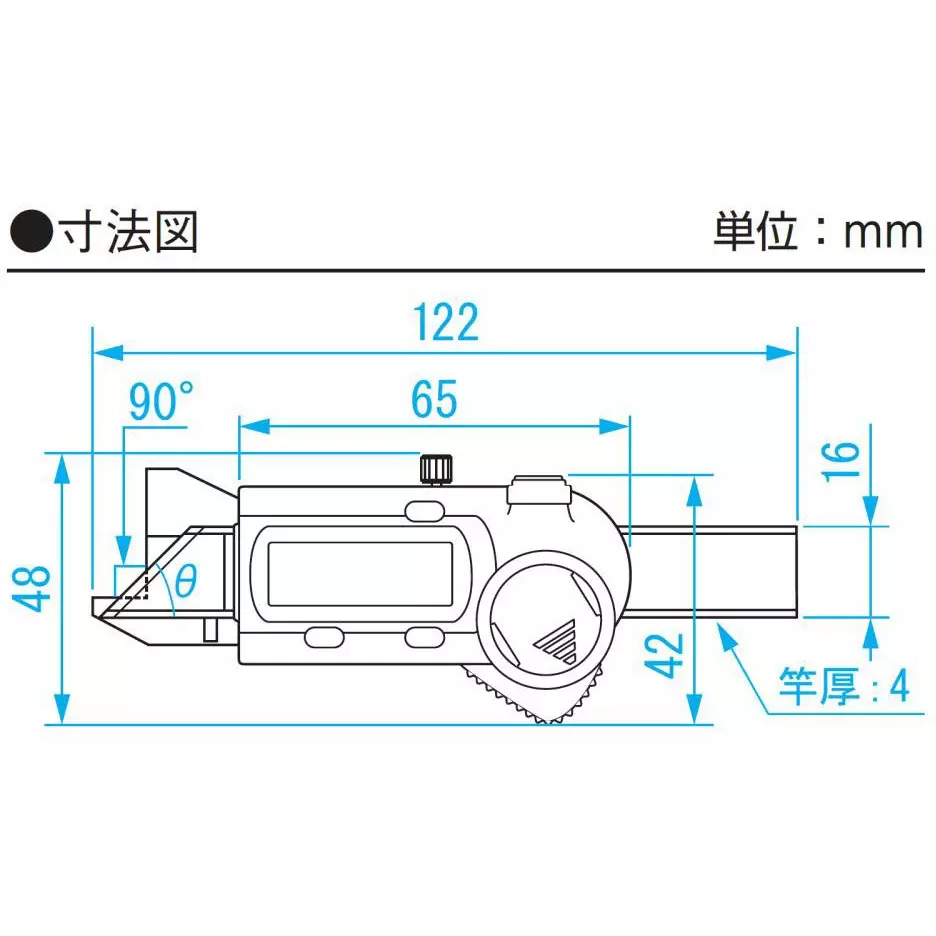

Body dimensions |
122x48x17 mm |
Point Angle |
Main scale 45° |
Mass of Main Unit (g) |
110 |
Thickness (mm) |
Contact part: 0.3 |
