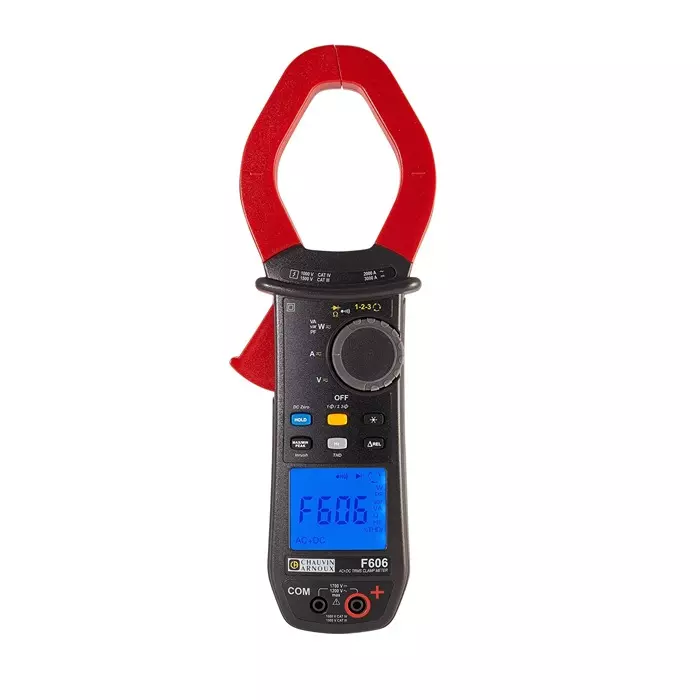

| Type of Product | Clamp Meter |
| Weight | 640 g |
| Dimension | 111 x 41 x 296 mm |
| Battery Type | LR6 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Clamp Meter |
Weight |
640 g |
Dimension |
111 x 41 x 296 mm |
Battery Type |
LR6 |
Non-Contact Voltage Detector |
No |
Power Source |
Battery |
Display Type |
Backlit LCD |
Battery Life |
>350 h |
Width |
111 mm |
Height |
41 mm |
True Rms |
Yes |
AC Voltage Measurement Range |
0.15 to 1200 V AC |
Country of Origin |
China |
Safety Category |
CAT III 1500 V, CAT IV 1000V |
Length |
296 mm |
Safety Category Voltage |
CAT III 1500 V, CAT IV 1000V |
Maximum Operating Temperature |
+55°C |
Minimum Operating Temperature |
-20°C |
AC Voltage Measurement Resolution |
10mV |
Resistance Measurement Accuracy |
±1 % + 5 digits |
Resistance Measurement Resolution |
100mΩ |
Name of Manufacturer/Packer/Importer |
RS Components & Controls (I) Ltd |
Manufacturer Part Number |
P01120966 |
Clamp Meter Type |
AC/DC Clamp Meter |
Functions Measured |
AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Diode, Frequency, Harmonics, In-Rush Current, Phase rotation, Power, Power Factor, Resistance |
Jaw Capacity Busbars |
60 mm |
Safety Category Levels |
CAT III, CAT IV |
Absolute Maximum Resistance Measurement |
99.99 kΩ |
AC Current Measurement Resolution |
10mA |
DC Current Measurement Resolution |
10mA |
Absolute Maximum DC Voltage Measurement |
1700 V DC |
Absolute Maximum AC Voltage Measurement |
1200 V AC |
Absolute Maximum AC Current Measurement |
2000 A AC |
Maximum Conductor Size |
60 mm |
Best AC Voltage Accuracy |
±(1% rdg + 3dgts) |
Best DC Voltage Accuracy |
±(1% rdg + 3dgts) |
Best AC Current Accuracy |
±(1% rdg + 3dgts) |
Voltage Measurement Resolution |
10 mV (DC) |
Absolute Maximum DC Current Measurement |
3000 A DC |
Best DC Current Accuracy |
±(1% rdg + 3dgts) |
AC Current Measurement Range |
0.25 to 2000 A AC |
DC Current Measurement Range |
0.25 to 3000 A DC |
