Ships within 7 days
View
View
View
View
| Type of Product | Digital Clamp Meter |
| Relative Humidity | Operating Humidity: Non condensing (<10°C); ≤ 90 % RH at 10 °C to 30 °C; ≤ 75 % RH at 30 °C to 40 °C; ≤ 45 % RH at 40 °C to 50 °C; |
| Weight | 132 g |
| Dimension | 190 mm x 52 mm x 16 mm |
Type of Product |
Digital Clamp Meter |
Relative Humidity |
Operating Humidity: Non condensing (<10°C); ≤ 90 % RH at 10 °C to 30 °C; ≤ 75 % RH at 30 °C to 40 °C; ≤ 45 % RH at 40 °C to 50 °C; |
Weight |
132 g |

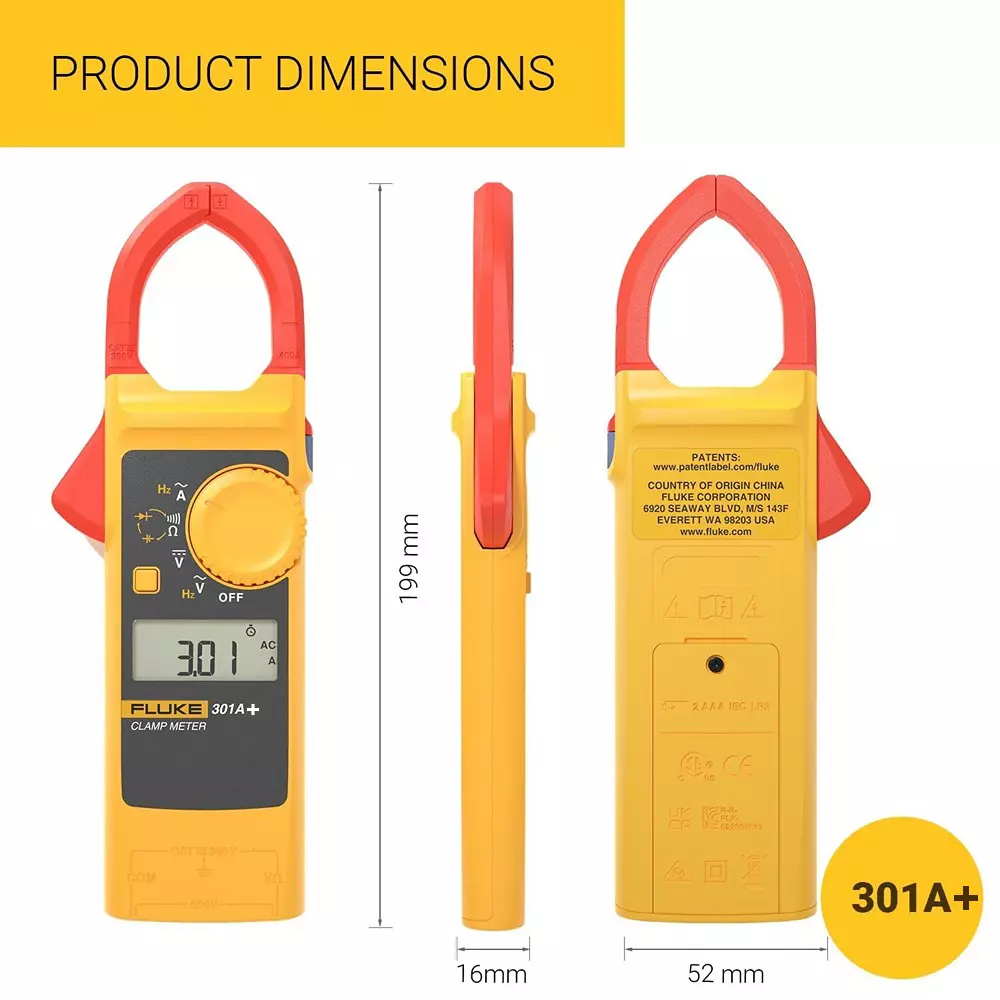

Dimension |
190 mm x 52 mm x 16 mm |
Model No |
301A+ |
Capacitance |
Range: 99.99 uF, 999.9 uF, Accuracy: 5% + 5 |
Battery Type |
2 AAA, IEC LR03 |
Operating Temperature |
-10 °C to 50 °C |
Storage Temperature |
-30 °C to 60 °C |
Battery |
(2) AAA Batteries |
Voltage (AC) |
Range: 600 V, Resolution: 0.1 V, Accuracy: 1.5% + 5 |
Voltage (Dc) |
Range: 600 V, Resolution: 0.1 V, Accuracy: 1% + 5 |
Resistance |
Range: 600.0 Ω, 6.000 kΩ, 60.00 kΩ, Accuracy: 1% + 5 |
Display Type |
6000 counts, updates 3 times per second |
Jaw Opening |
34 mm |
Battery Life |
500 hours minimum |
Temperature coefficient |
0.1 x (specified accuracy) /°C (<18 °C or>28 °C) |
Safety |
CAT III 300 V, IEC 61010--1, IEC61010-2-032 CAT III 300 V, Pollution Degree 2 |
Diode |
Range: 3.000 V, Accuracy: 10% |
AC Current Range |
Range: 400 A, Resolution: 0.1 A, Accuracy: 2 % + 5 |
IP Rating |
IP30 |
Altitude |
Operating: 2000 m; Storage: 12000 m |

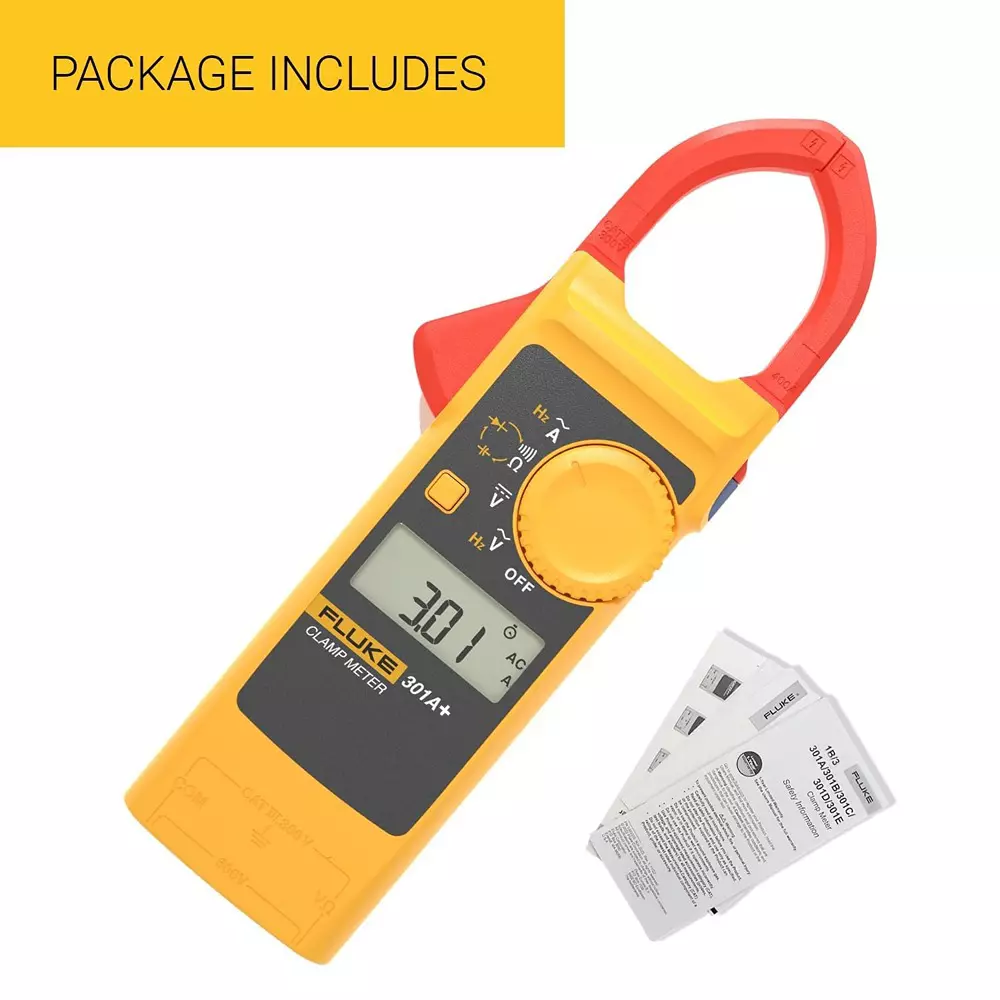

Package Contains |
1 x Clamp Meter, 1x Manual, 2 x Test Leads |
Country of Origin |
India |
Clamp Size |
10 mm X 10 mm |
Name of Manufacturer/Packer/Importer |
FLUKE INDIA |
Warranty Duration |
1 Year |
Current Frequency |
Range: 45.0 to 400.0 Hz, Accuracy: 0.1% + 3 |
Voltage Frequency |
Range: 9.999 Hz, 99.99 Hz, 999.9 Hz, 9.999 kHz, 99.99 kHz, Accuracy: 0.1% + 3 |
Environment |
IEC 61326--1: Portable |
