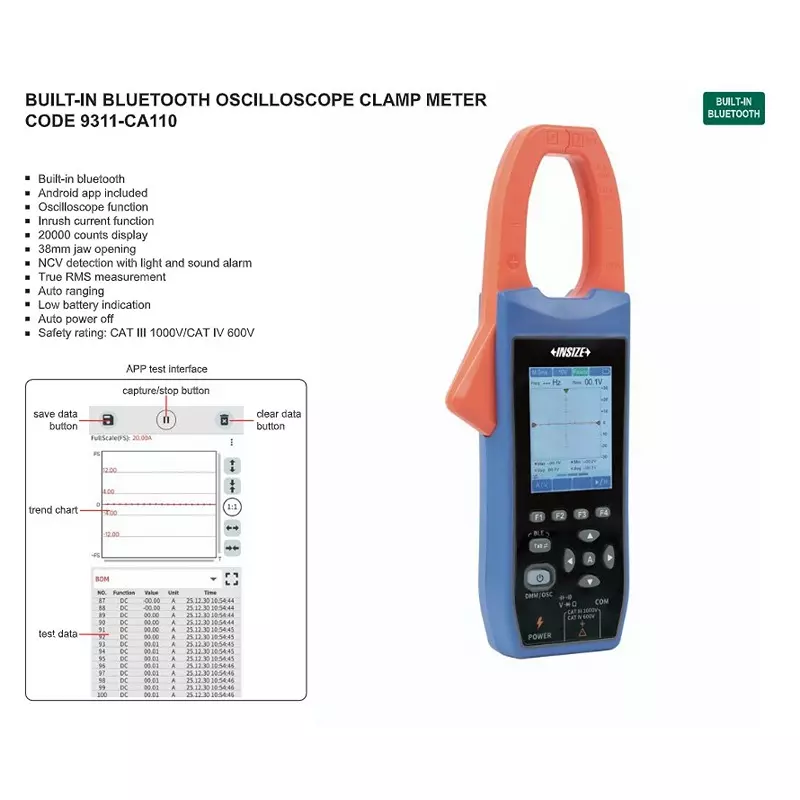

| Type of Product | Oscilloscope Clamp Meter |
| Model No | 9311-CA110 |
| Safety Rating | CAT III 1000 V/CAT IV 600 V |
| Measurement type | True RMS |
Type of Product |
Oscilloscope Clamp Meter |
Model No |
9311-CA110 |
Safety Rating |
CAT III 1000 V/CAT IV 600 V |
Measurement type |
True RMS |
Temperature |
No |
Voltage (Dc) |
1000 V |
DC Current |
1000 A |
Input Impedance |
≥10 MΩ |
Display Type |
20000 Counts 4.5 Digit Display |
Jaw Opening |
38 mm |
AC Current (A) |
1000 A |
Function |
Oscilloscope, Inrush, |
True Rms |
Yes |
AC Voltage (Volts) |
1000 V |
Package Contains |
1 x Main Unit, 1 x Li-Ion Battery, 2 x Test Lead, 1 x Power Adapter |
Country of Origin |
China |

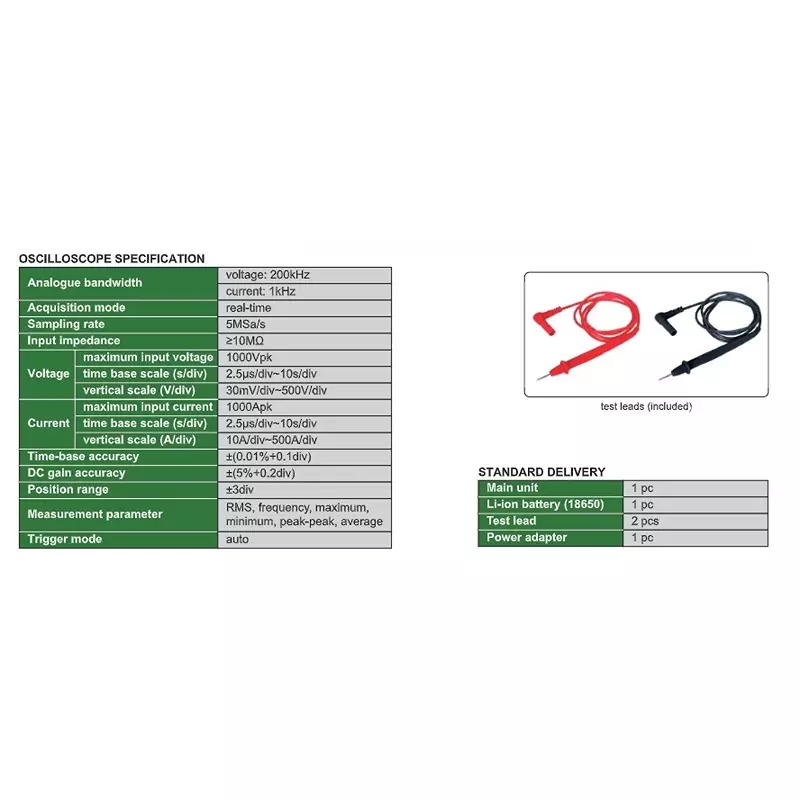

Bandwidth |
Analog - Voltage: 200 KHz, Current: 1 KHz |
Detection |
NCV detection with light and sound alarm |
Parameters Measured |
RMS, Frequency, Maximum, Minimum, Peak-Peak, Average |
Name of Manufacturer/Packer/Importer |
INSZIE |
Indicator Type |
Low Battery Indicator |
Auto Shutoff |
Yes |
Sampling Rate |
5 MSa/s |
Trigger Mode |
Auto |
App Compatibility |
Android |
In-built |
Bluetooth |
Position |
±3 div |
