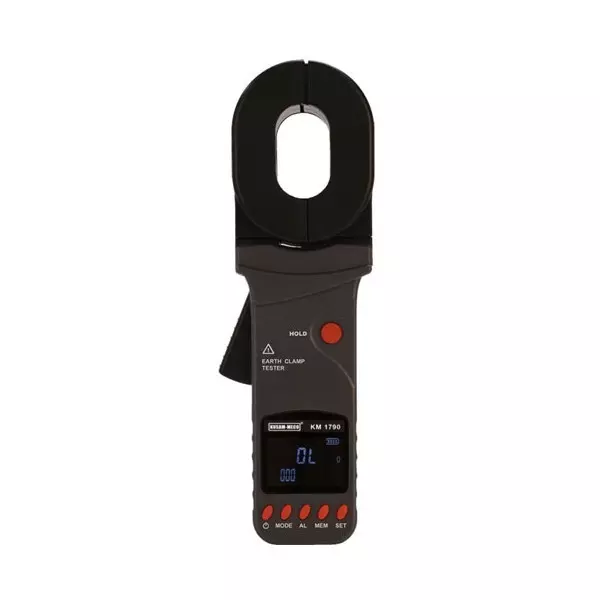

| Type of Product | Clamp Earth Resistance Tester |
| Display | 4 Digits |
| Dimension | 85(W)× 58(T) x 285(H) mm |
| Model No | KM 1690 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Clamp Earth Resistance Tester |
Display |
4 Digits |
Dimension |
85(W)× 58(T) x 285(H) mm |
Model No |
KM 1690 |
Operating Temperature |
-10°C to 40C |
Storage Temperature |
-20°C to 60C |
Battery |
4 section 5 Alkaline Dry Battery |
Resistance |
0.01Ω-1200Ω |
Resolution |
0.001Ω Accuracy: ±1%±0.01Ω |
Digital Display |
LCD display |
AC Current (A) |
0.00mA-20.0A |
Insulation Resistance |
20Ω or more (500V between circuit and outside) |
Power Consumption |
50 mA |
LCD Size |
46 × 29mm |
Data Storage |
300 Groups, the symbol “MEM” gives indication, “FULL” mark will flash to indicate the memory has been full Data Storage Data Review "MR" symbol indication when reviewing data |
Type |
Explosion-proof Type |
Clamp Size |
65 x 32 mm |
Pressure Resistance |
AC 3700V/rms |
External Magnetic Field |
< 40A/m |
External Electric Field |
<1V/m |
Sampling Rate |
2 times/second |
Overflow Indicator |
Exceed measurement range overflow function: “OL ” symbol display |
