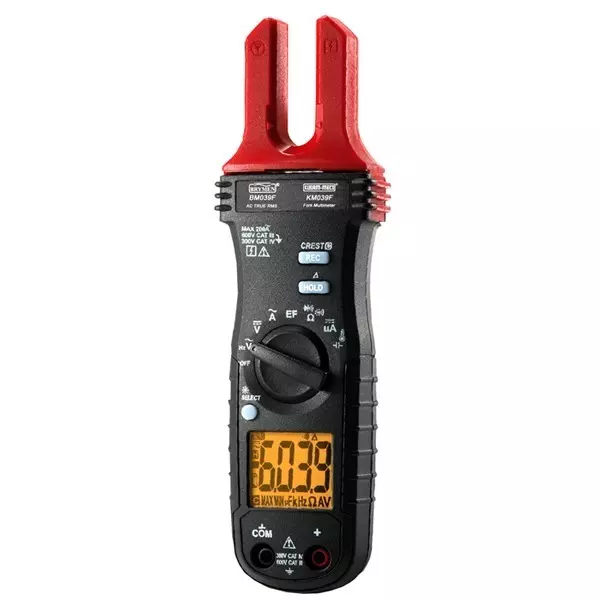

| Type of Product | Digital Fork Clampmete |
| Relative Humidity | Maximum relative humidity 80% for temperature upto 31 °C decreasing linearly to 50% relative humidity at 40 °C. |
| Weight | 158 g |
| Dimension | 193(L) x 57(W) x 32(H)mm |
Type of Product |
Digital Fork Clampmete |
Relative Humidity |
Maximum relative humidity 80% for temperature upto 31 °C decreasing linearly to 50% relative humidity at 40 °C. |
Weight |
158 g |
Dimension |
193(L) x 57(W) x 32(H)mm |
Model No |
KM 039F |
Operating Temperature |
0 °C to 40 °C |
Storage Temperature |
-20 °C to 60 °C |
Battery |
1.5V AAA x 2 battery |
Jaw Size |
12.5 mm |
Temperature coefficient |
nominal 0.1x (specified accuracy) / °C @ (0 °C ~ 18 °C or 28 °C ~ 40 °C), or otherwise specified. |
Pollution degree |
2 |
Overload Protection |
Current via Fork-Clamp: 200A AC rms at <400Hz Voltage via terminals : 66V DC / 920V AC rms. |
Digital Display |
Backlight Display |
Function |
22 Functions |
Power Consumption |
5mA Typical |
Other functions |
Other functions via terminals : 600V DC / VAC rms |
Altitude |
Operating below 2000m |
Update Rate |
5/sec nominal |
Low Power |
Below Approx. 2.85V for Capacitance & Hz; Below Approx. 2.5V for other functions. |
Measurement |
True RMS |
