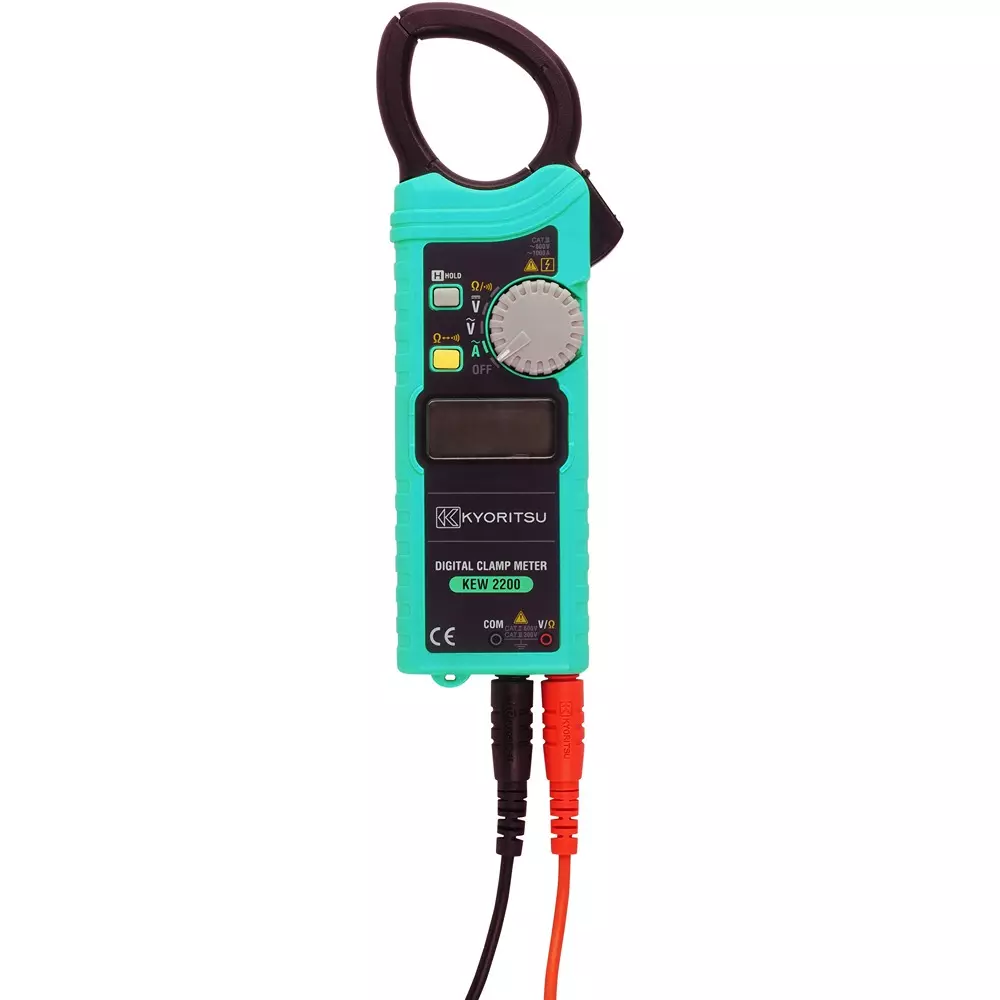

| Type of Product | Clamp Meter |
| Model No | KEW2200 |
| Voltage (Dc) | 400.0mV/4.000/40.00/400.0/600V (5 range auto) ±1.0%rdg±3dgt |
| Continuity | Buzzer sounds when below 50±30 Ω |
Type of Product |
Clamp Meter |
Model No |
KEW2200 |
Voltage (Dc) |
400.0mV/4.000/40.00/400.0/600V (5 range auto) ±1.0%rdg±3dgt |
Continuity |
Buzzer sounds when below 50±30 Ω |
AC Current (A) |
40/400/1000 (3 range auto) ±1.4%rdg±6dgt (50/60Hz) ±1.6%rdg±6dgt (45 to 65Hz) |
Power Supply |

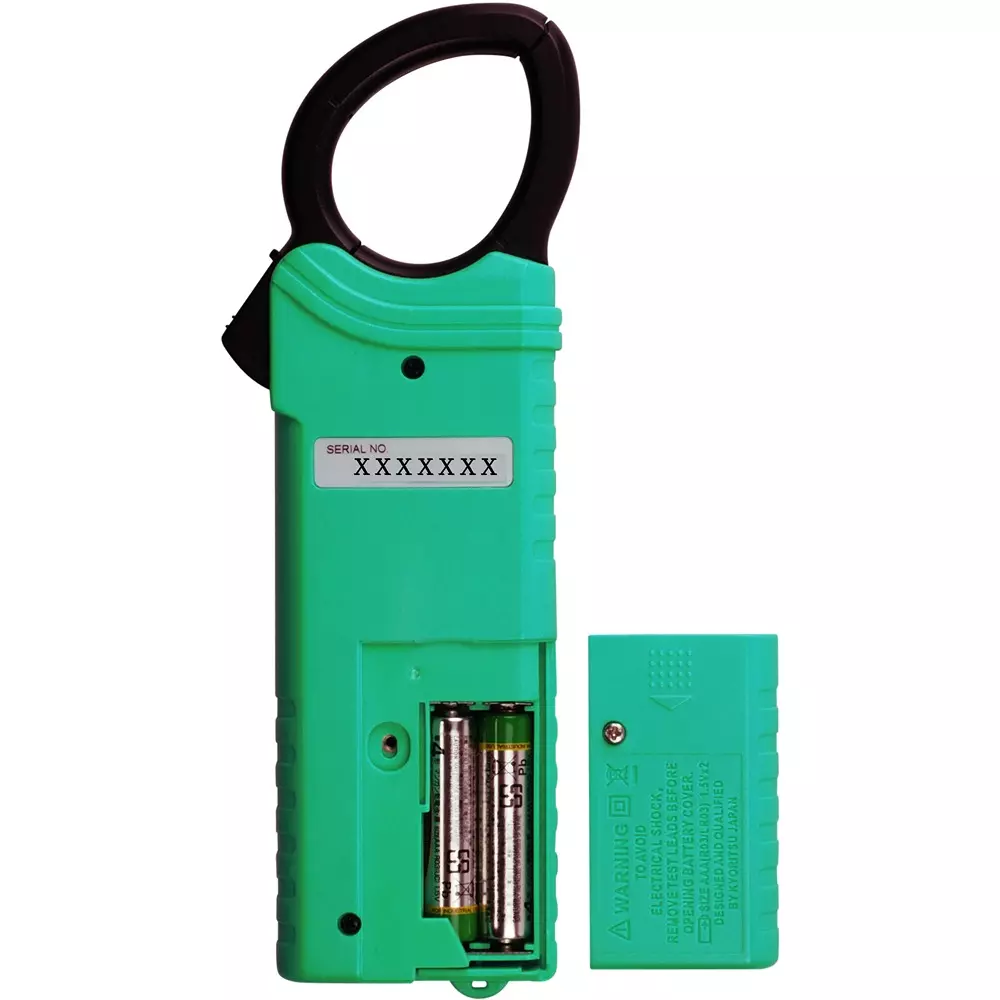

AAA batteries R03 / LR03 (1.5V) x 2 |
Continuous Operating Time (hrs) |
Approx. 350 (auto power off/approx. 10 minutes) |
Applicable Standard |
IEC 61010-1 CAT.III 600V Pollution Degree 2 (AC A), CAT.III 300V/CAT.II 600V Pollution Degree 2 (AC/DC V), IEC 61010-031, IEC 61010-2-032, IEC 61326 (EMC) |
Resistance (Ω) |
400/4/40/400k/4/40M (6 range auto), ±2%rdg±4dgt (0 to 400kΩ), ±4%rdg±4dgt (4MΩ), ±8%rdg±4dgt (40MΩ) |
AC Voltage (Volts) |
4/40/400/600 (4 range auto) ±1.8%rdg±7dgt (45 to 65Hz) ±2.3%rdg±8dgt (65 to 500Hz) |
Country of Origin |
Japan |
Monotaro ID |
38288871 |
Included Components |

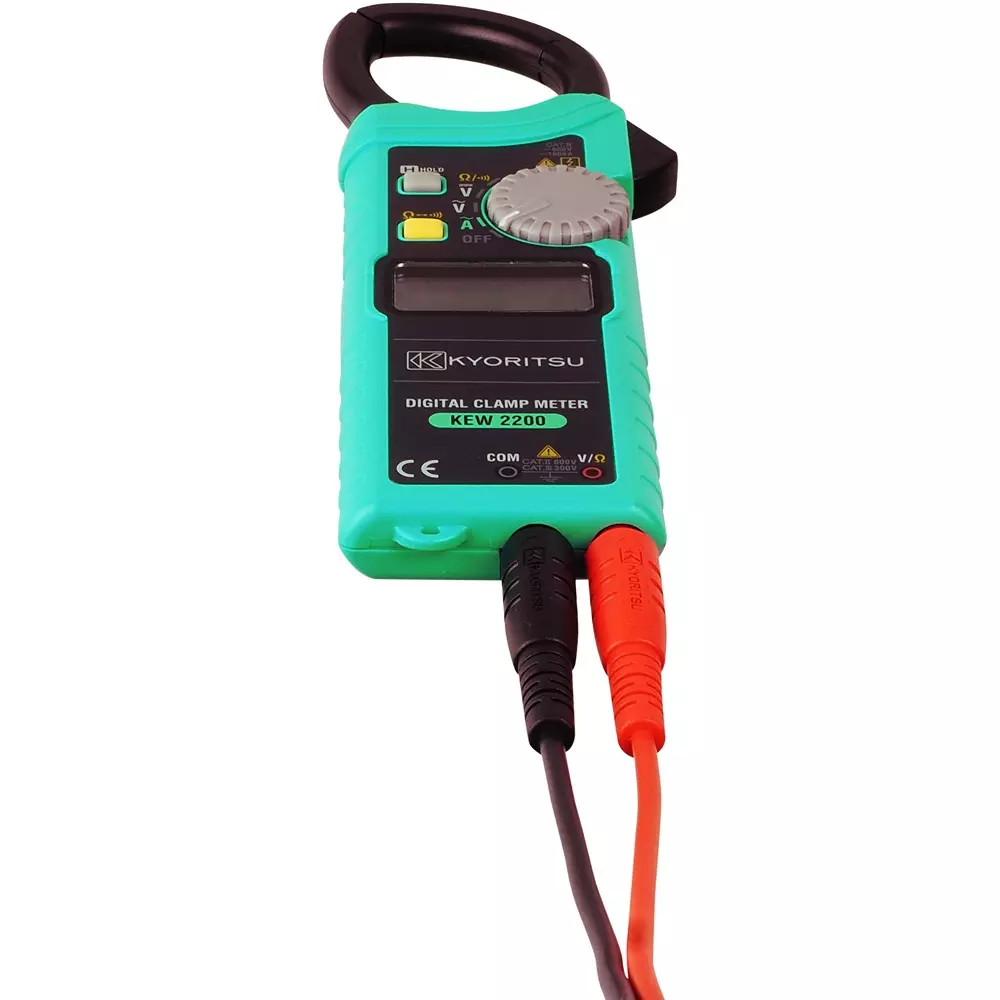

7107A (measurement cord), 9160 (carrying case), 2 AAA R03 batteries, instruction manual |
Name of Manufacturer/Packer/Importer |
Kyoritsu Electrical Instruments Co., Ltd. |
Import Country |
Direct Import from Japan |
Clamp Diameter (Φmm) |
Up to 33 |
Mass (g) |
Approximately 120 (including batteries) |
Conductor Diameter for Measurement |
Maximum Φ33 mm |
Suitable Battery |
AAA batteries R03 / LR03 (1.5V) x 2 |
Dimension (WxDxH) |
68x190x20 mm |
RoHS Directive |
Correspondence |
Dimensions, Length L x Width W x Depth D (mm) |
190x68x20 |
Trusco Part No. |
421-2967 |
Length (mm) |
20 |
Withstand Voltage |
AC5320V/5 seconds (between core and outer case), AC3540V/5 seconds (between electrical circuit and outer case) |
