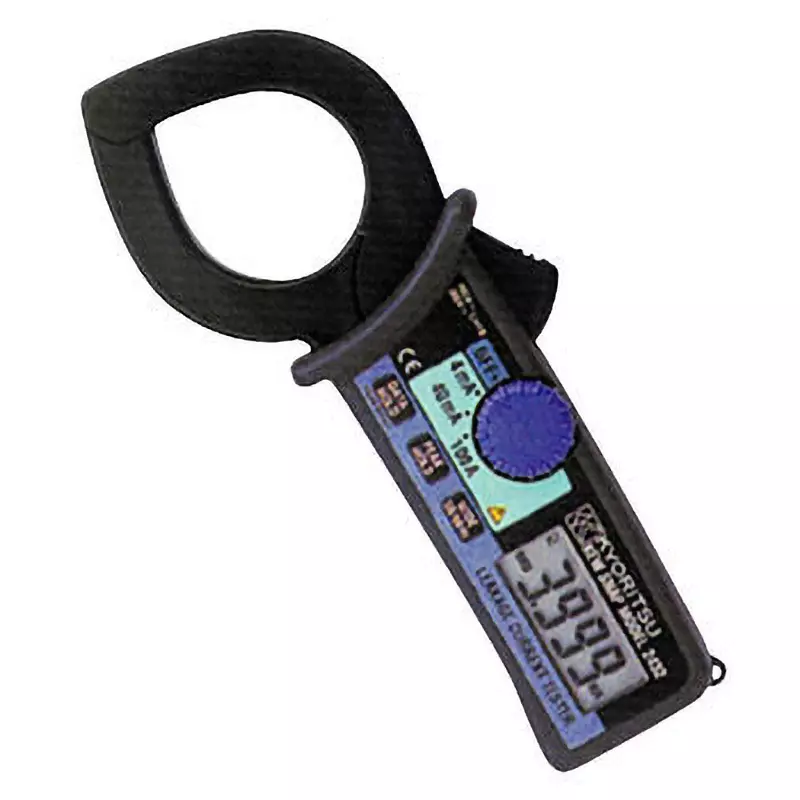

| Type of Product | Clamp Meter |
| Frequency Range (Hz) | 20 to 1K |
| Model No | MODEL2432 |
| Accuracy | AC current (50/60Hz): ±1% rdg±5dgt(4/40mA), ±1%rdg±5dgt(0-80A), ±5% rdg(80.1-100A)/AC current (WIDE): ±2.5 %rdg±10dgt(4/40mA)(20Hz to 1kHz), ±2.5% rdg±10dgt(0～80A)(40Hz～1kHz),±10% rdg(80.1～100A)(40Hz～1kHz) |
Type of Product |
Clamp Meter |
Frequency Range (Hz) |
20 to 1K |
Model No |
MODEL2432 |
Accuracy |
AC current (50/60Hz): ±1% rdg±5dgt(4/40mA), ±1%rdg±5dgt(0-80A), ±5% rdg(80.1-100A)/AC current (WIDE): ±2.5 %rdg±10dgt(4/40mA)(20Hz to 1kHz), ±2.5% rdg±10dgt(0～80A)(40Hz～1kHz),±10% rdg(80.1～100A)(40Hz～1kHz) |
Resolution |
0.001mA (minimum) |
AC Current (A) |
4/40m/100 |
Power Supply |
AAA battery R03 (1.5V) x 2 |
Influence by External Magnetic Field |
Approximately 2mA when approaching 100AΦ15mm (conductor diameter) |
Continuous Operating Time (hrs) |
Approximately 40 (auto power off approximately 10 minutes) |
Applicable Standard |
IEC 61010-1 (JIS C 1010-1) CAT Ⅲ 300V Pollution Degree 2, IEC 61010-2-032 (JIS C 1010-2-32) |
Country of Origin |
Japan |
Monotaro ID |
9215796 |
Included Components |

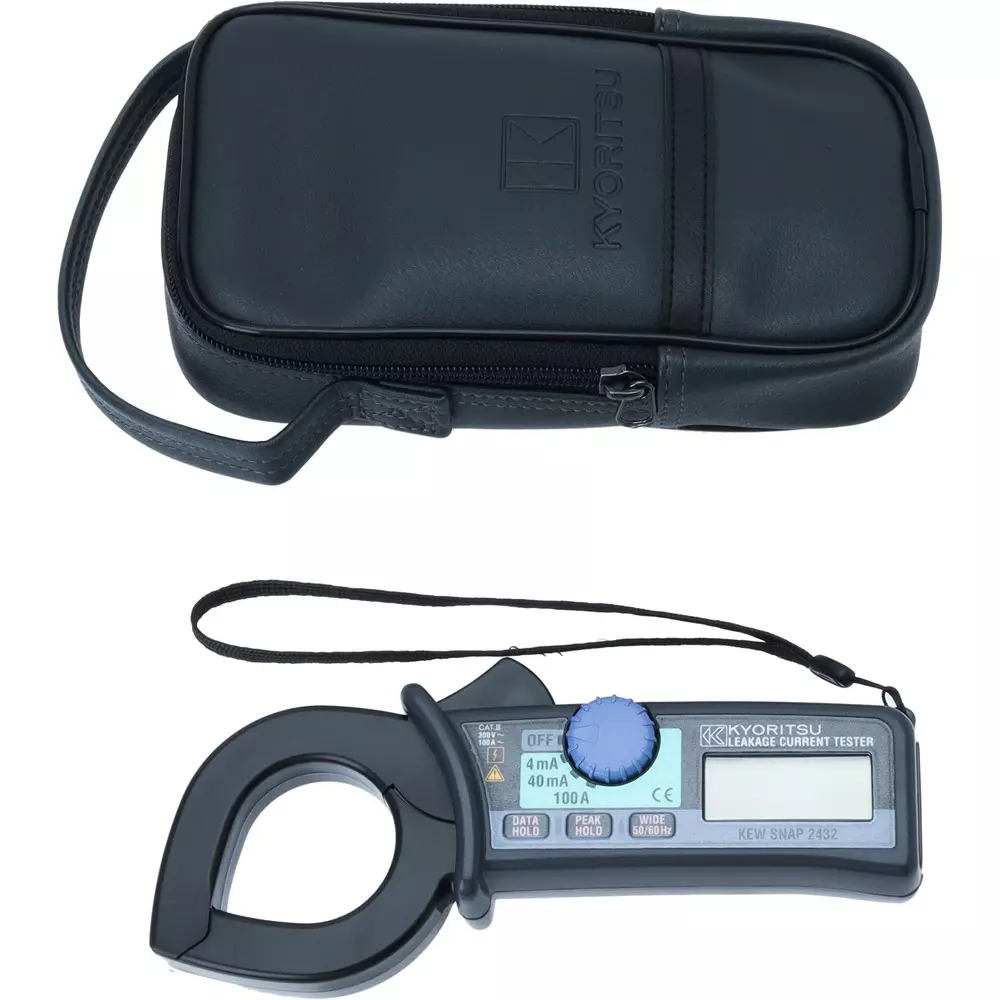

Carrying case (9052), AAA batteries R03 x 2, instruction manual |
Name of Manufacturer/Packer/Importer |
Kyoritsu Electrical Instruments Co., Ltd. |
Import Country |
Direct Import from Japan |
Clamp Diameter (Φmm) |
Up to 40 |
Mass (g) |
290 (including batteries) |
Conductor Diameter for Measurement |
Maximum Φ40 mm |
Withstand voltage (V) |
AC 3700 / 1 minute |
Suitable Battery |
AAA battery R03 (1.5V) x 2 |
Response Time (seconds) |
About 2 |
Dimension (WxDxH) |
81x185x32 mm |
RoHS Directive |
Correspondence |
Dimensions, Length L x Width W x Depth D (mm) |
185x81x32 |
Trusco Part No. |
479-6691 |
Length (mm) |
32 |
