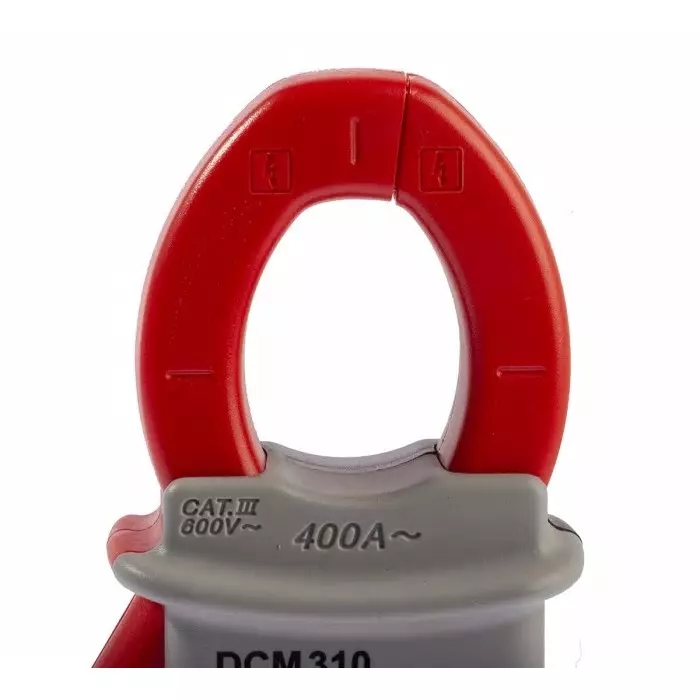

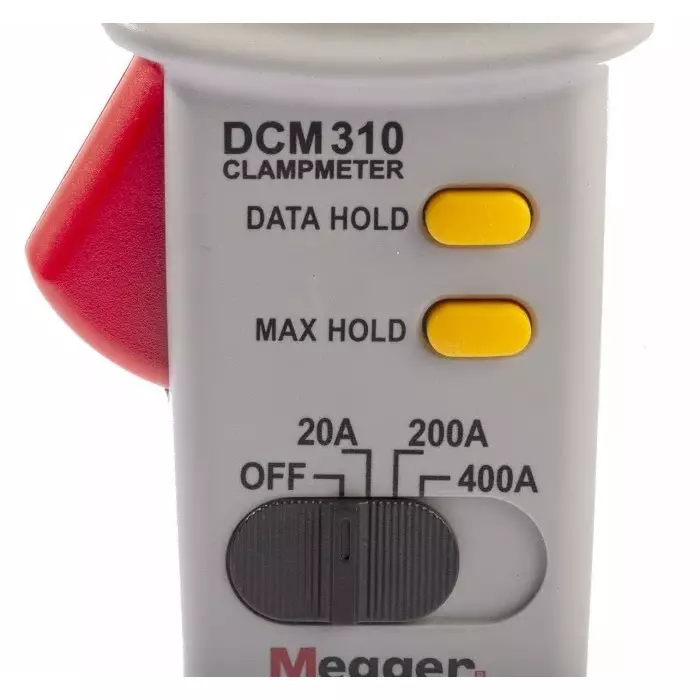

| Type of Product | DCM310 Clamp Meter, Max Current 400A ac CAT III 600V |
| Weight | 250g |
| Dimension | 56 x 32 x 180mm |
| Model No | DCM310 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
DCM310 Clamp Meter, Max Current 400A ac CAT III 600V |
Weight |
250g |
Dimension |
56 x 32 x 180mm |
Model No |
DCM310 |
Battery Type |
9 V Alkaline |
Power Source |
Battery |
Display Type |
LCD |
Battery Life |
580 h |
Width |
32mm |
Height |
180mm |
Country of Origin |
Taiwan, Province Of China |
Safety Category |
CAT III 600V |
Length |
56mm |
Safety Category Voltage |
600V |
Maximum Operating Temperature |
+50°C |
Minimum Operating Temperature |
0°C |
Name of Manufacturer/Packer/Importer |
Megger |
Pack of |
Each of 1 Piece |
Clamp Meter Type |
AC Current Clamp Meter |
Functions Measured |
AC Current |
Jaw Capacity Busbars |
27mm |
Safety Category Levels |
CAT III |
Absolute Maximum Resistance Measurement |
20MΩ |
AC Current Measurement Resolution |
100mA |
Absolute Maximum Temperature Measurement |
+50°C |
Temperature Measurement Accuracy |
>80 % |
Manufacturer Model Number |
1000-303 |
Absolute Maximum AC Current Measurement |
400A ac |
Maximum Conductor Size |
27mm |
Best AC Current Accuracy |
±1(2% rdg + 5dgts) |
AC Current Measurement Range |
0 → 400 A |
