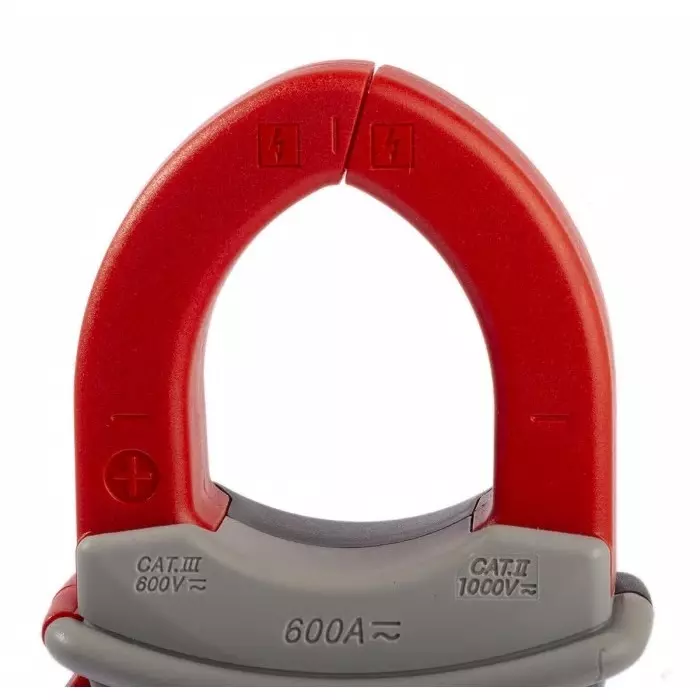

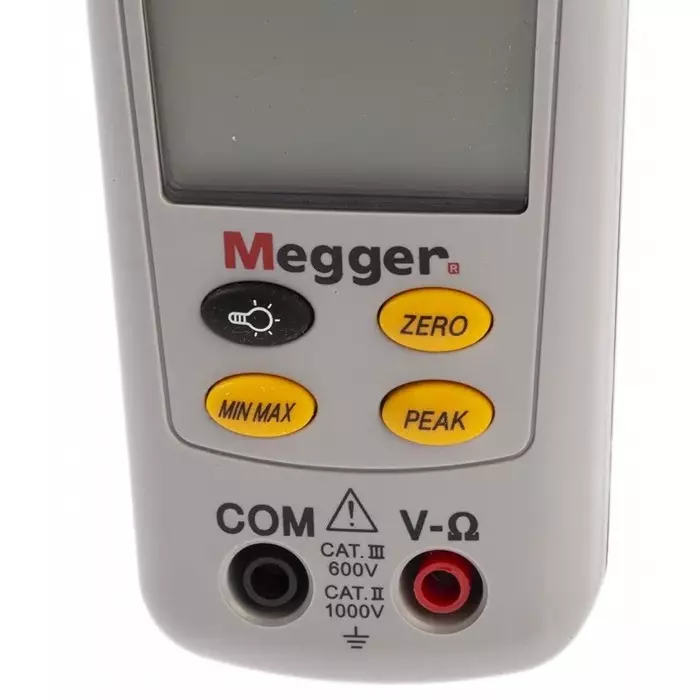

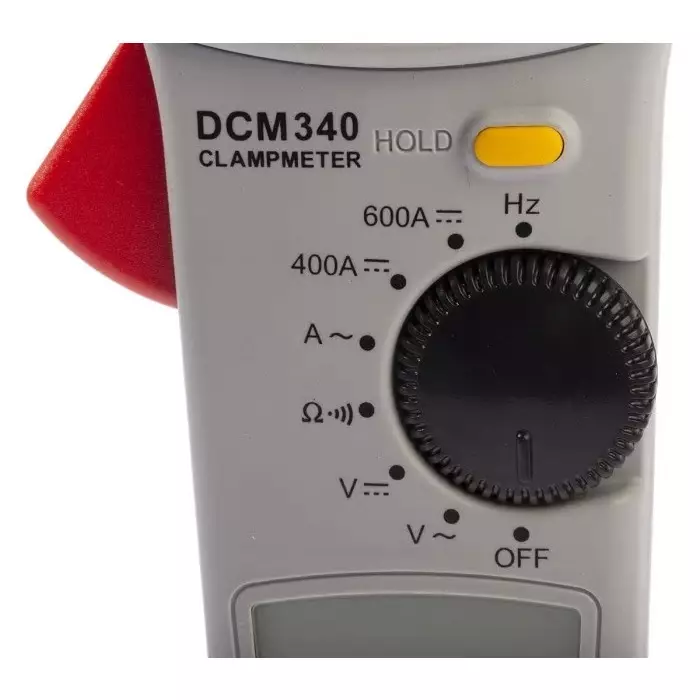

| Type of Product | DCM340 Clamp Meter, 600A dc, Max Current 600A ac CAT III 600V |
| Weight | 225g |
| Dimension | 68 x 42 x 237mm |
| Model No | DCM340 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
DCM340 Clamp Meter, 600A dc, Max Current 600A ac CAT III 600V |
Weight |
225g |
Dimension |
68 x 42 x 237mm |
Model No |
DCM340 |
Battery Type |
9 V Alkaline |
Power Source |
Battery |
Display Type |
LCD |
Battery Life |
200 h |
Width |
42mm |
Height |
237mm |
Country of Origin |
Taiwan, Province Of China |
Safety Category |
CAT III 600V |
Length |
68mm |
Safety Category Voltage |
600V |
Maximum Operating Temperature |
+50°C |
Minimum Operating Temperature |
0°C |
Resistance Measurement Accuracy |
±11% ±13 Digits |
Resistance Measurement Resolution |
0 → 400Ω |
Name of Manufacturer/Packer/Importer |
Megger |
Pack of |
Each of 1 Piece |
Clamp Meter Type |
AC/DC Clamp Meter |
Functions Measured |
AC Current, DC Current |
Jaw Capacity Busbars |
35mm |
Safety Category Levels |
CAT III |
Absolute Maximum Resistance Measurement |
400Ω |
Absolute Maximum Temperature Measurement |
+50°C |
Temperature Measurement Accuracy |
>80 % |
Absolute Maximum DC Voltage Measurement |
600V dc |
Manufacturer Model Number |
1000-305 |
Absolute Maximum AC Voltage Measurement |
600V ac |
Absolute Maximum AC Current Measurement |
600A ac |
Maximum Conductor Size |
35mm |
Best AC Voltage Accuracy |
±1(1% rdg + 5dgts) |
Best DC Voltage Accuracy |
±1(0.7% rdg + 2dgts) |
Best AC Current Accuracy |
±1(1.9% rdg + 5dgts) |
Voltage Measurement Resolution |
0 → 600V |
Absolute Maximum DC Current Measurement |
600A dc |
Best DC Current Accuracy |
±1(1.9% rdg + 5dgts) |
DC Current Measurement Range |
0 → 600 A |
