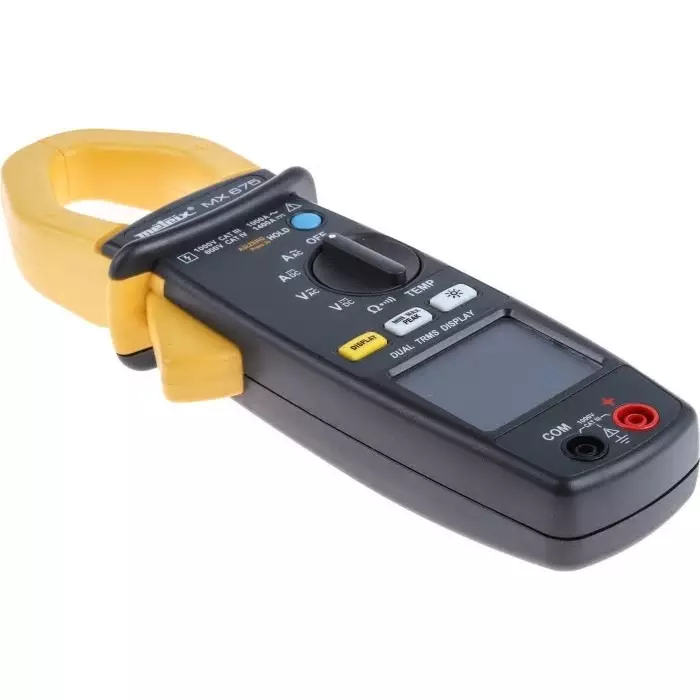

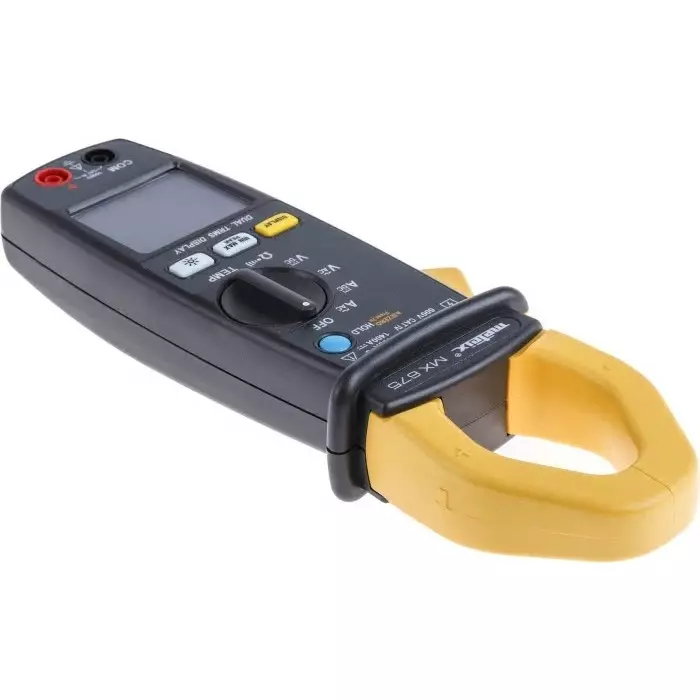

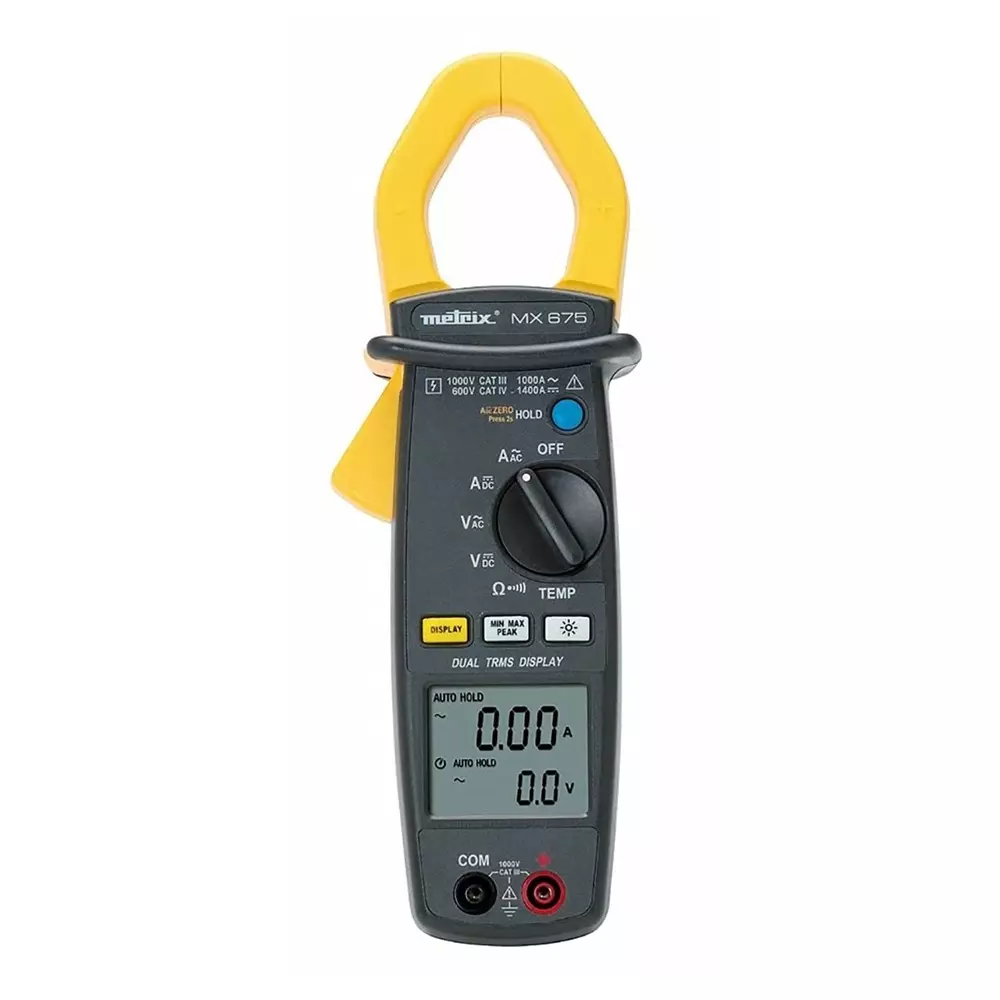

| Type of Product | MX675 Clamp Meter |
| Weight | 440g |
| Dimension | 257 x 80 x 43mm |
| Model No | MX675 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
MX675 Clamp Meter |
Weight |
440g |
Dimension |
257 x 80 x 43mm |
Model No |
MX675 |
Battery Type |
9V |
Non-Contact Voltage Detector |
No |
Power Source |
Battery |
Display Type |
Backlit LCD |
Battery Life |
30 h |
Width |
80mm |
Height |
43mm |
True Rms |
Yes |
Country of Origin |
Taiwan, Province Of China |
Safety Category |
CAT III 1000 V, CAT IV 600V |
Length |
257mm |
Safety Category Voltage |
600 V, 1000V |
Maximum Operating Temperature |
+40°C |
Minimum Operating Temperature |
0°C |
AC Voltage Measurement Resolution |
100mV |
Resistance Measurement Accuracy |
-1(1% rdg + 3dgts) |
Resistance Measurement Resolution |
100 mΩ |
Name of Manufacturer/Packer/Importer |
Metrix |
Pack of |
Each of 1 Piece |
Clamp Meter Type |
AC/DC Clamp Meter |
Functions Measured |
AC Current, AC Voltage, DC Current, DC Voltage, Frequency, Resistance |

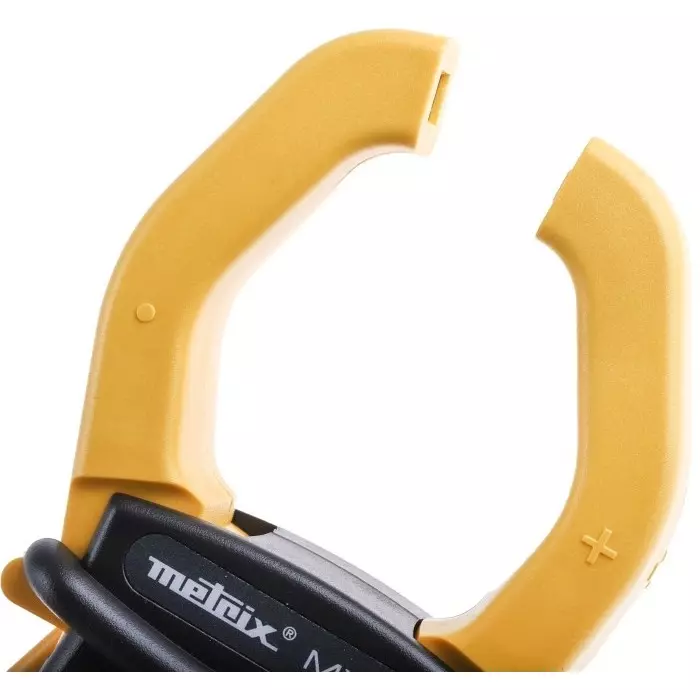

Jaw Capacity Busbars |
40mm |
Safety Category Levels |
CAT III, CAT IV |
Absolute Maximum Resistance Measurement |
9.999k Ω |
AC Current Measurement Resolution |
10mA |
Temperature Measurement Resolution |
0.5°C |
Absolute Maximum Temperature Measurement |
+1200°C |
DC Current Measurement Resolution |
10mA |
Temperature Measurement Accuracy |
-1(1% rdg + 2°C) |
Absolute Maximum DC Voltage Measurement |
1400V dc |
Manufacturer Model Number |
MX0675 |
Absolute Maximum AC Voltage Measurement |
1000V ac |
Absolute Maximum AC Current Measurement |
1000A ac |
Maximum Conductor Size |
40mm |
Best AC Voltage Accuracy |
-1(1% rdg + 5dgts) |
Best DC Voltage Accuracy |
-1(1% rdg + 2dgts) |
Best AC Current Accuracy |
-1(1.5% rdg + 5dgts) |
Voltage Measurement Resolution |
100mV |
Absolute Maximum DC Current Measurement |
1400A dc |
Best DC Current Accuracy |
-1(1.2% rdg + 5dgts) |
