| Type of Product | Leakage Current Clamp Meter, 6-Range RMS Type |
| Display | 6000 counts |
| Resolution | 0.001mA |
| Basic Accuracy | 6mA[50 to 60Hz:±(1.0 % + 8 dgt), LPF：±(1.5 % + 8 dgt)] 60mA to 6A[50 to 60Hz:±(1.0 % + 5 dgt), LPF：±(1.5 % + 8 dgt)] 60A[50 to 60Hz:±(1.5 % + 8 dgt), LPF：±(1.5 % + 8 dgt)] 100A[50 to 60Hz:±(1.5 % + 8 dgt), LPF：±(2.0 % + 8 dgt)] |
Type of Product |
Leakage Current Clamp Meter, 6-Range RMS Type |
Display |
6000 counts |
Resolution |
0.001mA |
Basic Accuracy |
6mA[50 to 60Hz:±(1.0 % + 8 dgt), LPF：±(1.5 % + 8 dgt)] 60mA to 6A[50 to 60Hz:±(1.0 % + 5 dgt), LPF：±(1.5 % + 8 dgt)] 60A[50 to 60Hz:±(1.5 % + 8 dgt), LPF：±(1.5 % + 8 dgt)] 100A[50 to 60Hz:±(1.5 % + 8 dgt), LPF：±(2.0 % + 8 dgt)] |
Operating Temperature Range |
(+)5 to (+)40℃, 80% RH or less (no condensation) |
Storage Temperature Range |
(-)20) to (+)60°C, 80% RH or less (no condensation) |
Power Supply |
3 x AAA batteries (batteries sold separately) |
Applicable Standard |
EN61010-1/IEC6101010-2-032 CAT.III AC300V |
Dimension (mm) |
Approximately 85x233x45 mm |
Country of Origin |
CHINA |
Current Range |
[AC] 6mA, 60mA, 600mA, 6A, 60A, 100A 6 ranges, true RMS rectification |
Monotaro ID |
13577561 |
Included Components |

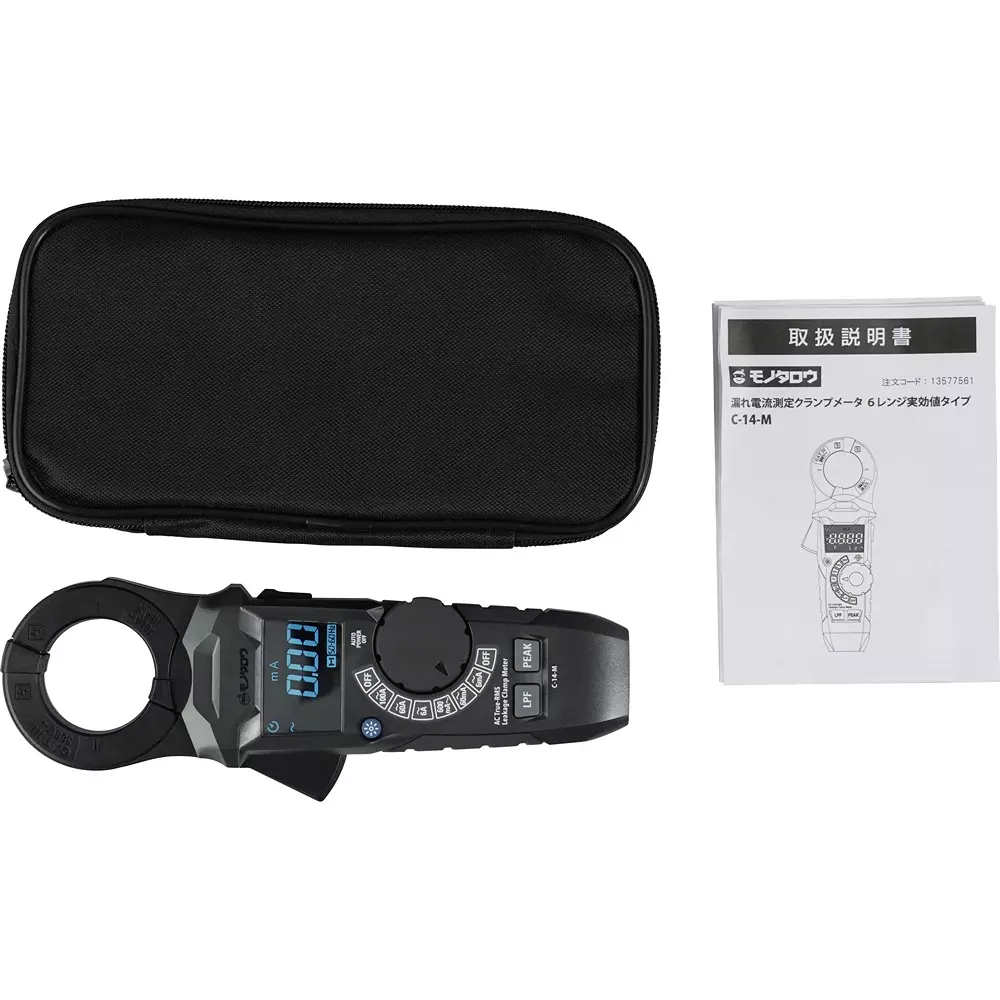

Instruction manual (with warranty), soft case |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Import Country |
Direct Import from Japan |
Mass (g) |
Approximately 360 (including batteries) |
Sampling Speed |
Approximately 5 times/second |
Storage Humidity (% RH) |
80 or less (no condensation) |
Operating Humidity (% RH) |
80 or less (no condensation) |
Conductor Diameter for Measurement |
Maximum Φ32mm |
Polarity Display |
Automatic switching "-" sign only |
Wave Detection |
TRUE RMS |
