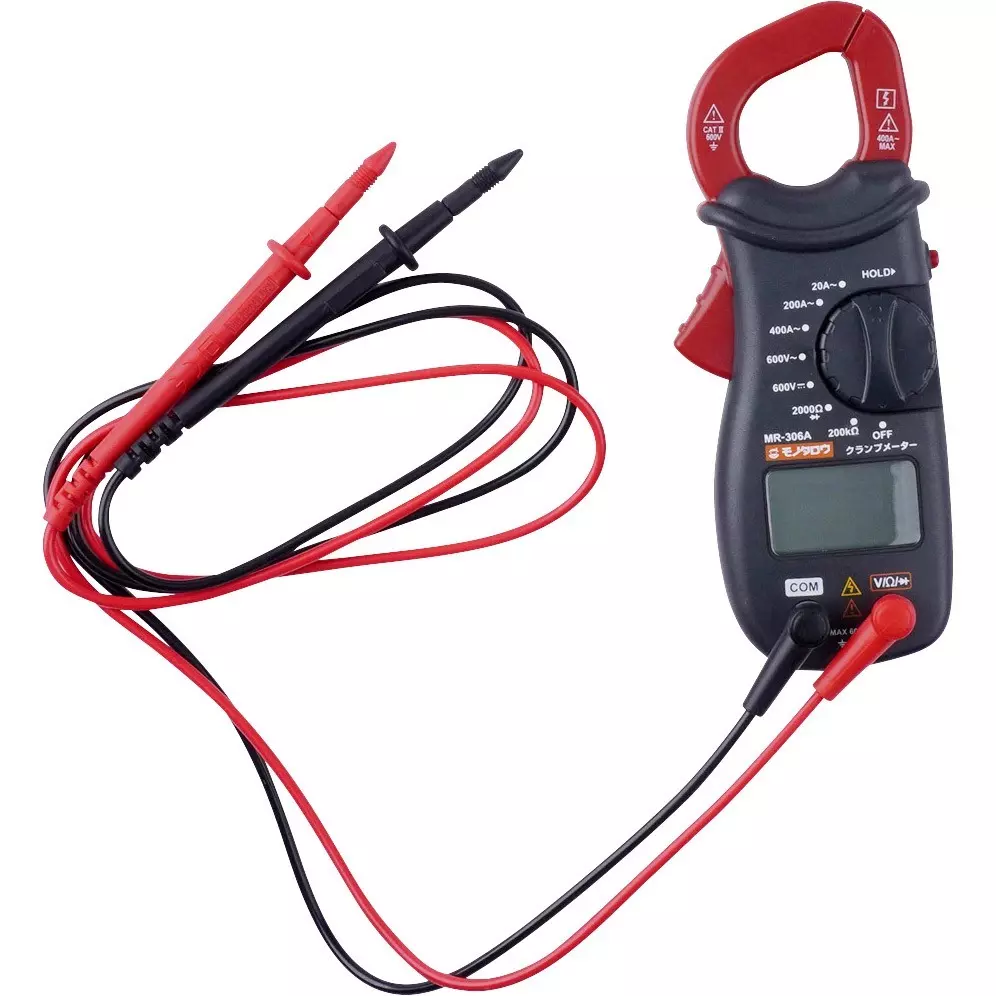

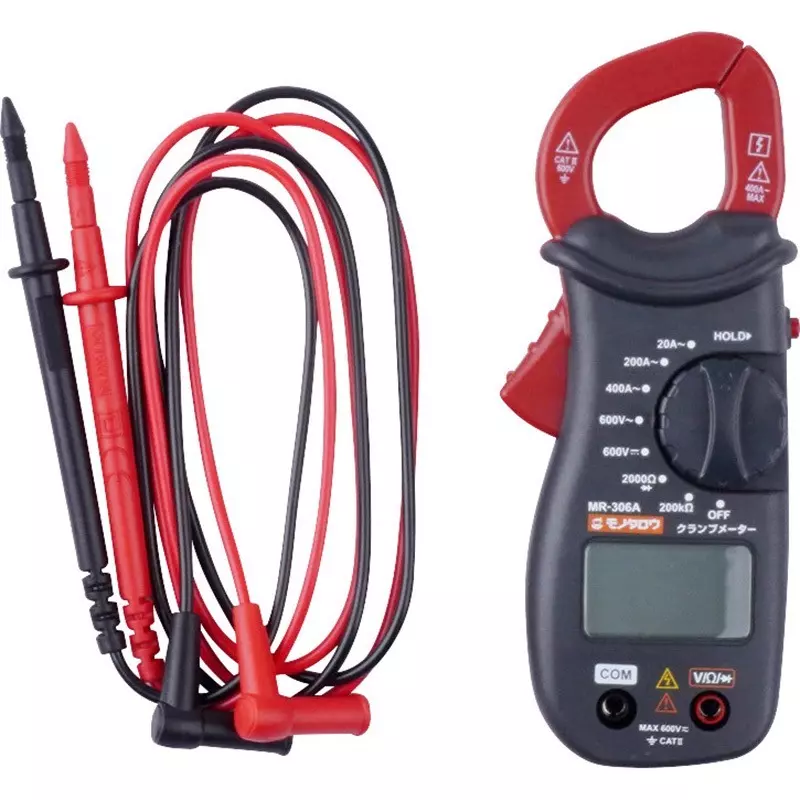

| Type of Product | Clamp Meter |
| Display | 3 1/2 digit LCD |
| Model No | MR-306A |
| Voltage (AC) | 600 V |
Type of Product |
Clamp Meter |
Display |
3 1/2 digit LCD |
Model No |
MR-306A |
Voltage (AC) |
600 V |
Voltage (Dc) |
600 V (minimum range: 9V) |
Display Type |
1 |
Accuracy |
AC voltage ±(1.2%+3) DC voltage ±(1.0%+2) AC current ±(3.0%+5d)(20A)/±(2.5%+5d)(200A)/±(2.5%+5d)( 400A) Resistance ±(1.2%+2)(2000Ω)/±(1.2%+2)(200kΩ) |
Resolution |
AC voltage 1V DC voltage 1V AC current 10mA(20A)/100mA(200A)/1A(400A) Resistance 1Ω(2000Ω)/100Ω(200kΩ) |
AC Current (A) |
20/200/400 |
Operating Temperature Range |
0 to 40℃ |
Power Supply |
Battery CR2032 x 3 |
Sample Rate |
3 times/s |
Resistance (Ω) |
2000/200k |
Country of Origin |
CHINA |
Monotaro ID |
37673255 |
Included Components |
Instruction manual, test lead bar, test battery |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Import Country |
Direct Import from Japan |
Clamp Diameter (Φmm) |
(Possible) 25 |
Mass (g) |
127 |
Clamp Opening |
27 mm |
Cover Material |
ABS |
