| Type of Product | Clamp Sensor |
| Model No | ACS101 |
| DC Current | 60/600 |
| AC Current (A) | 60/600 |
Type of Product |
Clamp Sensor |
Model No |
ACS101 |
DC Current |
60/600 |
AC Current (A) |
60/600 |
Power Supply |
R03 (AAA) 1.5VX2 |
Part No |
65-0524-88 |
Type |
Clamp sensor |
Country of Origin |
Japan |
Monotaro ID |
72348579 |
Width (mm) |
71 |
Name of Manufacturer/Packer/Importer |
Sanwa Electric Instrument Co., Ltd. |
Import Country |
Direct Import from Japan |

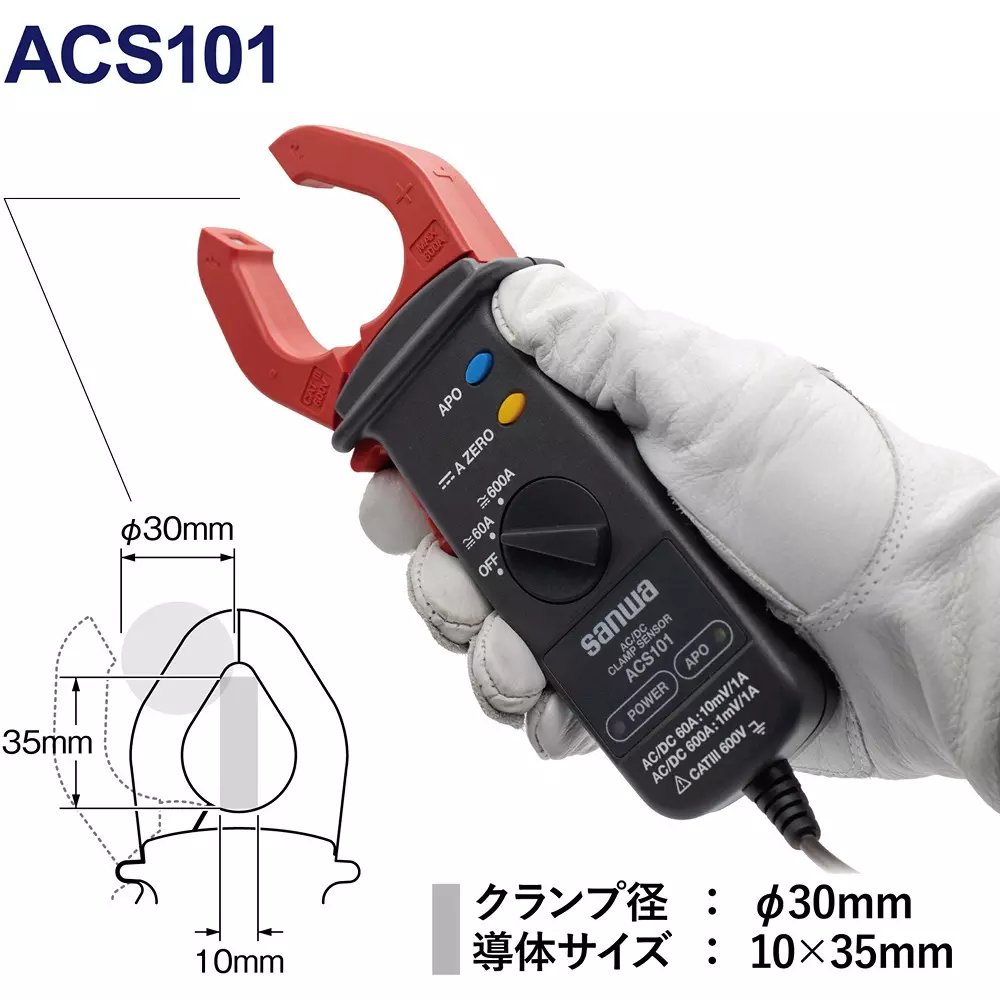

Clamp Diameter (Φmm) |
30 |
Mass (g) |
About 260 |
Dimension (WxDxH) |
71x190x37 mm |
RoHS Directive |
Correspondence |
Length (mm) |
37 |
Operating Temperature / Humidity Range |
5 ° C to 40 ° C Humidity is as follows (no condensation) 80% RH (maximum) at 5 ° C to 31 ° C, and linearly decreases from 80% RH to 50% RH at 31 ° C or higher and 40 ° C. |
Compatible Models |

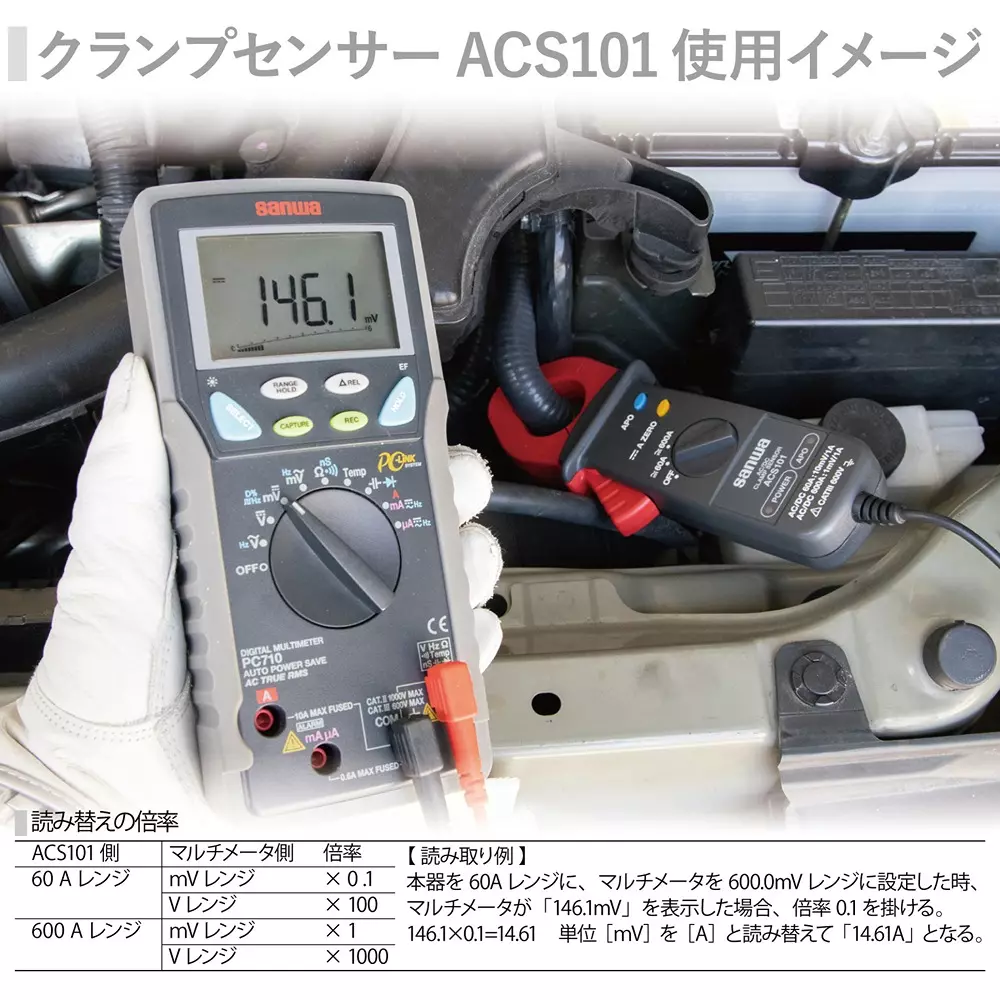

PC7000，PC710，PC700，PC720M，PC773，RD701，RD700，CD772.CD771，CD771，PC20，CD732 |
Analog Output |
ACA 60A:10mV/A ACA 600A:1mV/A DCA 60A:10mV/A DCA 600A:1mV/A |
Height (mm) |
190 |
Operation Environment |
23 ± 5 ℃, 80% RH or less (no condensation) |
Overall Length (m) |
About 1.5 |
