Sanwa Ac Clamp Meter Clamp meter Type R03 (AAA) 1.5 V x 2 Power Supply 400/600 V Voltage, DCM400

Name: Sanwa Ac Clamp Meter Clamp meter Type R03 (AAA) 1.5 V x 2 Power Supply 400/600 V Voltage, DCM400
Brand: Sanwa
SKU: TES.DIG.346072970
Price: 12979 INR
Availability: InStock

Visit the Sanwa Store

EMI starts at ₹1153/month. No Cost EMI available.

Available offers

Get Flat 10% off on your First Orders above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 3% off on First Order above ₹3,000

View

Features

Type of Product	Ac Clamp Meter
Features	4000 counts/42 segment analog bar graph Frequency measurement (clamp and test lead) Data hold Continuity buzzer Auto power off (approx. 30 minutes) cannot be canceled Battery consumption display function
Model No	DCM400
Voltage (Dc)	400/600 V

More Sanwa Digital Clamp Meter products More Digital Clamp Meter products

100% Original Products

Secure Payments

100% Buyer Protection

Top Brands

specifications

Type of Product	Ac Clamp Meter
Features	4000 counts/42 segment analog bar graph Frequency measurement (clamp and test lead) Data hold Continuity buzzer Auto power off (approx. 30 minutes) cannot be canceled Battery consumption display function
Model No	DCM400
Voltage (Dc)	400/600 V
AC Current (A)	40/400
Power Supply	R03 (AAA) 1.5V x 2
Sample Rate	2 (numerical value section), 20 (bar graph section)
Resistance (Ω)	400
Safety Standard	IEC61010 CAT.Ⅲ300V CAT.Ⅱ600V
Continuity Check	Buzzer sounds at 40Ω or less Open voltage: Approx. 1.5V
Frequency (Hz)	(Current) 20-4k/10k, (Voltage) 4k/40k/400k/1M
AC Voltage (Volts)	400/600
Type	Clamp meter
Country of Origin	Japan
Monotaro ID	3358774
Included Components	Test lead (TL-23a: total length approx. 1.1m / pin tip 18mm), carrying case (C-DCM400), instruction manual
Width (mm)	50
Name of Manufacturer/Packer/Importer	Sanwa Electric Instrument Co., Ltd.
Import Country	Direct Import from Japan

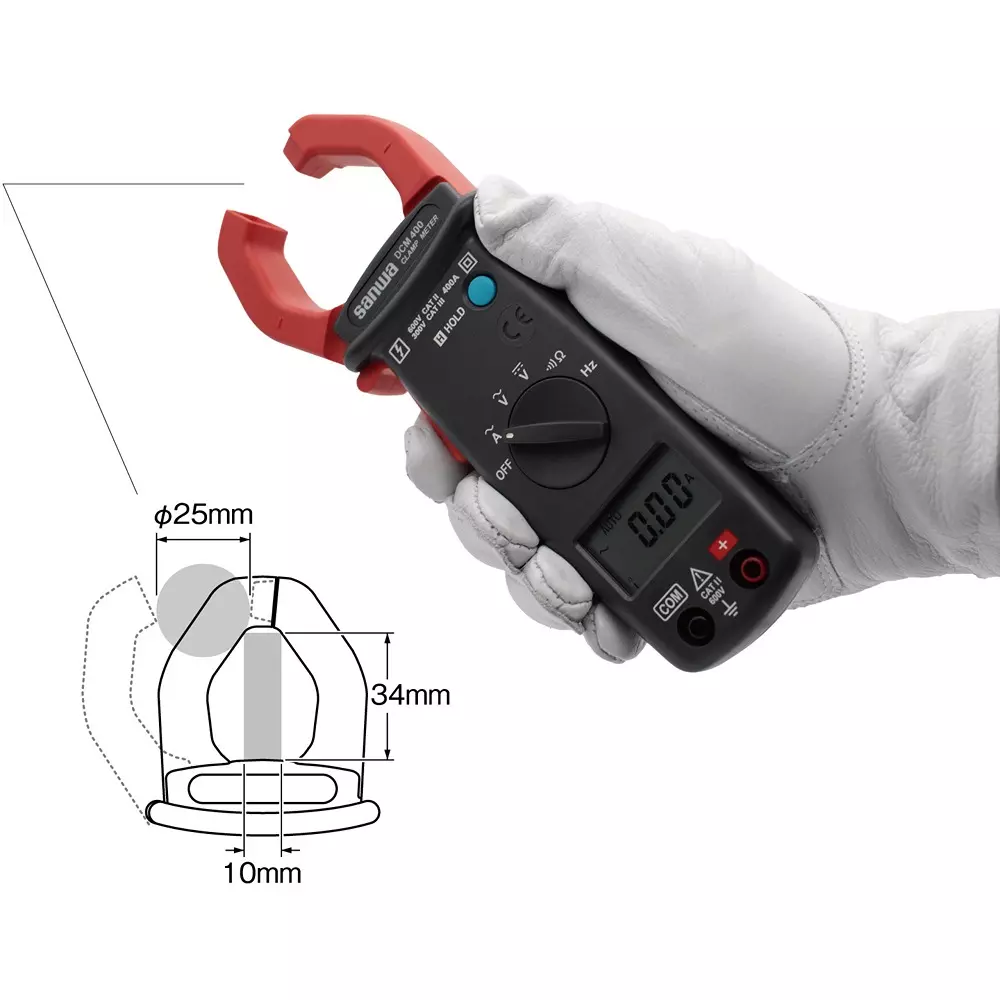

Clamp Diameter (Φmm)	25
Mass (g)	About 230
Dimension (WxDxH)	50x193x28 mm
RoHS Directive	Correspondence
Trusco Part No.	284-8473
Length (mm)	193
Height (mm)	28
Operation Environment	5 to 40°C (no condensation) 5 to 31°C: 80% RH or less. 31 to 40°C: Linearly decreasing from 80% RH to 50% RH
Battery Life (hours)	Continuous use: Approx. 150 (manganese battery)
Digit Number of Display	4000
Frequency Characteristic	ACA 50/60Hz：±(1.9%+5) 60 to 500Hz：±(2.5%+5), ACV 50 to 500Hz：±(1.5%+5)
Temperature/Humidity Range for Storage	23±5℃ 80% RH or less (no condensation)
Dimensions (H x W x D) (mm)	193x50x28
Conductor Dia (mm)	10x34
