| Type of Product | Clamp Meter |
| Features | Safety design conforming to IEC61010 Compact pocket size True RMS conversion method Uses robust CT sensor Auto power off (approx. 15 minutes) function can be disabled Backlight |
| Model No | DCL11R |
| AC Current (A) | 60/300 |
Type of Product |
Clamp Meter |
Features |
Safety design conforming to IEC61010 Compact pocket size True RMS conversion method Uses robust CT sensor Auto power off (approx. 15 minutes) function can be disabled Backlight |
Model No |
DCL11R |
AC Current (A) |
60/300 |
Power Supply |
LR03 (AAA alkaline) x 2 |
Sample Rate |
2 (number part) |
Safety Standard |
IEC61010 CAT.Ⅲ300V |
Type |
Clamp meter |
Country of Origin |
Japan |
Monotaro ID |
20911503 |
Included Components |
Carrying pouch (C-DCL10), instruction manual |
Width (mm) |
54 |
Name of Manufacturer/Packer/Importer |
Sanwa Electric Instrument Co., Ltd. |
Import Country |
Direct Import from Japan |

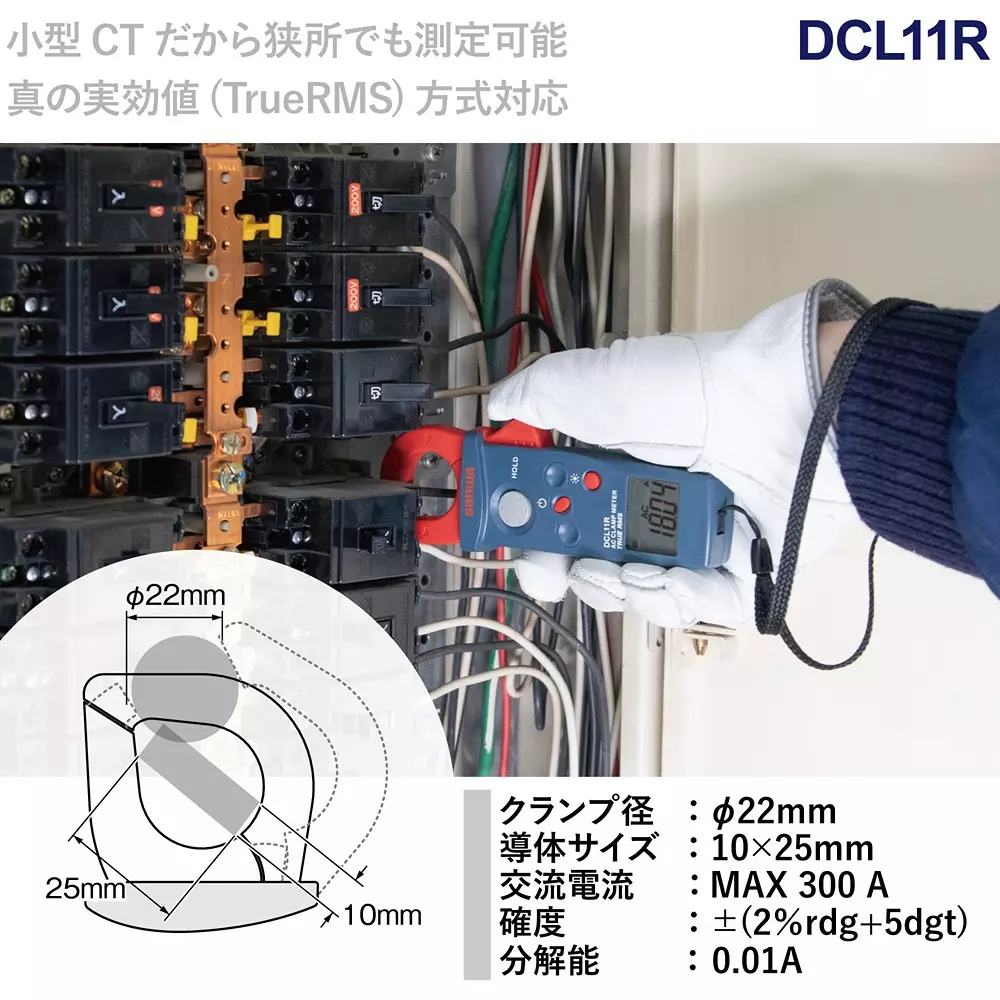

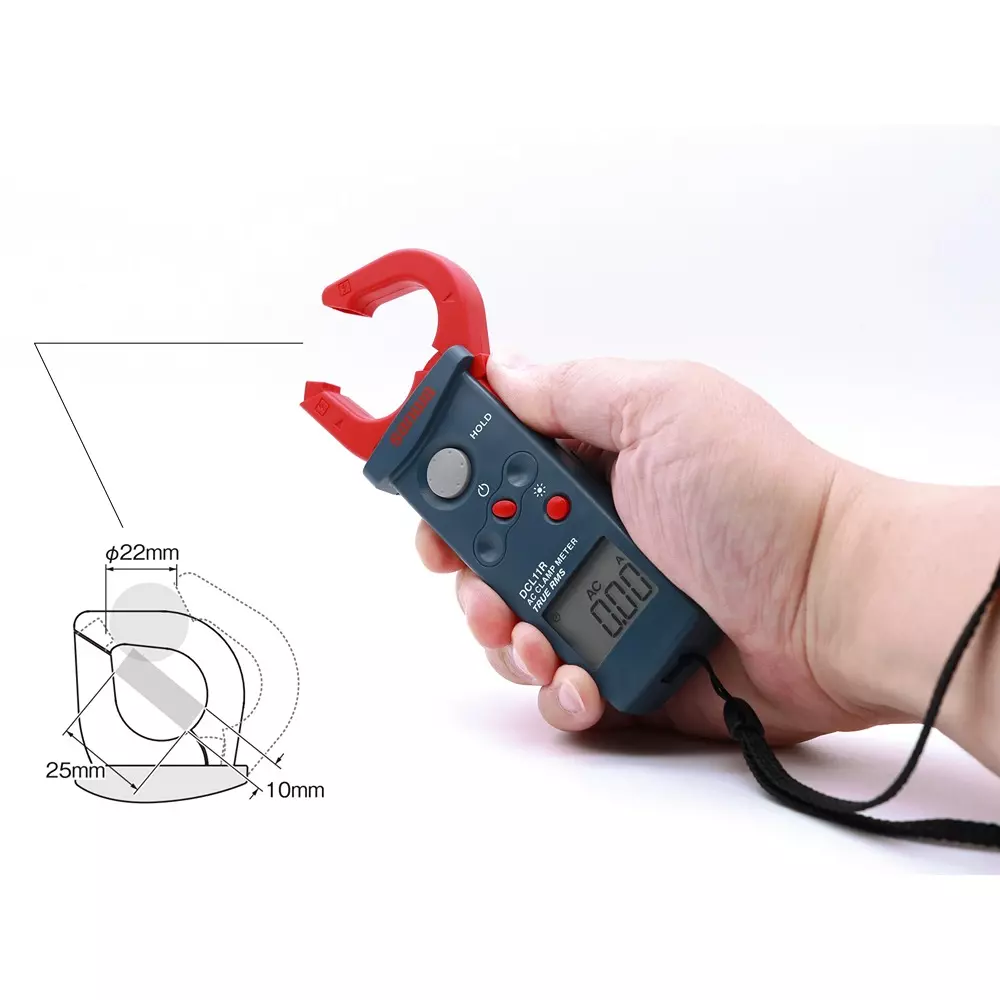

Clamp Diameter (Φmm) |
22 |
Mass (g) |
About 120 |
Dimension (WxDxH) |
54x145x31 mm |
RoHS Directive |
Correspondence |
Trusco Part No. |
779-5831 |
Length (mm) |
31 |
Height (mm) |
145 |
Operation Environment |
5 to 40°C (no condensation) 5 to 31°C: 80% RH or less. 31 to 40°C: Linearly decreasing from 80% RH to 50% RH |
Battery Life (hours) |
About 500 |
Digit Number of Display |
6000 |
Frequency Characteristic |
5 to 400Hz |
Temperature/Humidity Range for Storage |
23±5℃ 80% RH or less (no condensation) |
Dimensions (H x W x D) (mm) |
145x54x31 |
Conductor Dia (mm) |
10x25 |
