| Type of Product | Clamp Meter |
| Display | LCD: Maximum 9999 counts (upper and lower numeric parts) |

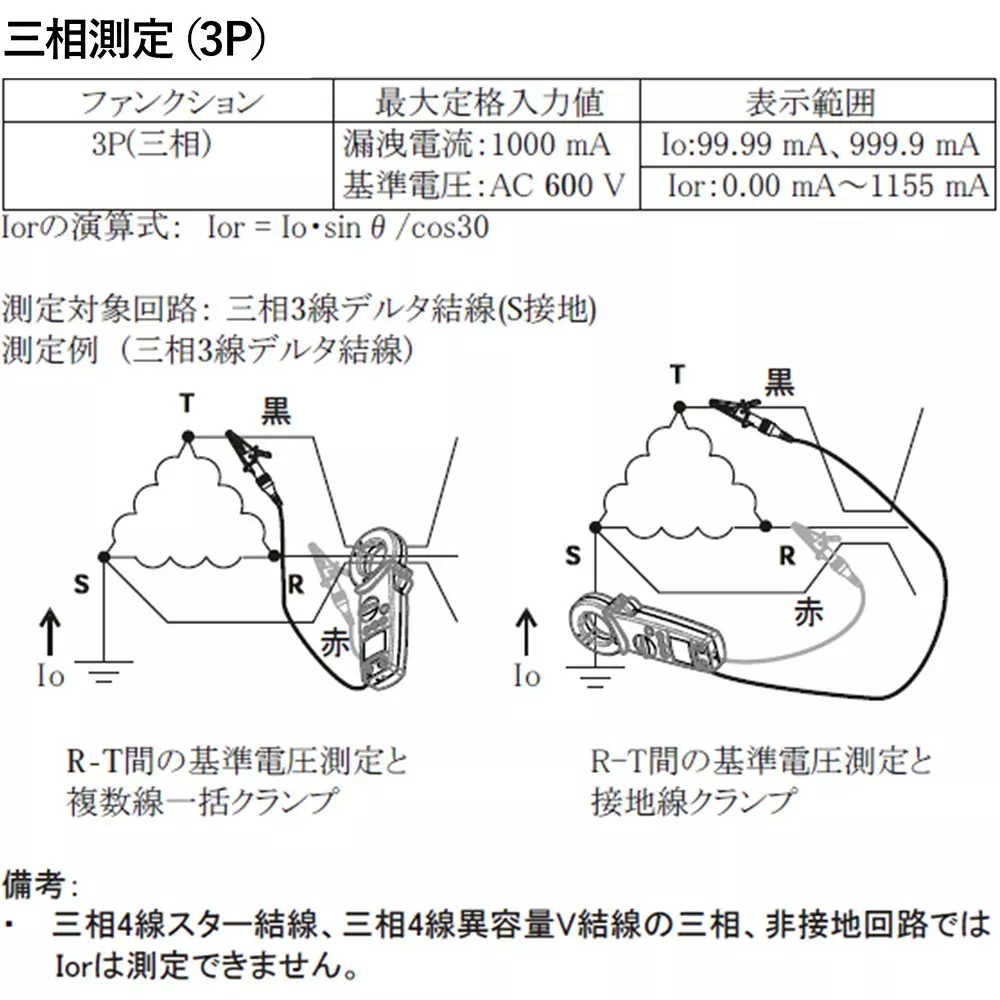

| Features | Ior leak clamp that can also measure load current, making insulation management easier in live lines Measures resistive leakage current (Ior) in live lines Simultaneous ground fault detection for R and T phases in three-phase, three-wire delta connections Integrated clamp sensor Simultaneous display of Ior and Io values Two screens can be switched between Max hold mode to hold maximum value AVG mode (displays moving average value) to make fluctuating numbers easier to read Data hold function Backlit display Auto power save (approx. 30 minutes) can be disabled Long-term operation of approximately 170 hours (approx. 1 week) continuously with two AAA alkaline batteries (approx. 80 hours when measuring load current (A)) Data can be collected on a PC (requires optional I0R-USB, sold separately) |
| Model No | I0R500 |
Type of Product |
Clamp Meter |
Display |
LCD: Maximum 9999 counts (upper and lower numeric parts) |
Features |

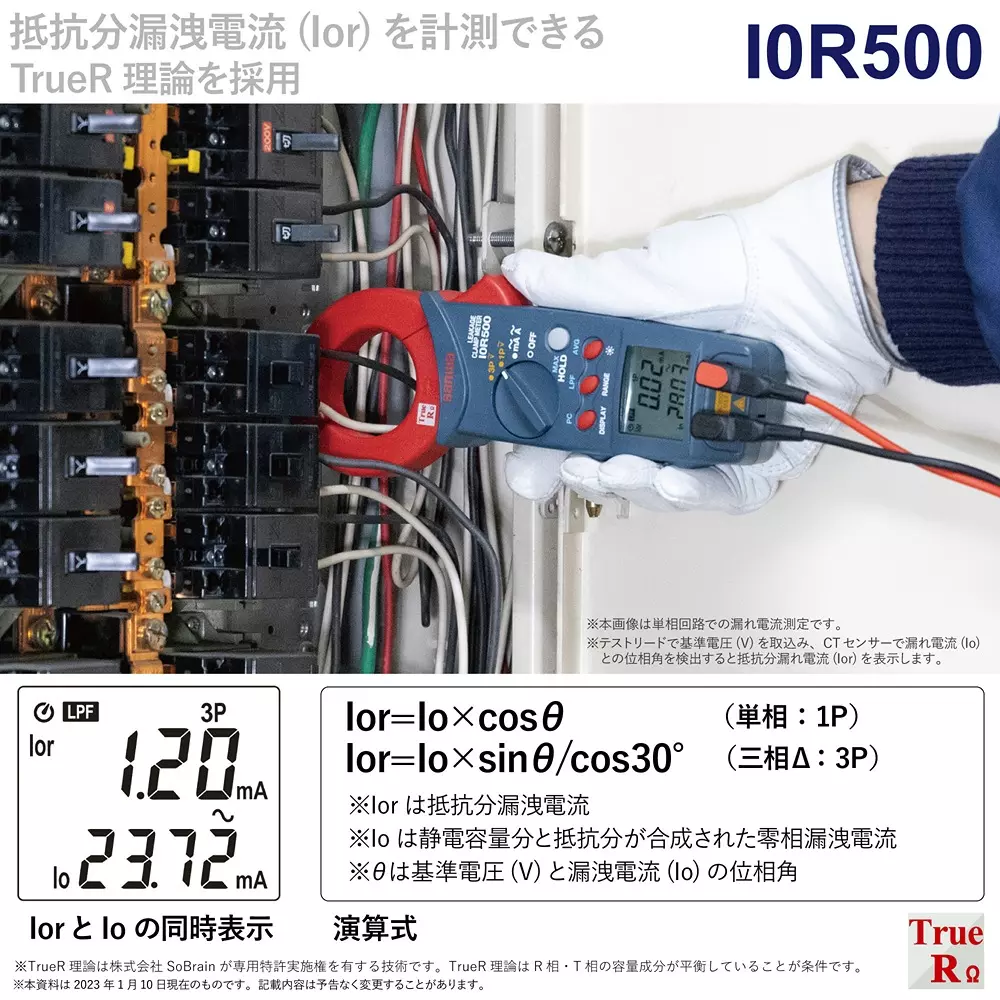

Ior leak clamp that can also measure load current, making insulation management easier in live lines Measures resistive leakage current (Ior) in live lines Simultaneous ground fault detection for R and T phases in three-phase, three-wire delta connections Integrated clamp sensor Simultaneous display of Ior and Io values Two screens can be switched between Max hold mode to hold maximum value AVG mode (displays moving average value) to make fluctuating numbers easier to read Data hold function Backlit display Auto power save (approx. 30 minutes) can be disabled Long-term operation of approximately 170 hours (approx. 1 week) continuously with two AAA alkaline batteries (approx. 80 hours when measuring load current (A)) Data can be collected on a PC (requires optional I0R-USB, sold separately) |
Model No |
I0R500 |
AC Current (A) |
99.99m, 999.9m, 99.99, 500 |
Power Supply |
LR03 (AAA alkaline) x 2 |
Sample Rate |
About 4 |
AC Voltage (Volts) |
600 |
Type |
IOR leak clamp meter |
Country of Origin |
Japan |
Monotaro ID |
60854175 |
Included Components |

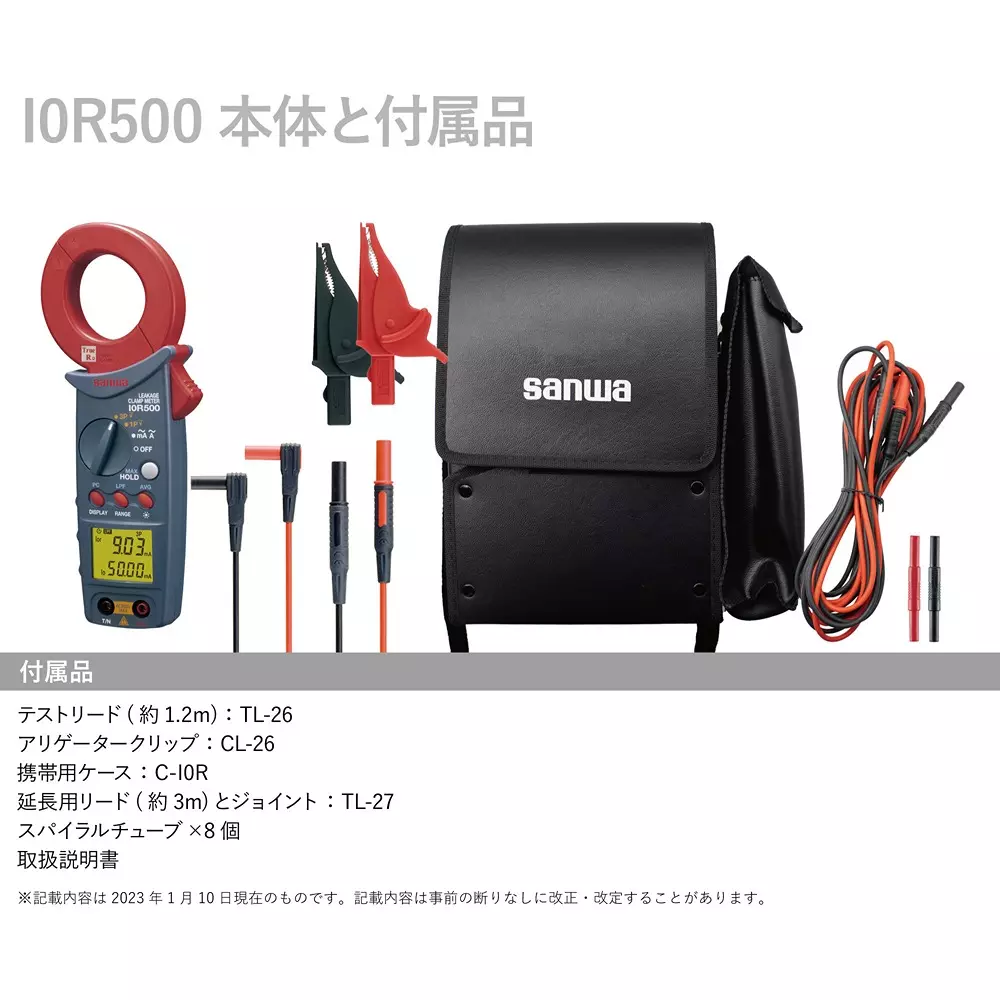

Test lead: TL-26 (total length approx. 1.2 m) Extension lead set: TL-27 (total length approx. 3 m) Alligator clip: CL-26 Spiral tube 8 pieces Carrying case: C-I0R Instruction manual |
Width (mm) |
83 |
Name of Manufacturer/Packer/Importer |
Sanwa Electric Instrument Co., Ltd. |
Import Country |
Direct Import from Japan |
Clamp Diameter (Φmm) |
35 |
Mass (g) |
About 325 |
Dimension (WxDxH) |
83x206x38 mm |
RoHS Directive |
Correspondence |
Trusco Part No. |
448-5076 |
Length (mm) |
38 |
Specifications |

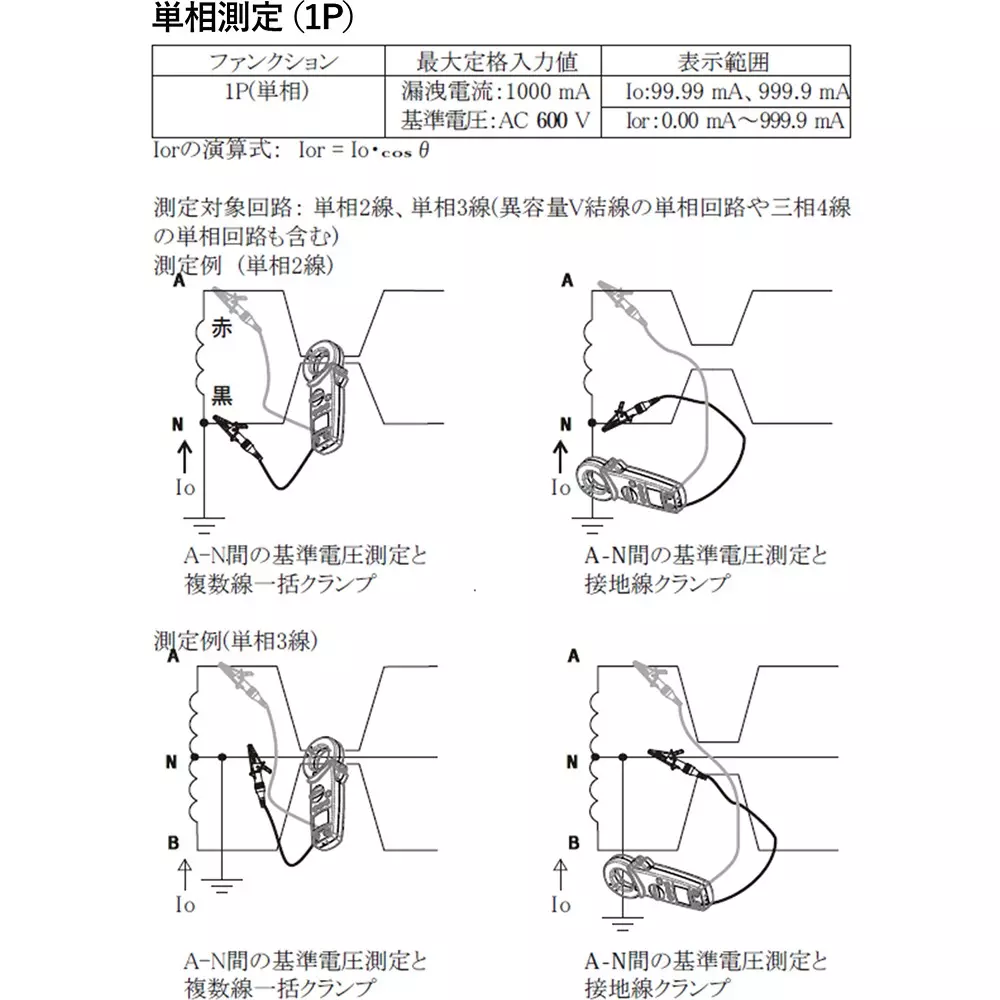

●LPF function: ON●Filter frequency performance: Approximately 150Hz●Amplitude ratio: -3dB at 150Hz, -7dB at 180Hz●Resistive leakage current (Ior) 1P (single phase): 0m to 99.99mA, 100m to 999.9mA●Resistive leakage current (Ior) 3P (three phase): 0m to 99.99mA, 100m to 999.9mA, 1000m to 1155mA |
Height (mm) |
206 |
Operation Environment |
5 to 40°C (no condensation) 5 to 31°C: 80% RH or less. 31 to 40°C: Linearly decreasing from 80% RH to 50% RH |
Temperature/Humidity Range for Storage |
23±5℃ 80% RH or less (no condensation) |
Dimensions (H x W x D) (mm) |
206x83x38 |
Insulation Resistance (MOhm) |
Display range: 0 to 9.999 (calculated value), Accuracy: Unspecified |
Leakage Current (mA) |
(AC) 99.99m / 999.9m |
