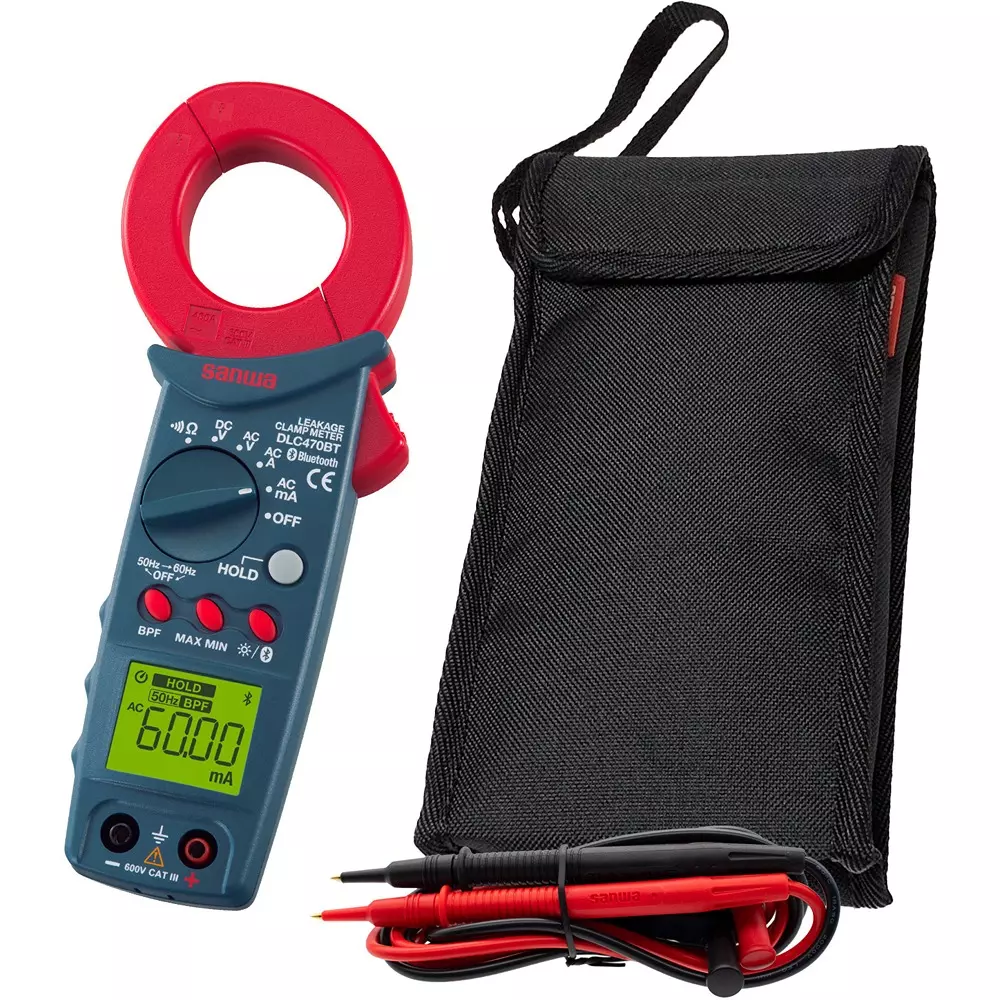

| Type of Product | Clamp Meter |
| Model No | DLC470BT |
| Voltage (AC) | 600 |
| Voltage (Dc) | 600 V |
Type of Product |
Clamp Meter |
Model No |
DLC470BT |
Voltage (AC) |
600 |
Voltage (Dc) |
600 V |
Continuity |
Sounds at about 30Ω or less, open circuit voltage 0.9V |
AC Current (A) |
60/400 |
Power Supply |
LR03 (AAA alkaline) x 2 |
Sample Rate |
2 |
Resistance (Ω) |
999.9 |
Safety Standard |
IEC61010 CAT.Ⅲ600V |
Continuity Check |
Sounds at approximately 30 ohms or less, open voltage 0.9V |
Interface |
iOS Ver. 11 or later / Windows 10 or later |
Part No |
65-2499-65 |
Size |
83x206x38 |
AC Voltage (Volts) |
600 |
Type |
Clamp meter |
Country of Origin |
Japan |
Monotaro ID |
76063734 |
Name of Manufacturer/Packer/Importer |
Sanwa Electric Instrument Co., Ltd. |
Import Country |
Direct Import from Japan |

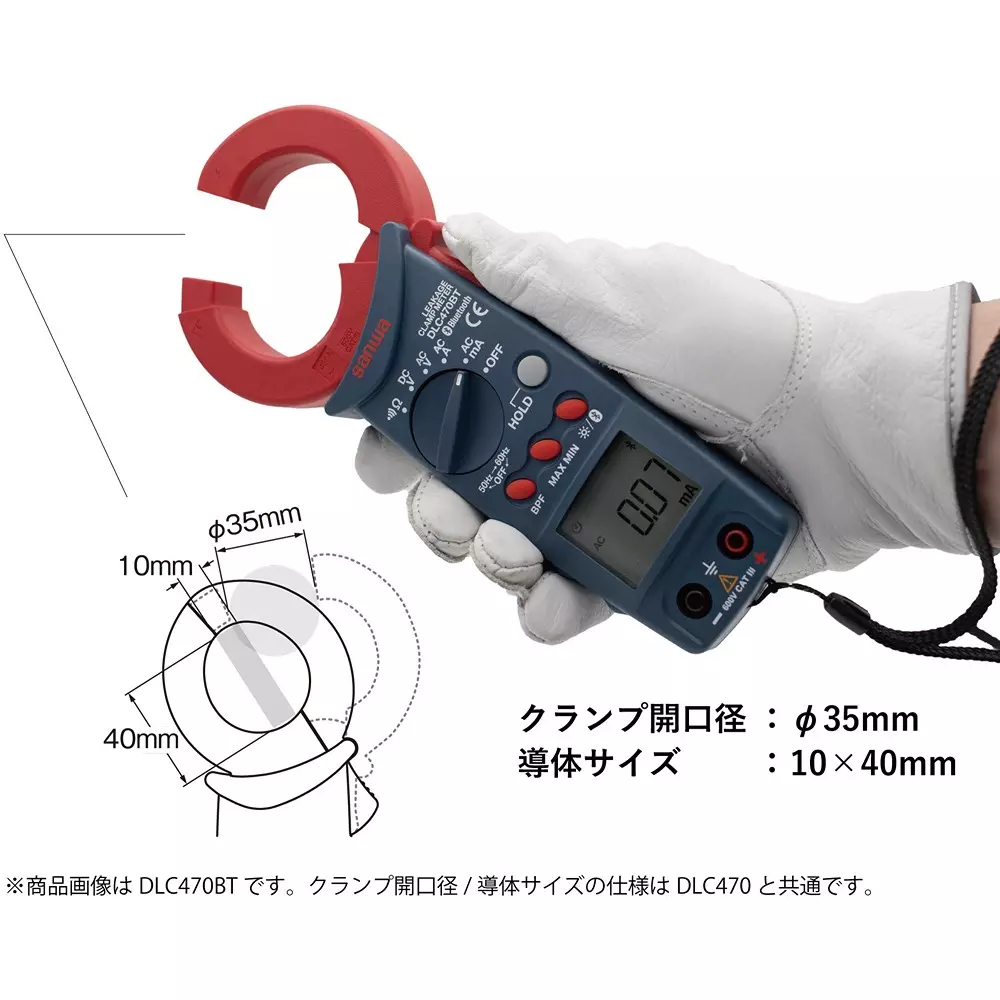

Clamp Diameter (Φmm) |
35 |
Mass (g) |
About 320 |
RoHS Directive |
Correspondence |
Specifications |

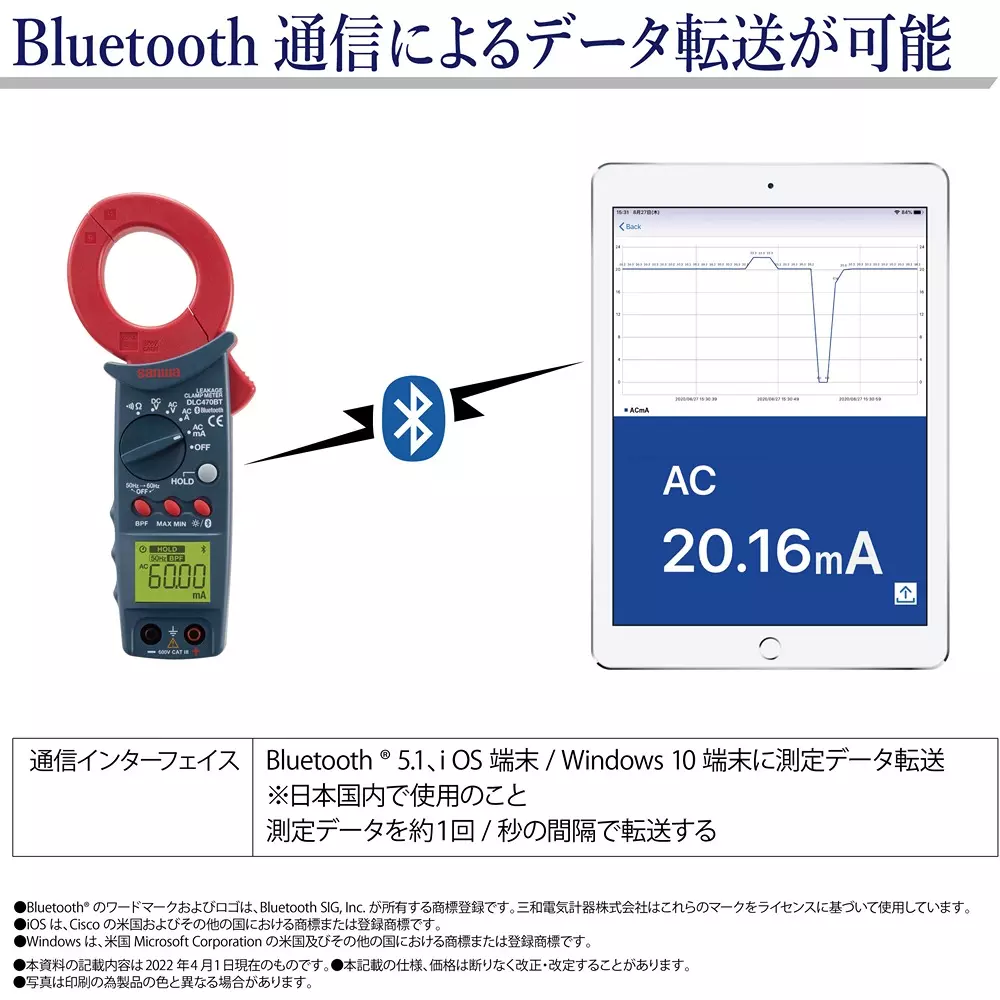

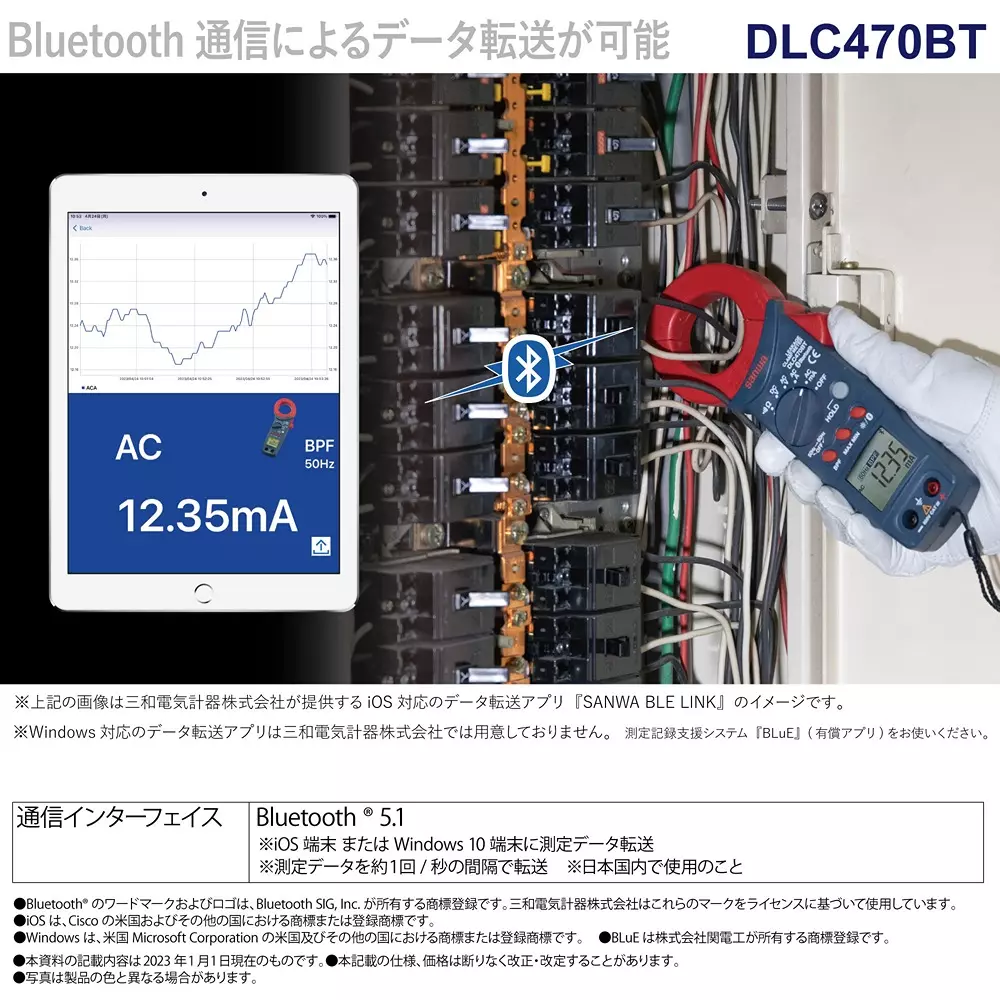

Communication: Bluetooth(R) 5.1 Measurement data transfer interval: Approximately once per second |
Battery Life (hours) |
Bluetooth function OFF: Approx. 42, Bluetooth function ON: Approx. 40 (backlight off) |
Digit Number of Display |
6000(V/A) 9999(Ω) |
Frequency Characteristic |
40 to 400Hz |
Dimensions (H x W x D) (mm) |
206x83x38 |
Conductor Dia (mm) |
10x40 |
Leakage Current (mA) |
AC：60/600 |
