Ships within 5 days
View
View
View
View

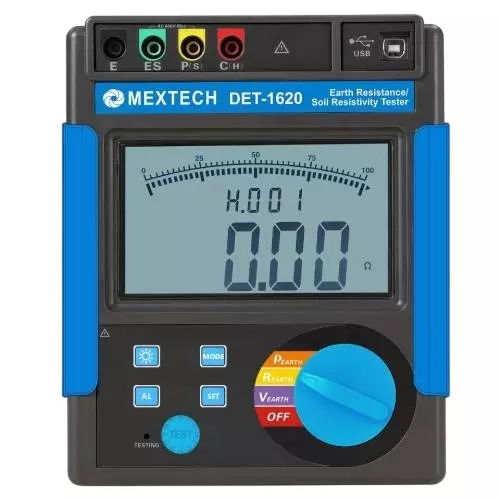

| Model No | DET1620 |
| Type of Product | Digital Earth Tester |
| Operating Temperature | -10°C to 40°C |
| Power Supply | 6 × 1.5V LR14 Batteries |
Model No |
DET1620 |
Type of Product |
Digital Earth Tester |
Operating Temperature |
-10°C to 40°C |
Power Supply |
6 × 1.5V LR14 Batteries |
Display |
4 LCD Display |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
SR ENTERPRISES |
Included Components |
Tester, Meter Case, USB Communication Cable, 6 × LR14 Batteries, Manual |
Operating Humidity |
<80% RH |
Measurement type |
Earth Resistance, Soil Resistivity, Grounding Voltage, Leakage Current, AC Current, DC Resistance |
Earth Resistance Measurement |
0.00 Ω - 30.00 kΩ, 2/3/4-Pole |
Test Frequency |
128 Hz / 111 Hz / 105 Hz / 94 Hz |
Measurement Method |
2-Wire, 3-Wire, 4-Wire |
Working Voltage |
9V ±0.1V (Base), 9V ±1.5V (Working) |
Interference Voltage |
<20 V |
Auxiliary Earth Resistance |
<100 Ω (Base), <30 kΩ (Working) |
Soil Resistivity |
0.00 Ω·m - 9000 kΩ·m |
Interference Current |
<2 A |
Measurement Technology |
FFT (Fast Fourier Transform), AFC (Automatic Frequency Control) |
