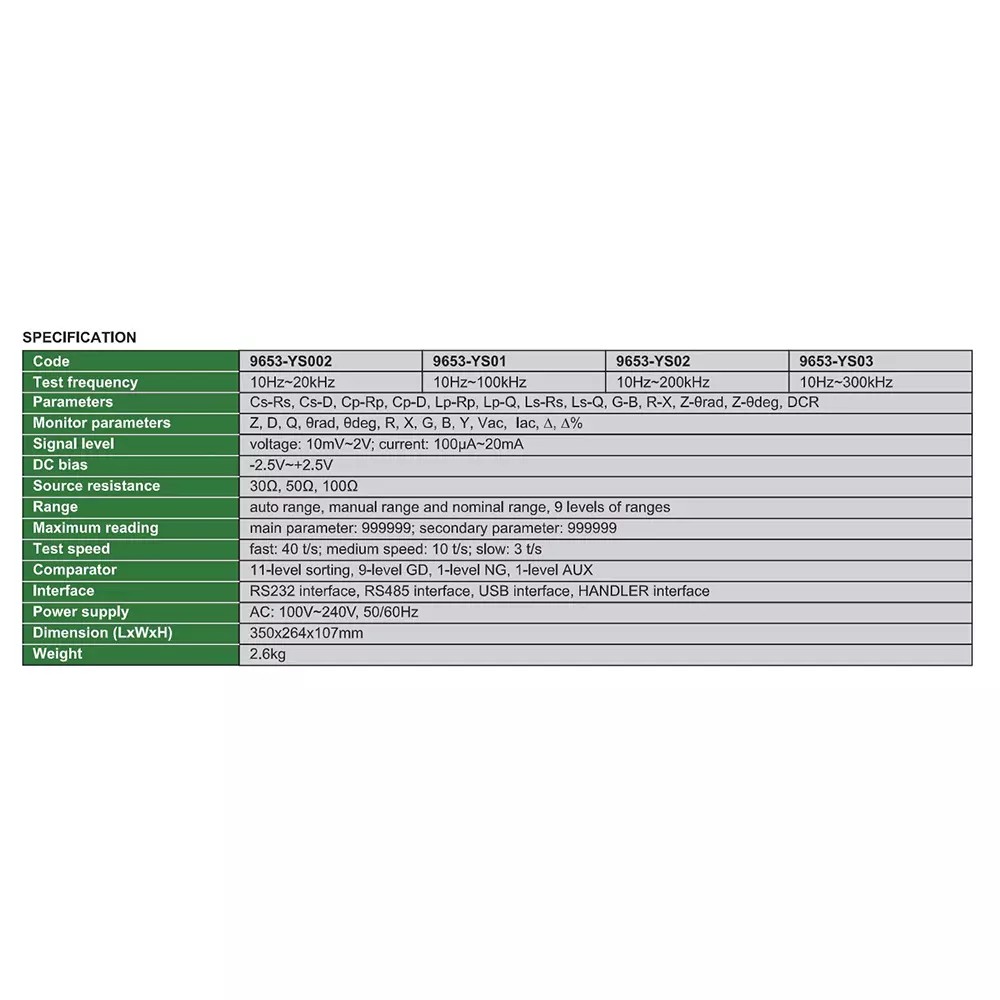

| Weight | 2.6 Kg |
| Interface | RS232, RS485, USB, HANDLER |
| Package Contains | 1 x Main Unit, 1 x Kelvin Clip Lead, 1 x Test Fixture, 1 x Short Circuit Plate |
| Country of Origin | India |
Weight |
2.6 Kg |
Interface |
RS232, RS485, USB, HANDLER |
Package Contains |
1 x Main Unit, 1 x Kelvin Clip Lead, 1 x Test Fixture, 1 x Short Circuit Plate |
Country of Origin |
India |
DC Bias Measurement |
-2.5 V to +2.5 V |
Dimension |
350x264x107 mm |
Power Supply |
100-240 V, 50/60 Hz |
Test Frequency |
10 Hz - 20 kHz |
Voltage |
10 mV to 2 V |
Type of Product |
LCR Meter |
Resistance |
Source: 30 Ω, 50 Ω, 100 Ω |
Model No |
9653-YS002 |
Speed |
Test Speed: Fast/Medium/Slow: 40/10/3 t/s |
Name of Manufacturer/Packer/Importer |
Insize |
Parameters Measured |
Cs-Rs, Cs-D, Cp-Rp, Cp-D, Lp-Rp, Lp-Q, Ls-Rs, Ls-Q, G-B, R-X, Z-θrad, Z-θdeg, DCR |
Range |
Auto Range, Manual Range and Nominal Range, 9 Level of Ranges |
Maximum Reading |
Main Parameter: 999999, Secondary Parameter: 999999 |
Current |
100 µA-20 mA |
Comparator |
11 Level Sorting, 9 Level GD, 1 Level NG, 1 Level Aux |
Parameters displayed |
Z, D, Q, θrad, θdeg, R, X, G, B, Y, Vac, Iac, Δ, Δ% |
