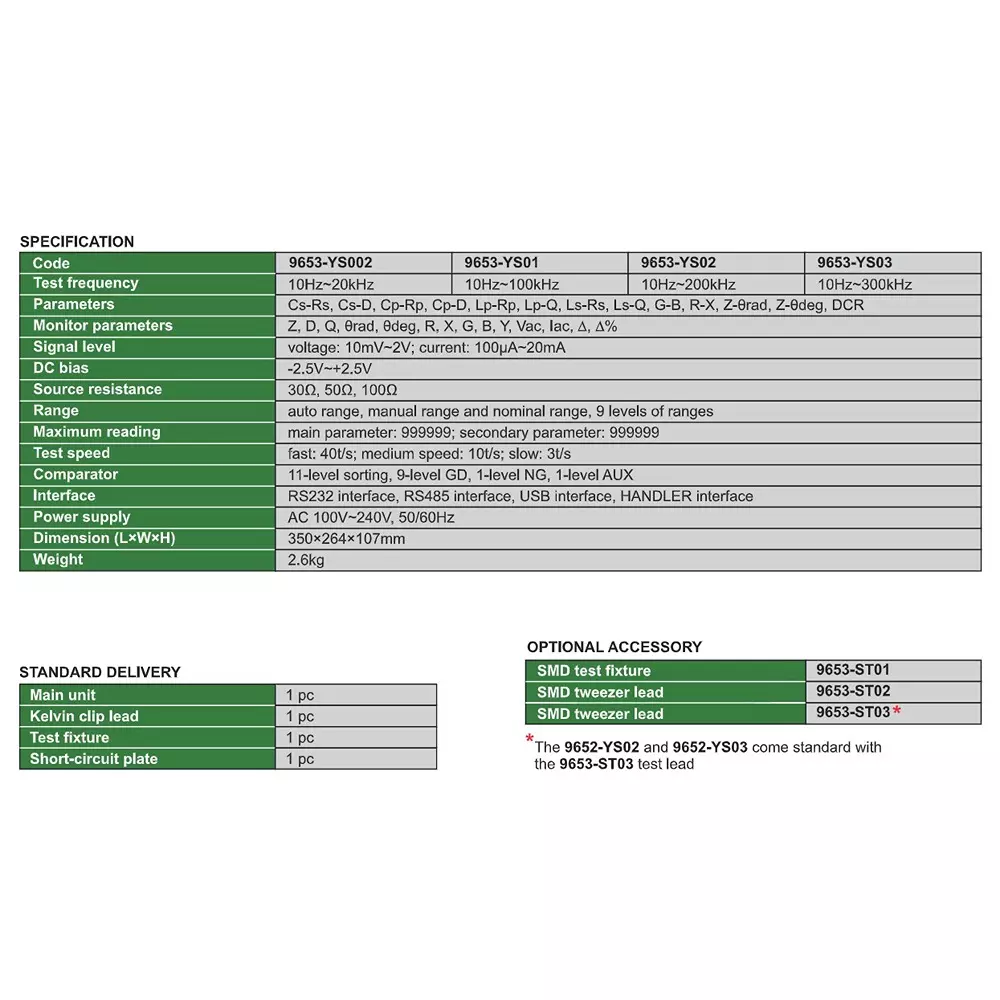

| Weight | 2.6 Kg |
| Interface | RS232, RS485, USB, HANDLER |
| Package Contains | 1 x Main Unit, 1 x Kelvin Clip Lead, 1 x Test Fixture, 1 x Short Circuit Plate |
| Country of Origin | China |
Weight |
2.6 Kg |
Interface |
RS232, RS485, USB, HANDLER |
Package Contains |
1 x Main Unit, 1 x Kelvin Clip Lead, 1 x Test Fixture, 1 x Short Circuit Plate |
Country of Origin |
China |
Display Type |
3.5 inch (88.9 mm) TFT LCD Display |
DC Bias Measurement |
-2.5 V to +2.5 V |
Dimension |
350x264x107 mm |
Power Supply |
100-240 V AC, 50/60 Hz |
Test Frequency |
200 kHz |
Type of Product |
LCR Meter |
Resistance |
Source: 30 Ω, 50 Ω, 100 Ω |
Model No |
9653-YS02 |
Accuracy |
Basic: 0.05% |
Name of Manufacturer/Packer/Importer |
INSIZE |
Range |
Auto, Manual, Nominal, 9 Level of Ranges |
Maximum Reading |
Main Parameter: 999999, Secondary Parameter: 999999 |
Comparator |
11- Level Sorting, 9 Level GD, 1 Level NG, 1 Level Aux |

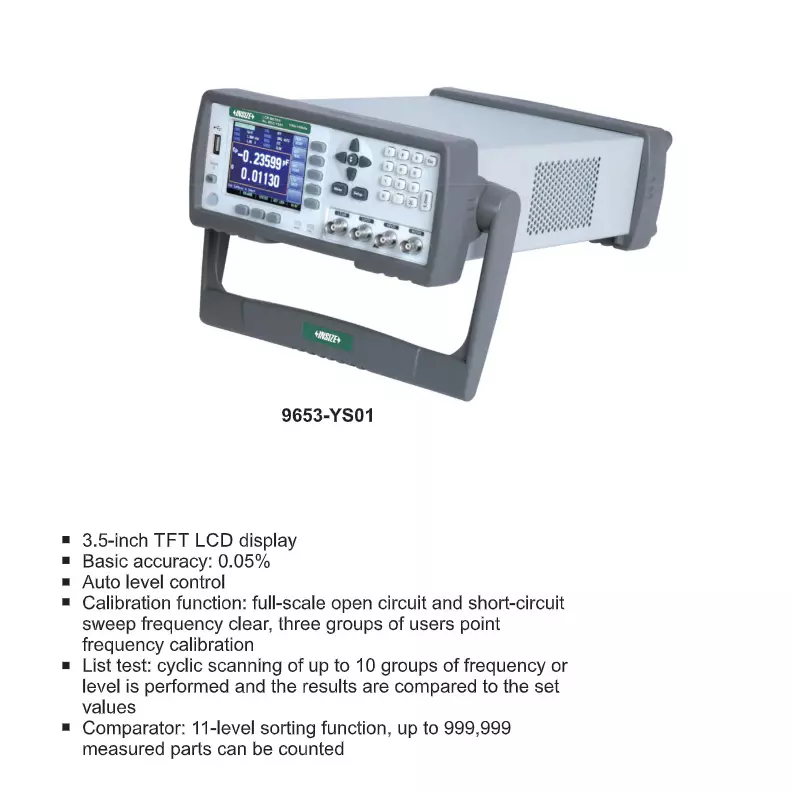

Features |
Calibration function: full-scale open circuit and short-circuit sweep frequency clear, three groups of users point frequency calibration List test: cyclic scanning of up to 10 groups of frequency or level is performed and the results are compared to the set values Comparator: 11-level sorting function, up to 999,999 measured parts can be counted |
Controls Type |
Auto Level |
Test Speed |
Fast: 40 t/s, Medium: 10 t/s, Slow: 3 t/s |
Signal |
Voltage: 10 mV - 2 V, Current: 100 μA - 20 mA |
Data Transmission |
No |
