| Output Impedance | 30 Ω , 100 Ω |
| Weight | 3.5 Kg |
| Interface | RS232C, HANDLER |
| Color | White |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Output Impedance |
30 Ω , 100 Ω |
Weight |
3.5 Kg |
Interface |
RS232C, HANDLER |
Color |
White |
Display Type |
White Backlight LCD display |
Power Supply |
110 ~ 127VAC 10% / 220 ~ 240VAC 10%, 50Hz 2Hz / 60Hz 2Hz |
Application |
Industrial |
Voltage |
0.1 V, 0.3 V, 1.0 V Three Typical Test Level |
Frequency |
100Hz ~ 100kHz |
Type of Product |

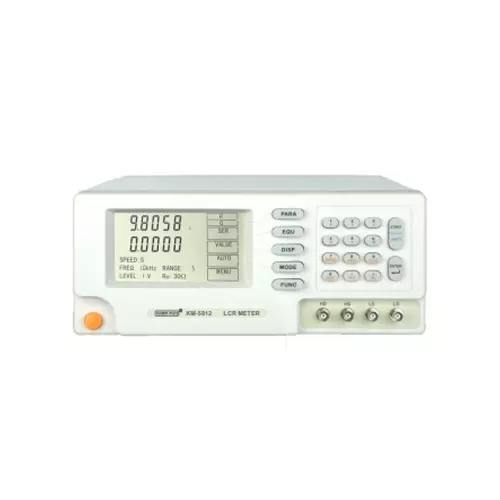

LCR Meter |
Model No |
BR5812 |
Accuracy |
0.001 |
Measuring Ranges |
-99.99%~99.99% |
Dimension (mm) |
320(W) x 140(H) x 360(D) mm |
Display Digit |
5 Digits |
Trigger Mode |
Internal/External, Manual |
Measurement Speed |
Slow: 2, Medium: 8, Fast: 16 |
Voltage Rating |
110-127 V(AC) ±10% , 220-240 V(AC) ±10% |
Special Features |
Three test levels |
Type |
Bench Type |
Display Mode |
Direct, ΔABS, Δ% |
