| Basic Accuracy | 0.002 |
| Interface | USB/ RS 232 |
| Country of Origin | India |
| Equivalent Circuits | Series / Parallel |
Basic Accuracy |
0.002 |
Interface |
USB/ RS 232 |
Country of Origin |
India |
Equivalent Circuits |
Series / Parallel |
Inductance |
0.01 μH ~ 9999 H |
Test Frequency |
100 Hz, 120 Hz, 200 Hz, 400 Hz, 800 Hz, 1 KHz, 2 KHz, 4 KHz, 8 KHz, 10 KHz |
Capacitance |
0.01 pF to 9999 μF |
Display |
5 Digit , Dual Display, 89 mm (3.5 inch) TFT Screen |

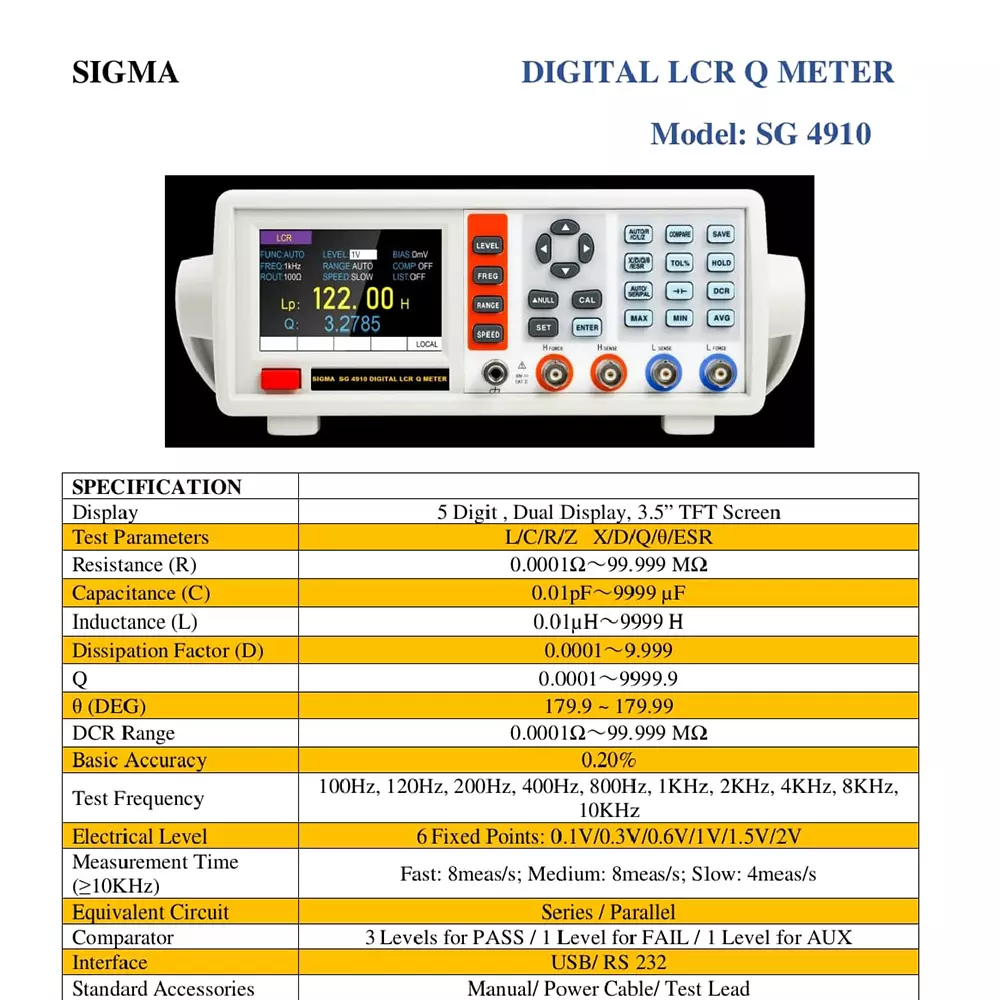

Type of Product |
Digital LCR Q Meter |
Resistance |
0.0001 Ω ~ 99.999 mΩ |
Model No |
SG 4910 |
Included Components |
Manual/ Power Cable/ Test Lead |
Name of Manufacturer/Packer/Importer |
SIGMA |
Test Parameter |
L/C/R/Z X/D/Q/θ/ESR |
Comparator |
3 Levels for PASS / 1 Level for FAIL / 1 Level for AUX |
Dissipation Factor |
0.0001 ~ 9.999 |
DCR Range |
0.0001 Ω ~ 99.999 mΩ |
Electrical Level |
6 Fixed Points: 0.1V/0.3V/0.6V/1V/1.5V/2 V |
