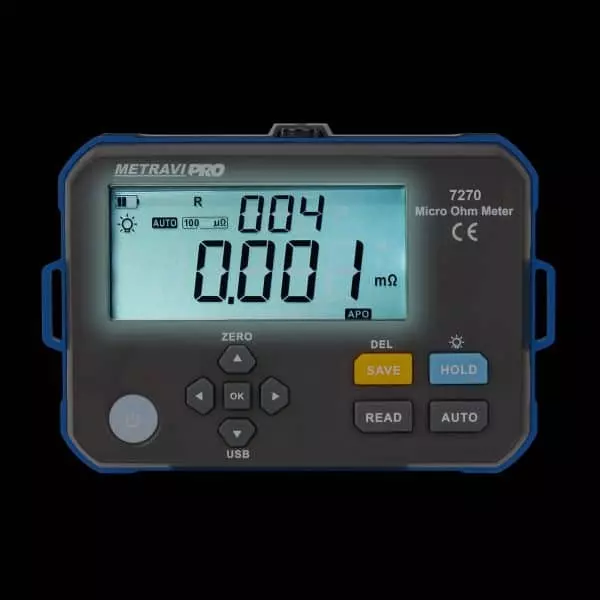

| Type of Product | Micro Ohms Meter |
| Test Current | ≤1 A |
| Measurement Range | 0.001 mΩ - 300.0 kΩ |
| Model No | PRO 7270 |
Type of Product |
Micro Ohms Meter |
Test Current |
≤1 A |
Measurement Range |
0.001 mΩ - 300.0 kΩ |
Model No |
PRO 7270 |
Accuracy |
±(0.1% FS + 20 dgt) (18°C - 28°C , < 75% RH) |
Resolution |
0.001 mΩ - 0.1 kΩ |
Package Contains |

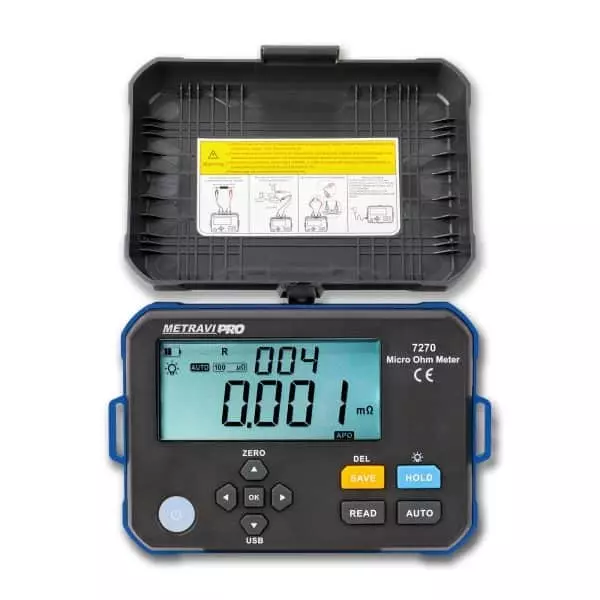

1 x Micro Ohms Meter, Carrying Case, Straps, USB C-type Cable, Test Leads 2 pcs (Red × 1, Black × 1), Charger, User Manual |
Interface |
USB C-type |
Display Type |
102×50 mm (Length × Width) Backlit LCD |
Color |
Blue-Grey |
Sampling time |
About 2 times/s |
Application |

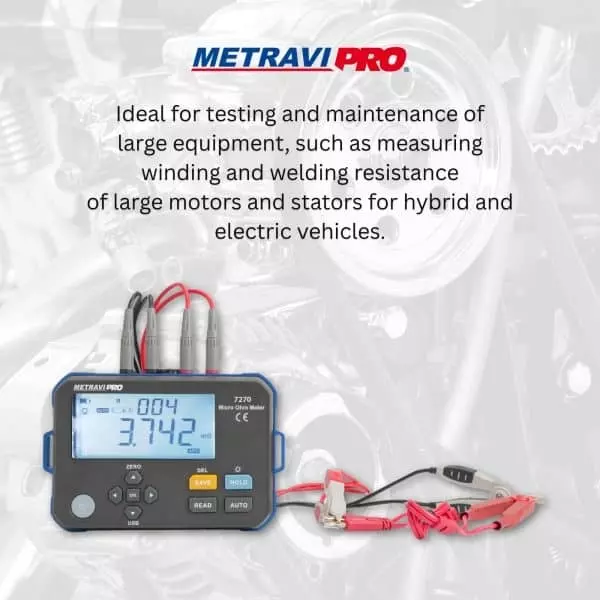

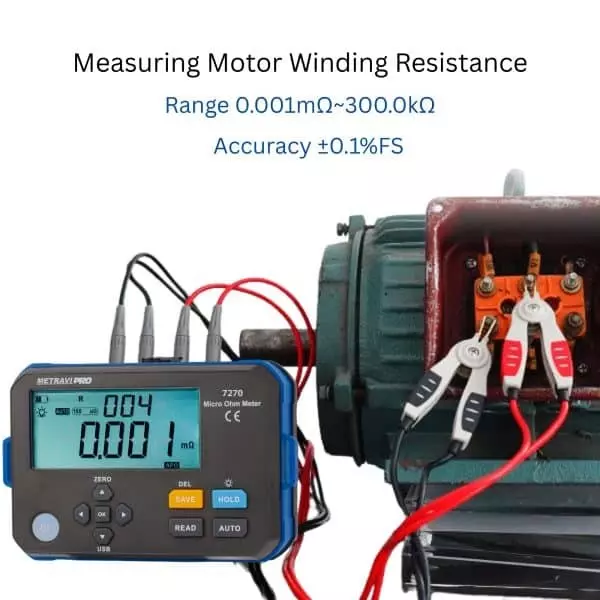

Telecommunications Power Distribution Systems New Energy Vehicles (EV and Hybrids) Petrochemicals Industrial Plant Grounding Systems, etc. |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
METRAVI |
Type |
With Data Logging |
Power Supply |

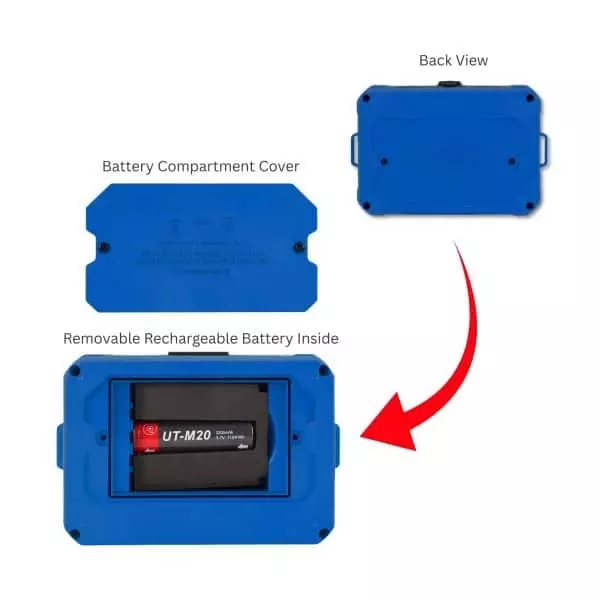

DC 3.7 V 3200 mAh rechargeable Lithium Battery |
Indicator Type |
Over Range Indicator: “OL” is displayed, Battery Power Indication |
Open Circuit Voltage |
≤4.2 V |
Features |
Micro-ohm level measurement, Resistance measurement range: 0.001mΩ - 300.0KΩ Resolution up to 1μΩ Accuracy can reach ±0.1%FS Measurement current ≤ 1A Data Logging for 500 groups Large LCD display Automatic shutdown, longer standby time Lithium battery can be used repeatedly Compact design, easy to carry and operate |
Warranty Details |
1 Year Against Manufacturing Defects |
Warranty Duration |
1 Year |
Data Logging |
499 Groups |
Auto Shutoff |
Yes |
Testing Method |

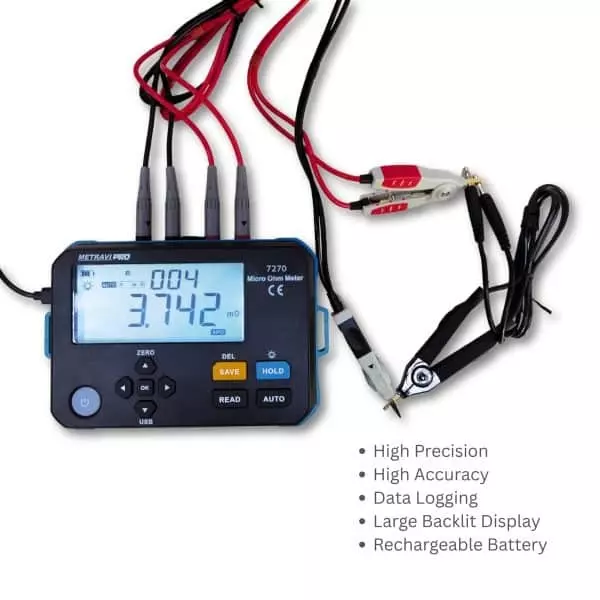

4-Wire Method |
