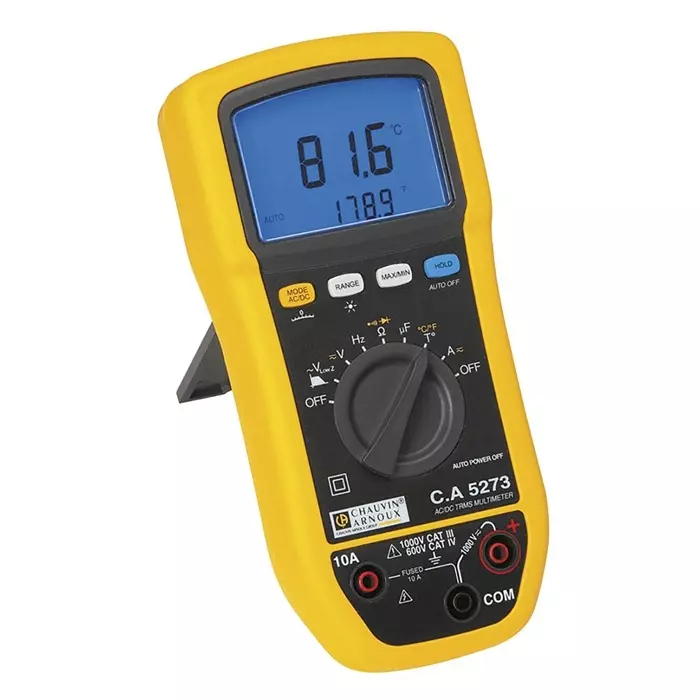

CHAUVIN ARNOUX Handheld Digital Multimeter True RMS 10 A AC 20 A DC 1000 V AC, P01196773

Name: CHAUVIN ARNOUX Handheld Digital Multimeter True RMS 10 A AC 20 A DC 1000 V AC, P01196773
Brand: CHAUVIN ARNOUX
SKU: IND.IND.635024855
Price: 38939 INR
Availability: InStock

Visit the CHAUVIN ARNOUX Store

EMI starts at ₹3460/month. No Cost EMI available.

Available offers

Flat ₹200 off on Order above ₹7,000 | Valid for NEW Business Users

View

Flat ₹100 off on Order above ₹5000 | Valid for NEW Business Users

View

Flat ₹500 off on Order above ₹15000 | Valid for NEW Business Users

View

Flat ₹400 off on Order above ₹10,000 | Valid for REPEAT Business User

View

Features

Type of Product	Handheld Digital Multimeter
Model No	CA 5273
Country of Origin	France
True Rms	Yes

More CHAUVIN ARNOUX Digital Multimeters products More Digital Multimeters products

Warranty as per brand

100% Original Products

Secure payments

100% Buyer protection

Top Brands

specifications

Type of Product	Handheld Digital Multimeter
Model No	CA 5273
Country of Origin	France
True Rms	Yes
Display Type	Digital
Width	90 mm
Height	190 mm
Weight	400 g
Length	45 mm
Battery Type	9 V, IEC 6LR61
Dimension	90 x 45 x 190 mm
Multimeter Type	Handheld
AC Voltage Measurement Resolution	0.1m V AC
Safety Category Voltage	CAT III 1000 V, CAT IV 600V
Maximum Operating Temperature	+50°C
Minimum Operating Temperature	-10°C
Temperature Measurement Accuracy	±0.5 % + 2 °C
Resistance Measurement Accuracy	±1 % + 2 Digits
Manufacturer Part Number	P01196773
Resistance Measurement Resolution	100mΩ
Name of Manufacturer/Packer/Importer	RS Components & Controls (I) Ltd
Absolute Maximum Temperature Measurement	+1200°C
Functions Measured	AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Low Impedance Voltage, Resistance, Temperature
Safety Category Levels	CAT III, CAT IV
Absolute Maximum Resistance Measurement	60mΩ
Maximum Frequency	50kHz
Temperature Measurement Resolution	0.1°C
DC Current Measurement Resolution	0.001 A DC
AC Current Measurement Resolution	0.001 A AC
Capacitance Measurement Resolution	1pF
Absolute Maximum Capacitance Measurement	60mF
Best DC Current Accuracy	±0.8 % + 3 digits
Absolute Maximum DC Voltage Measurement	1000 V DC
Absolute Maximum AC Voltage Measurement	1000 V AC
Best AC Voltage Accuracy	±1.2 % + 3 digits
Best DC Voltage Accuracy	0.2% + 2 cts
Best AC Current Accuracy	±1.2 % + 3 digits
Absolute Maximum AC Current Measurement	10 A AC
Absolute Maximum DC Current Measurement	20 A DC
Voltage Measurement Resolution	0.1 mV (DC)
Best Capacitance Measurement Accuracy	±1 % + 5 digits
