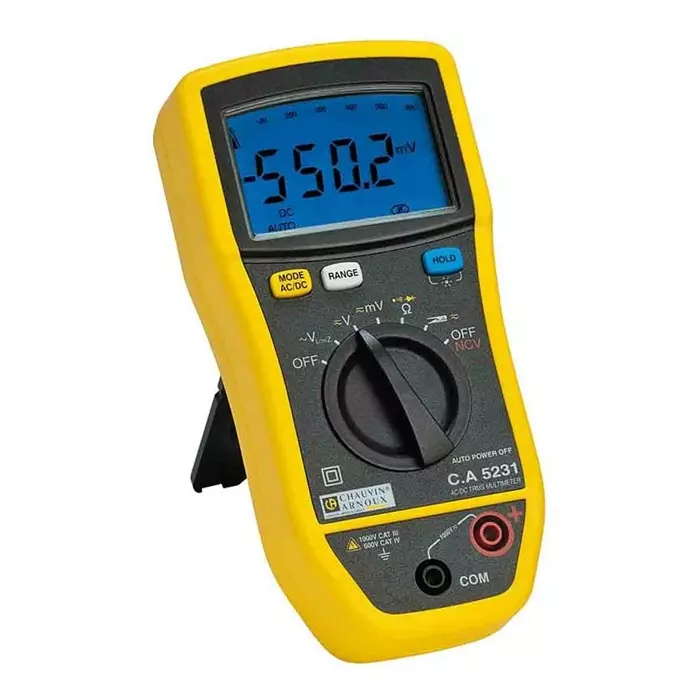

| Type of Product | Handheld Digital Multimeter |
| Model No | CA 5231 |
| Country of Origin | China |
| Display Type | Digital |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Handheld Digital Multimeter |
Model No |
CA 5231 |
Country of Origin |
China |
Display Type |
Digital |
Width |
75 mm |
Height |
155 mm |
Weight |
320 g |
Length |
75 mm |
Battery Type |
9 V, IEC 6LR61 |
Dimension |
155 x 75 x 75 mm |
Multimeter Type |
Handheld |
AC Voltage Measurement Resolution |
0.01m V AC |
Safety Category Voltage |
CAT III 1000 V, CAT IV 600V |
Maximum Operating Temperature |
+50°C |
Minimum Operating Temperature |
0°C |
Resistance Measurement Accuracy |
±0.3 % + 4 digits |
Manufacturer Part Number |
P01196731 |
Resistance Measurement Resolution |
100mΩ |
Name of Manufacturer/Packer/Importer |
RS Components & Controls (I) Ltd |
Functions Measured |
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, NCV Non contact voltage, Resistance, Temperature |
Safety Category Levels |
CAT III, CAT IV |
Absolute Maximum Resistance Measurement |
60mΩ |
Maximum Frequency |
3kHz |
DC Current Measurement Resolution |
0.1 A DC |
AC Current Measurement Resolution |
0.1 A AC |
Capacitance Measurement Resolution |
10pF |
Best DC Current Accuracy |
±.5 % + 12 digits |
Absolute Maximum DC Voltage Measurement |
1000 V DC |
Absolute Maximum AC Voltage Measurement |
1000 V AC |
Best AC Voltage Accuracy |
± % + 3 digits |
Best DC Voltage Accuracy |
±0.2 % + 2 digits |
Best AC Current Accuracy |
± % + 3 digits |
Absolute Maximum AC Current Measurement |
600 A AC |
Absolute Maximum DC Current Measurement |
600 A DC |
Voltage Measurement Resolution |
0.01 mV (DC) |
Best Capacitance Measurement Accuracy |
±3.5 % + 4 digits |
