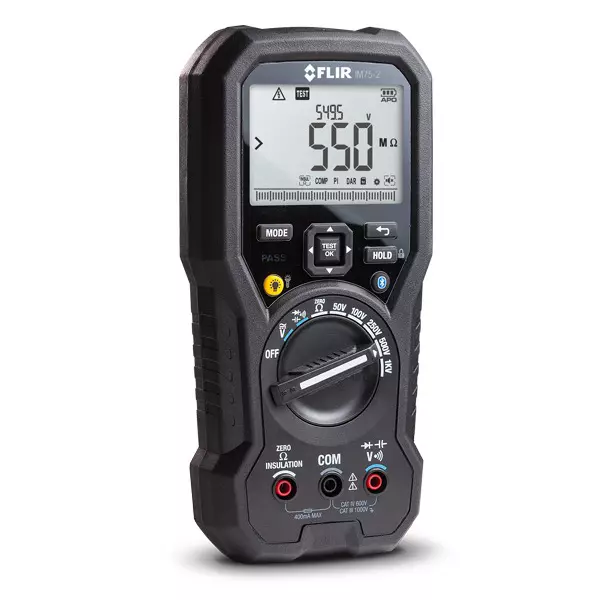

| Type of Product | Insulation Tester and Digital Multimeter |
| Model No | FLIR IM75-2 |
| Country of Origin | India |
| Voltage (AC) | 1000.0 V: 50 Hz to 60 Hz ± (1.5% + 5 digits),, 61 Hz to 500 Hz ± (2.0% + 5 digits) |
Type of Product |
Insulation Tester and Digital Multimeter |
Model No |
FLIR IM75-2 |
Country of Origin |
India |
Voltage (AC) |
1000.0 V: 50 Hz to 60 Hz ± (1.5% + 5 digits),, 61 Hz to 500 Hz ± (2.0% + 5 digits) |
Insulation Resistance |
4.000 MΩ ± (1.5% + 5 digits) 40.00 MΩ ± (1.5% + 5 digits) 400.0 MΩ ± (3.0% + 5 digits) 4000 MΩ ± (3.0% + 5 digits) 4.1 G to 20.0 GΩ ± (10.0% + 3 digits) |
Capacitance |
1000 µF ± (1.2% + 2 digits), 10.00 mF ± (1.2% + 20 digits) |
Power |
6×1.5 V AAA Alkaline Batteries |
Memory |
99 Storage Locations |
Battery Type |
AAA Alkaline Batteries |
Voltage (Dc) |
1000.0 V ± (0.1% + 5 digits) |
Continuity |
400.0 Ω ± (0.5% + 2 digits) |
Included Components |
Magnetic Hanging Strap, Universal Soft Sided Case, Protective Case, CAT IV Insulated, Alligator Probes (TA70) CAT IV Silicone Test Leads (TA80) |
Name of Manufacturer/Packer/Importer |
FLIR |
Bluetooth Range |
10 m |
Insulation Test Voltage |
50 V for max. 50.0 MΩ, 100 V for max 100.0 MΩ, 250 V for max. 250.0 MΩ, 500 V for max. 500.0 MΩ, 1000 V for max.20 GΩ |
